Warning/Caution Labels

A number of caution labels related to the SRS are found in the vehicle, as shown in the following illustrations. Follow label instructions when servicing SRS. The label I is not to be removed except by owner. If the other labels are dirty or damaged, replace them.

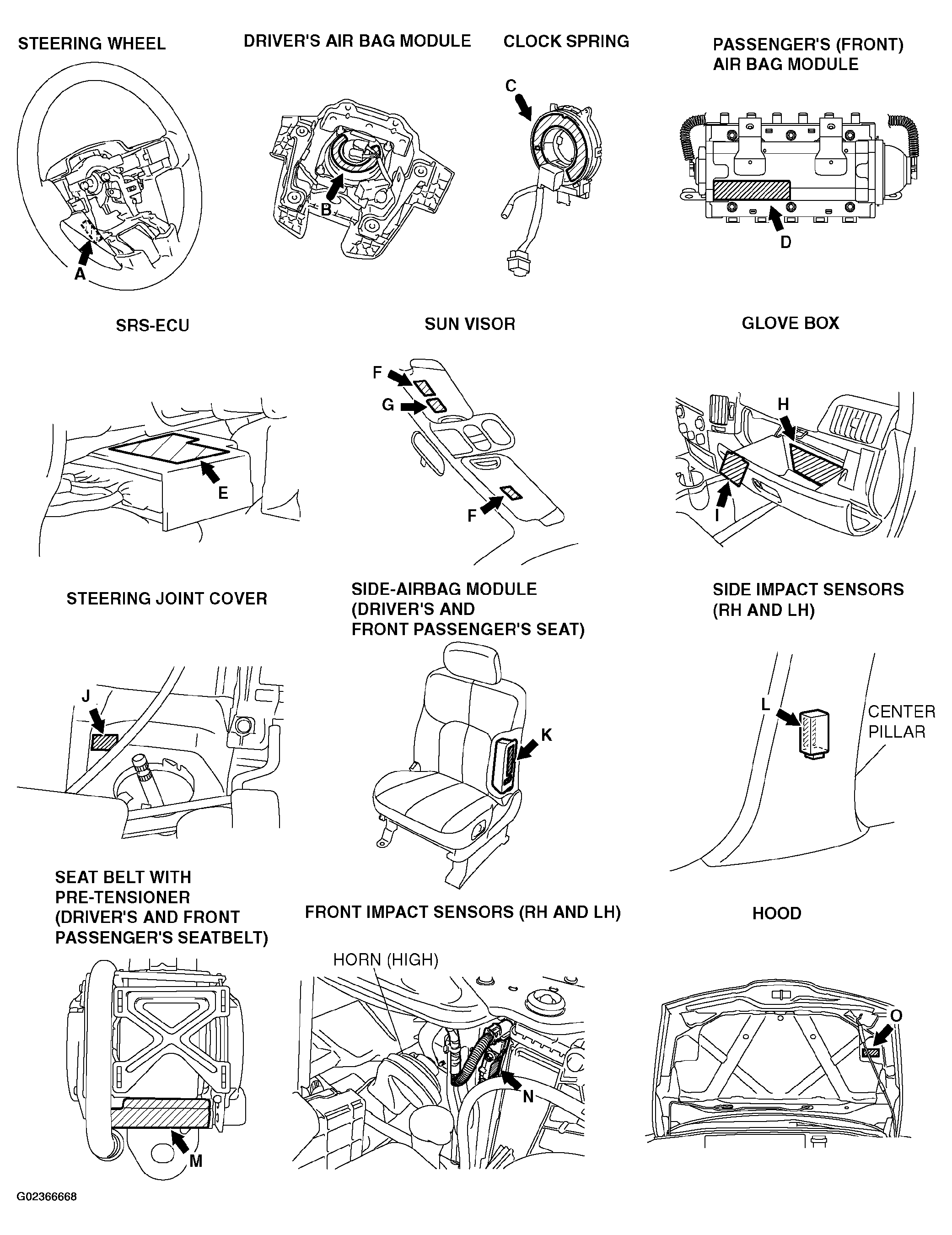

Fig 1: Identifying Warning And Caution Labels

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

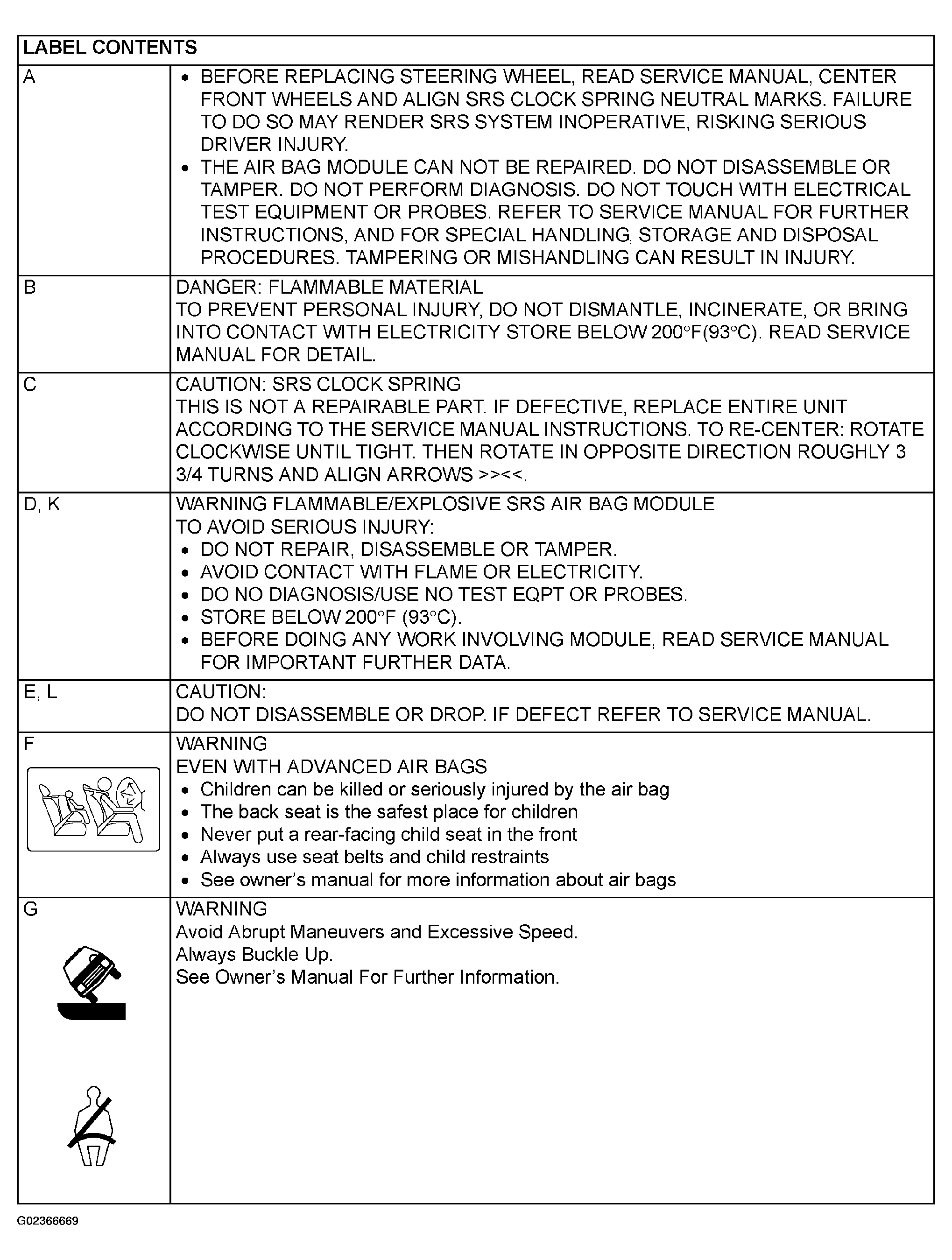

Fig 2: Warning And Caution Labels Description Chart (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

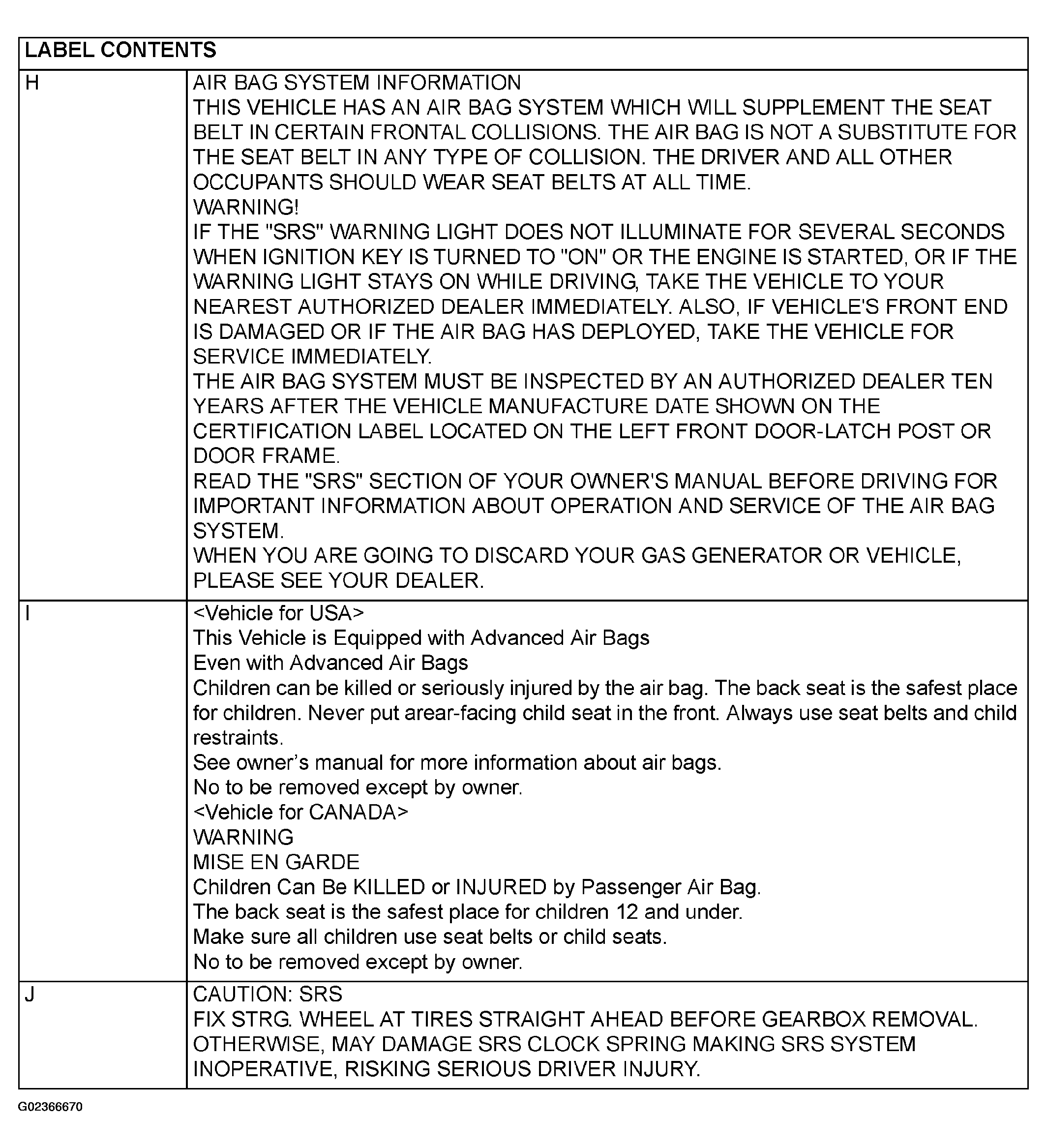

Fig 3: Warning And Caution Labels Description Chart (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

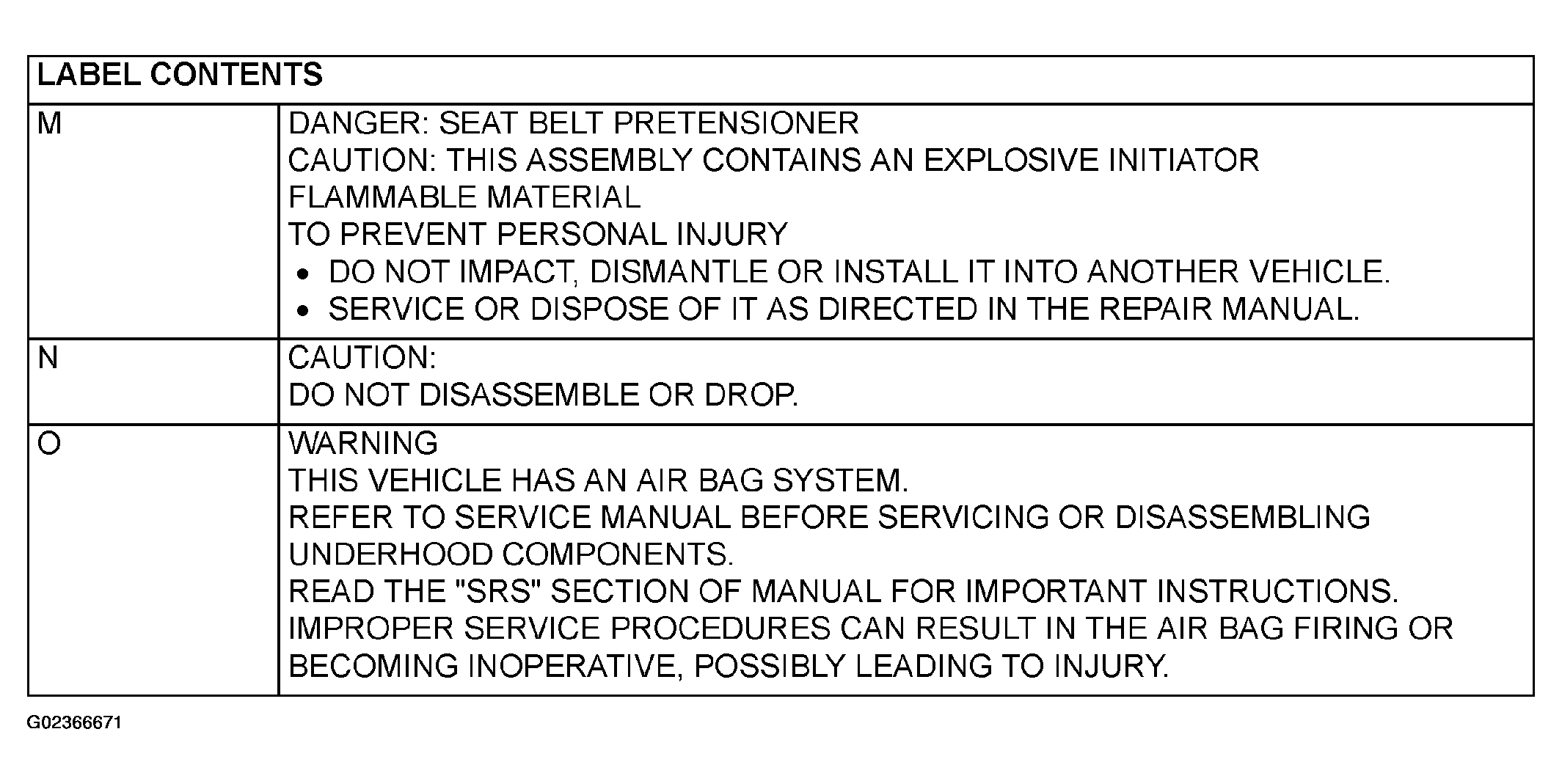

Fig 4: Warning And Caution Labels Description Chart (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
