Home >> Mitsubishi >> 2005 >> Endeavor XLS, FWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Motor Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

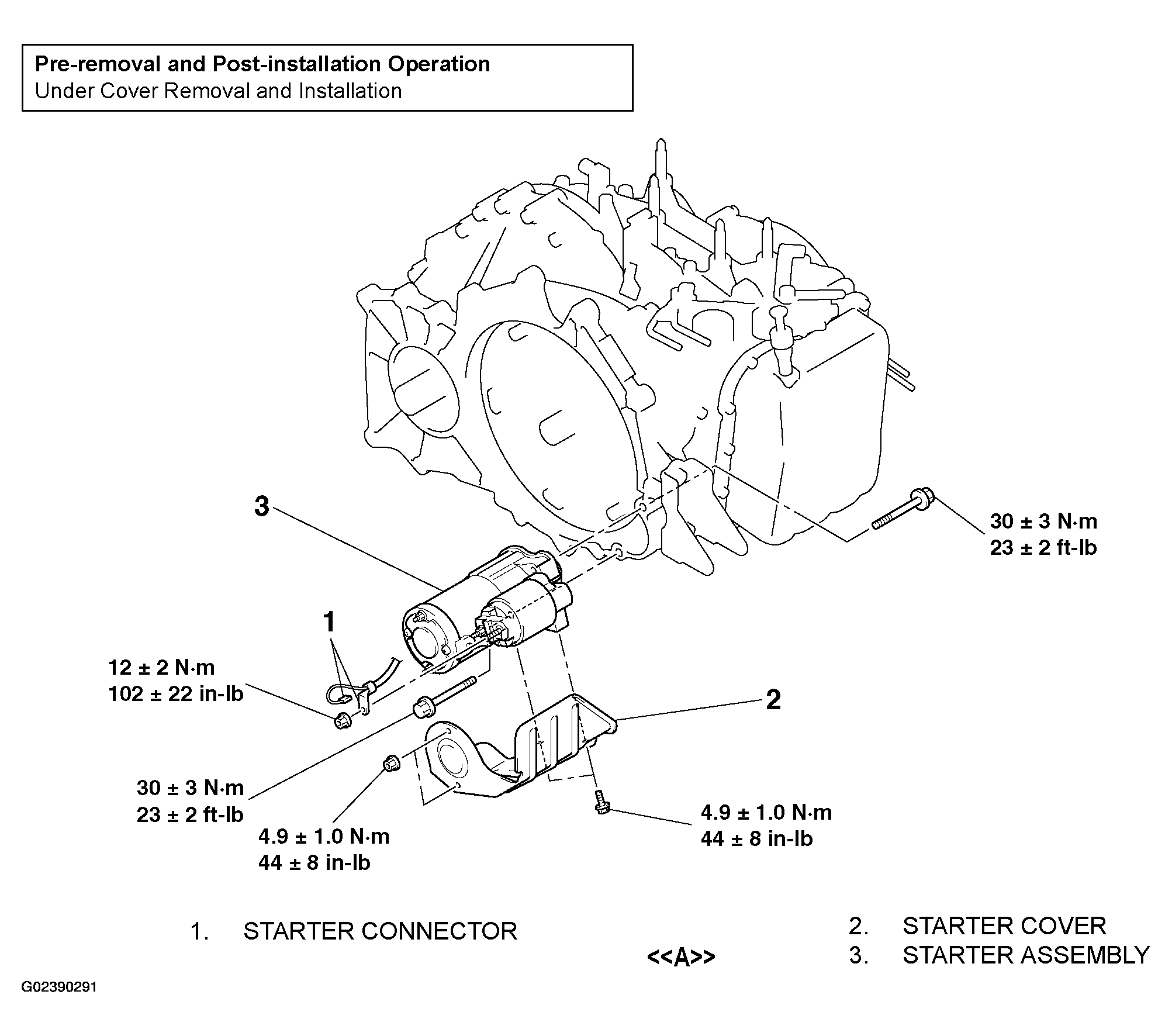

Fig 1: Removing/Installing Starter Motor Assembly

G02390291

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
