TCL/ASC-ECU Connector End View (A-32)

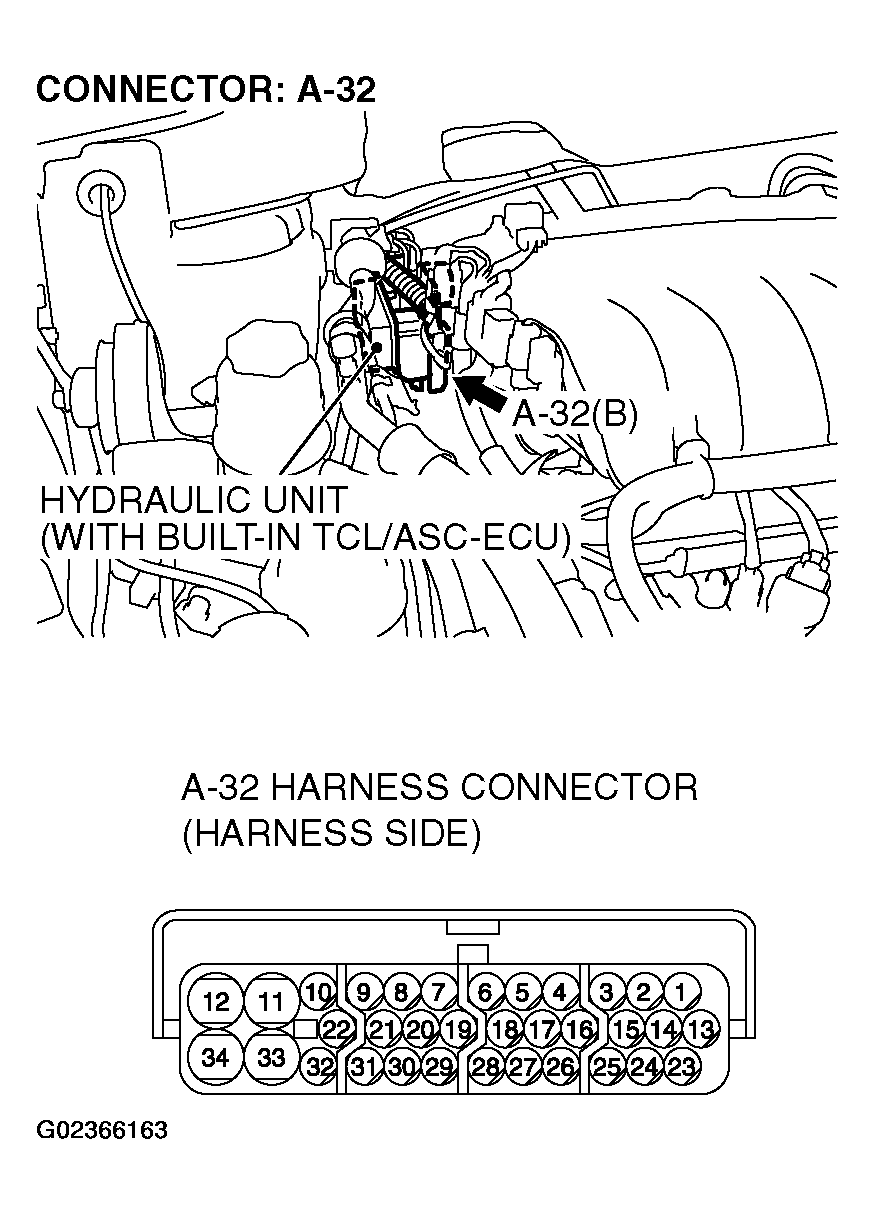

Fig 1: TCL/ASC-ECU Connector End View (A-32)

G02366163

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
