Removal And Installation: Notes

CAUTION:
  • Do not disassemble or throw the liftgate gas spring into fire.
  • Punch a hole in the gas spring before disposal to release the gas inside.
  • Ensure the liftgate gas spring piston rod does not come into contact with foreign material.

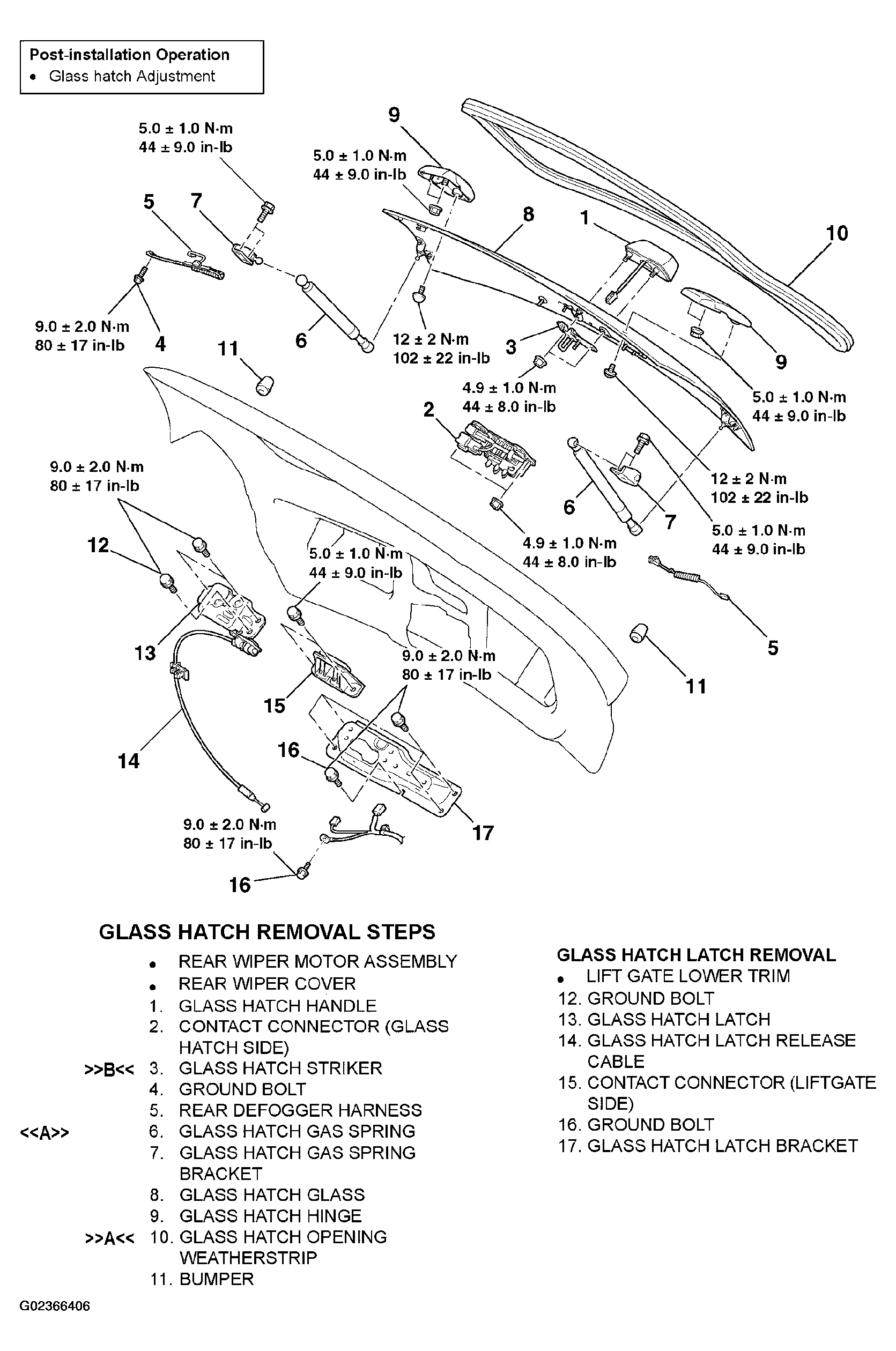

Fig 1: Removing/Installing Glass Hatch
G02366406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
