Removal And Installation: Notes

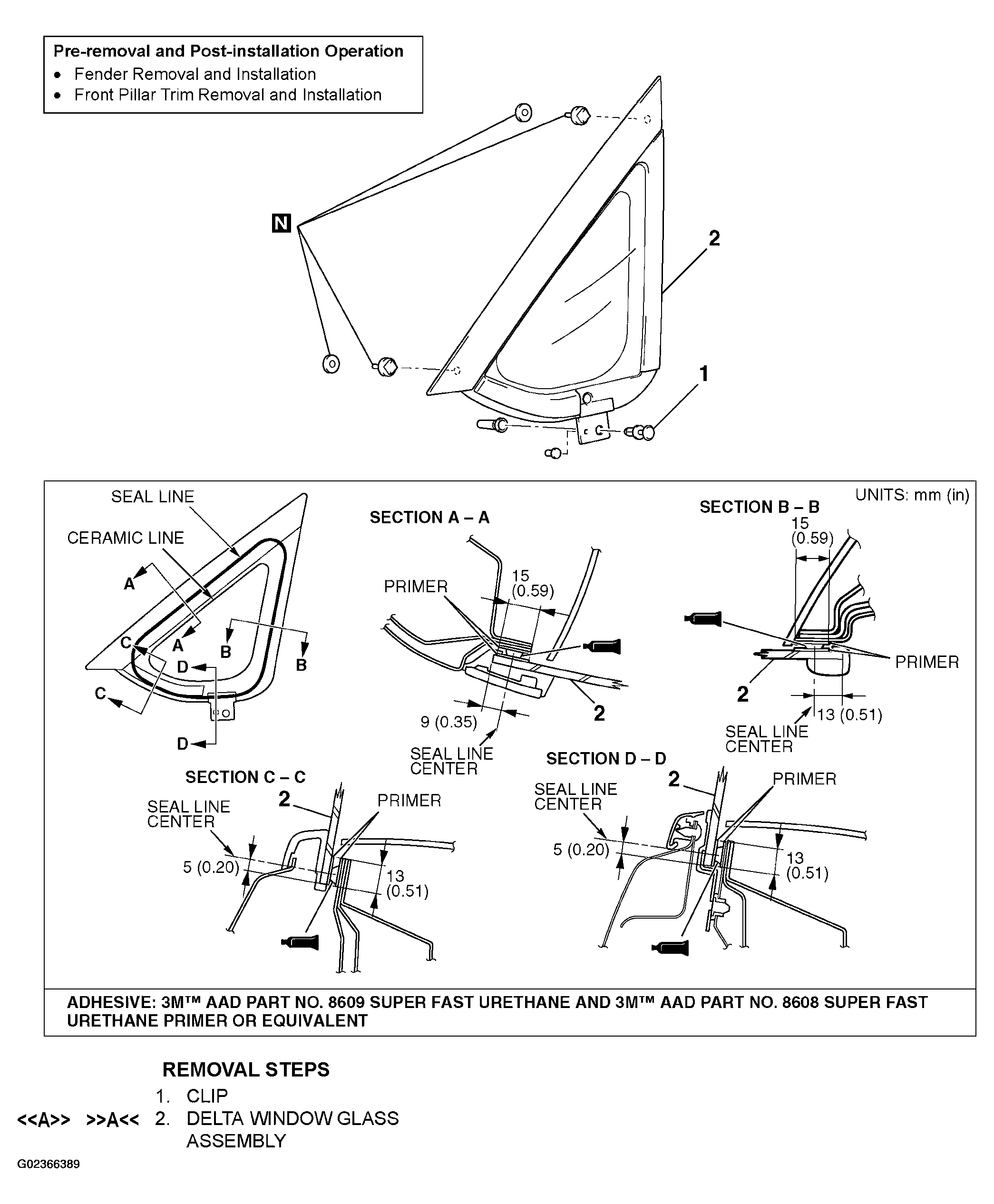

Fig 1: Removing/Installing Delta Window Glass

G02366389

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
