Home >> Mitsubishi >> 2005 >> Endeavor XLS, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Sunroof Assembly >> On-Vehicle Service >> Operation Check >> Basic Operation

Basic Operation

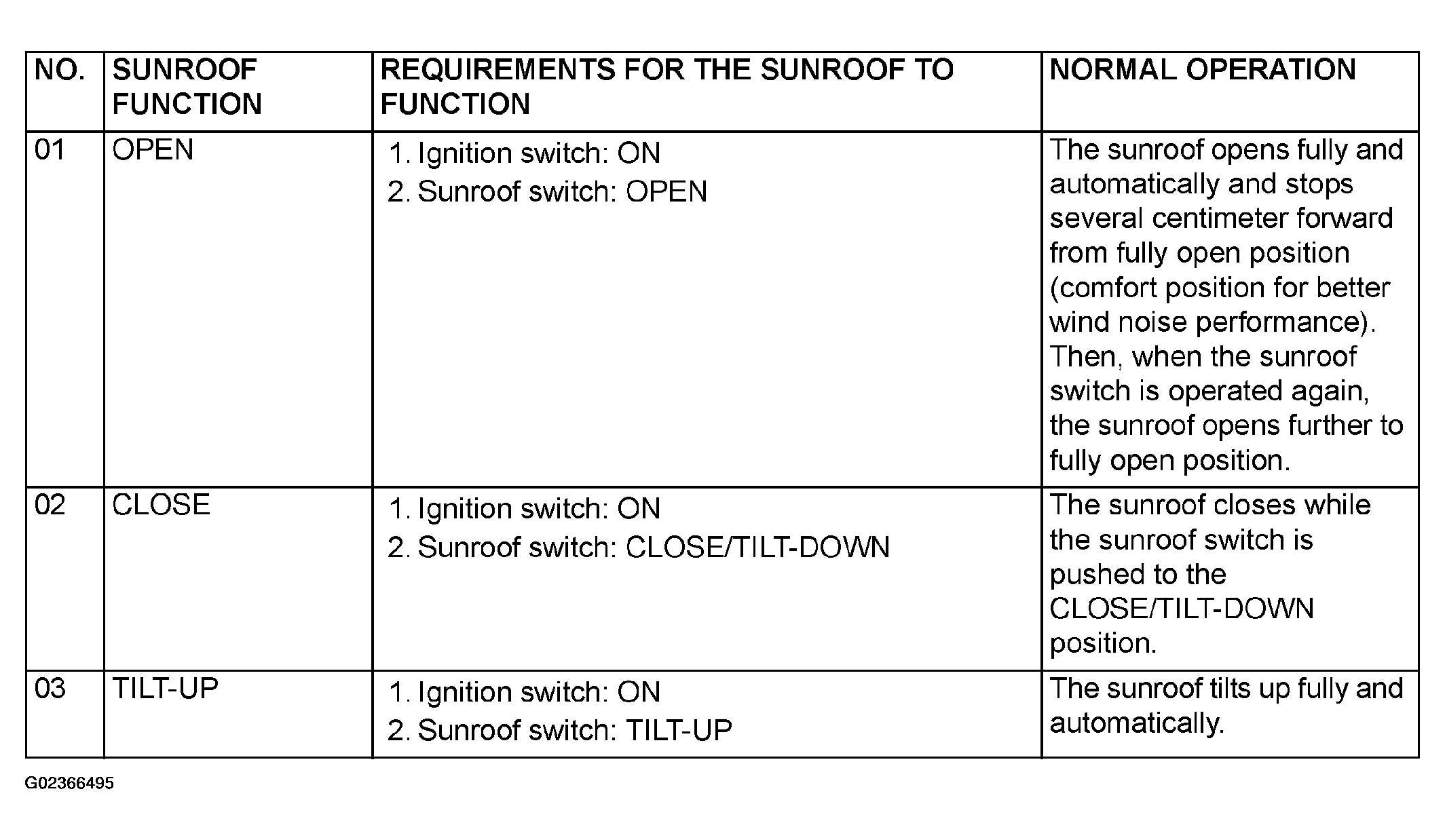

Fig 1: Basic Operation Reference Chart (1 Of 2)
G02366495Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

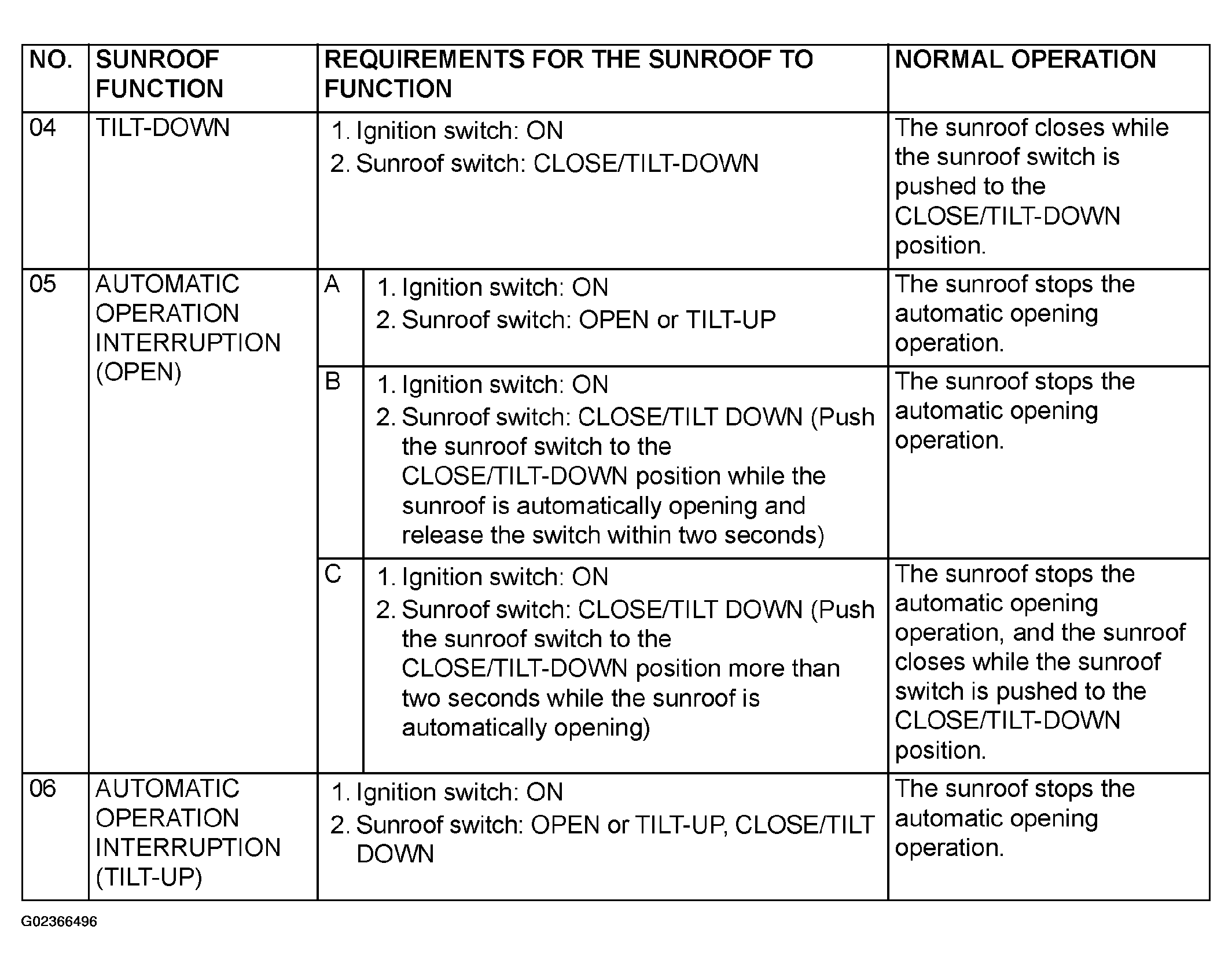

Fig 2: Basic Operation Reference Chart (2 Of 2)
G02366496Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
