Removal And Installation: Notes

CAUTION:

For removal and installation of the passenger's side air bag module, always observe the service procedures described in GROUP 52B, AIR BAG MODULE AND CLOCK SPRING < Vehicles without advanced air bag > or < Vehicles with advanced air bag >.
Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING < Vehicles without advanced air bag > or < Vehicles with advanced air bag > before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

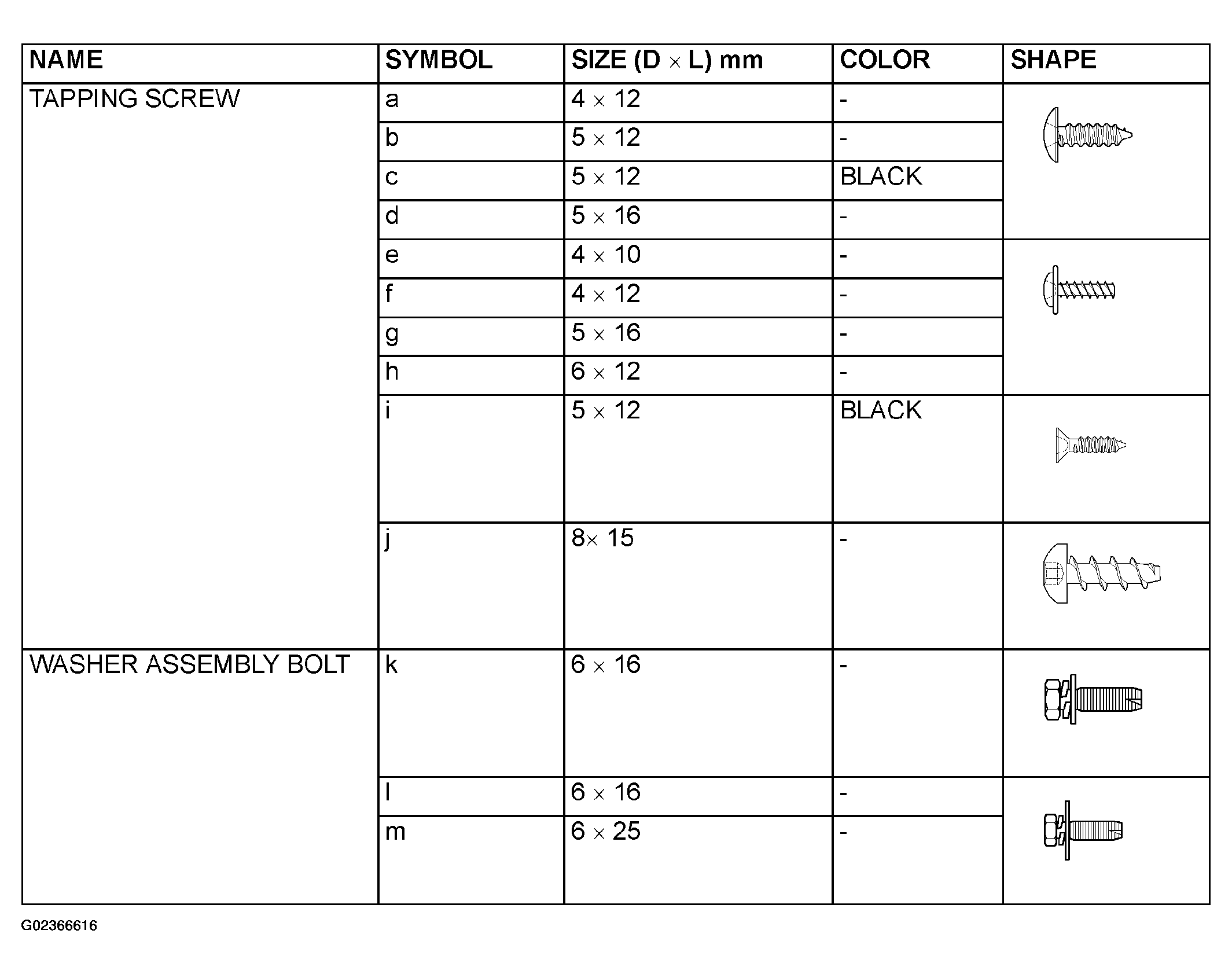

Fig 1: Bolts And Screws Description Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

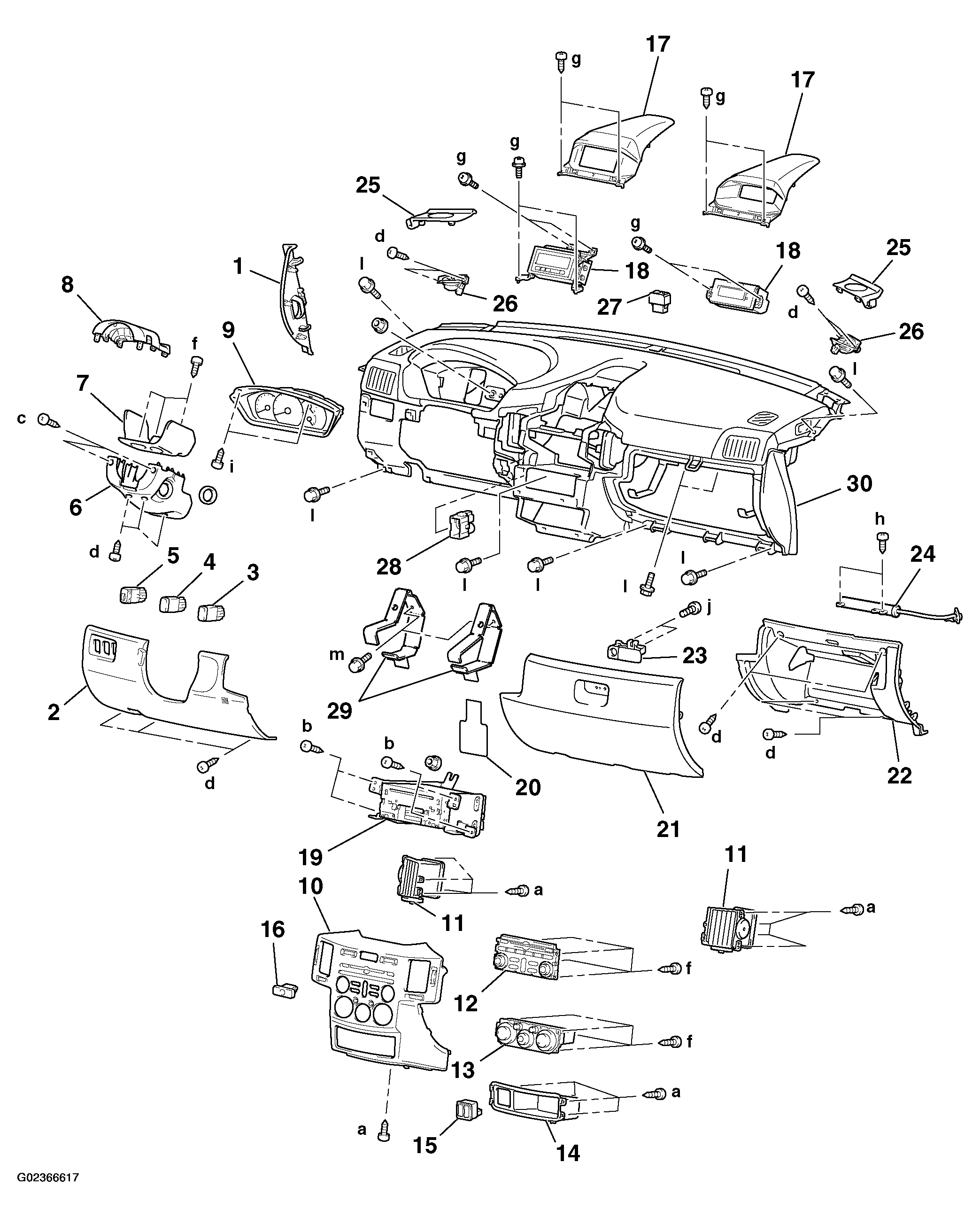

Fig 2: Removing/Installing Instrument Panel Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

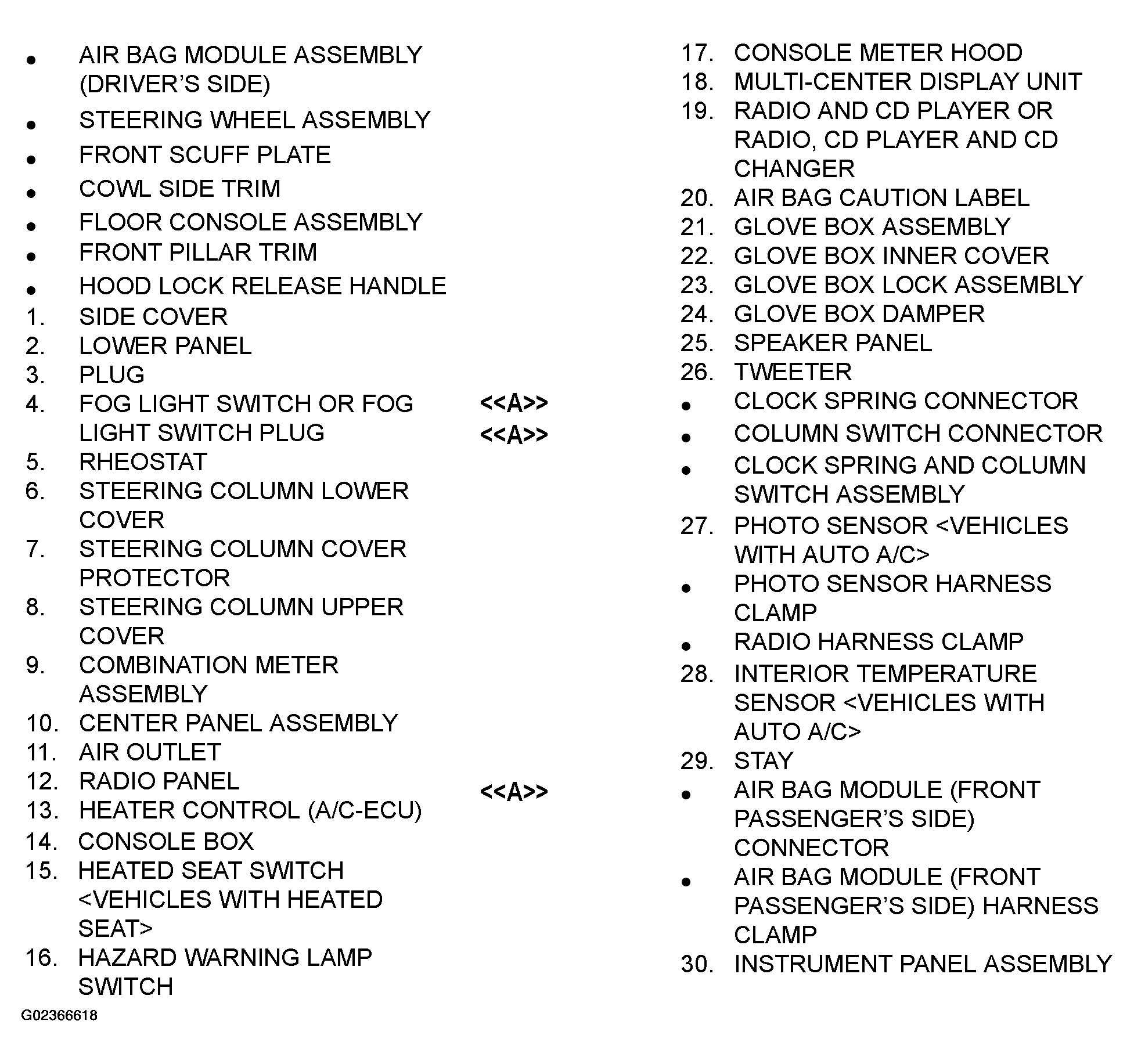

Fig 3: Removing/Installing Instrument Panel Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
