Home
>>
Mitsubishi
>>
2005
>>
Endeavor LS, FWD
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Supplemental Restraint System
>>
Special Tools
Special Tools

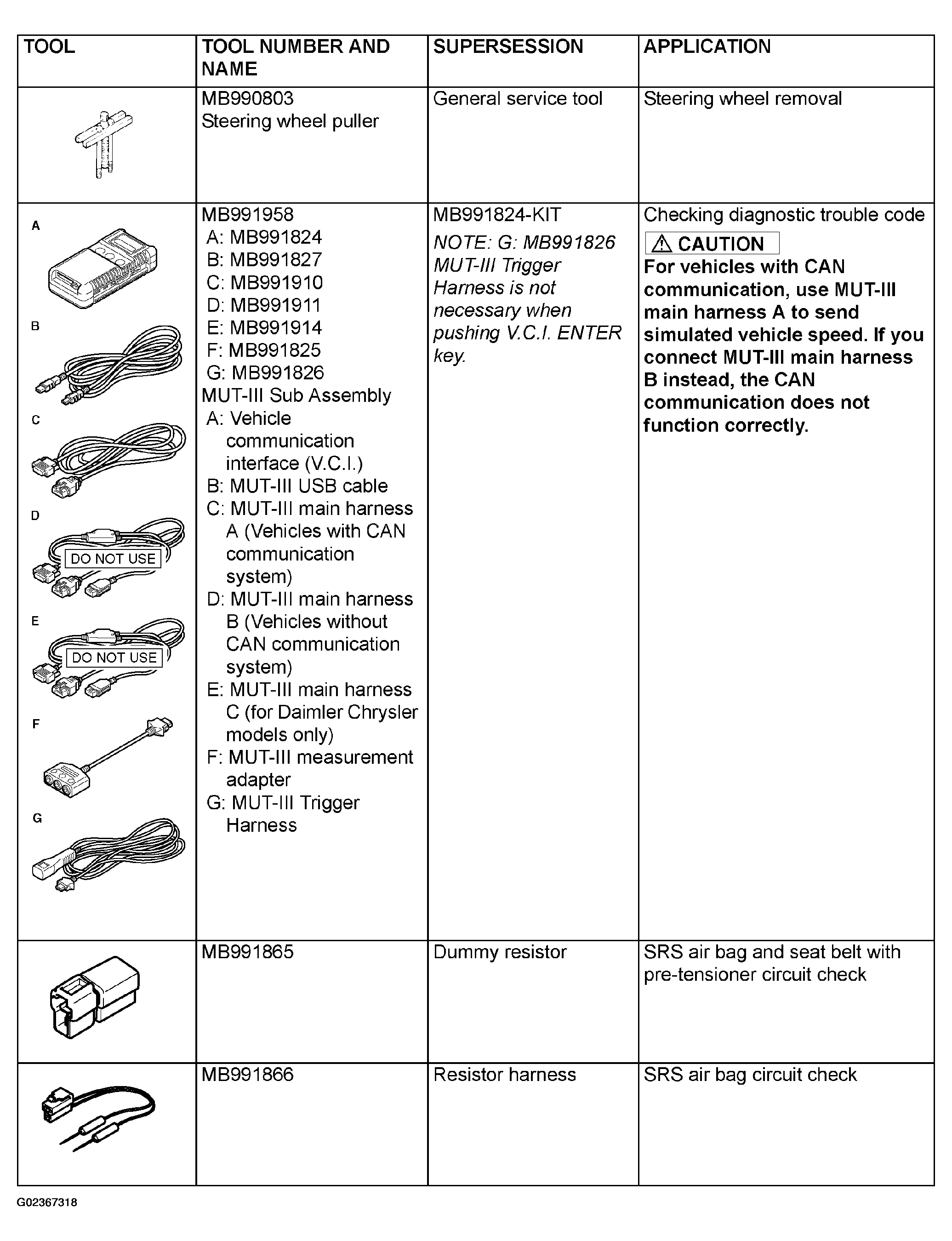

Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

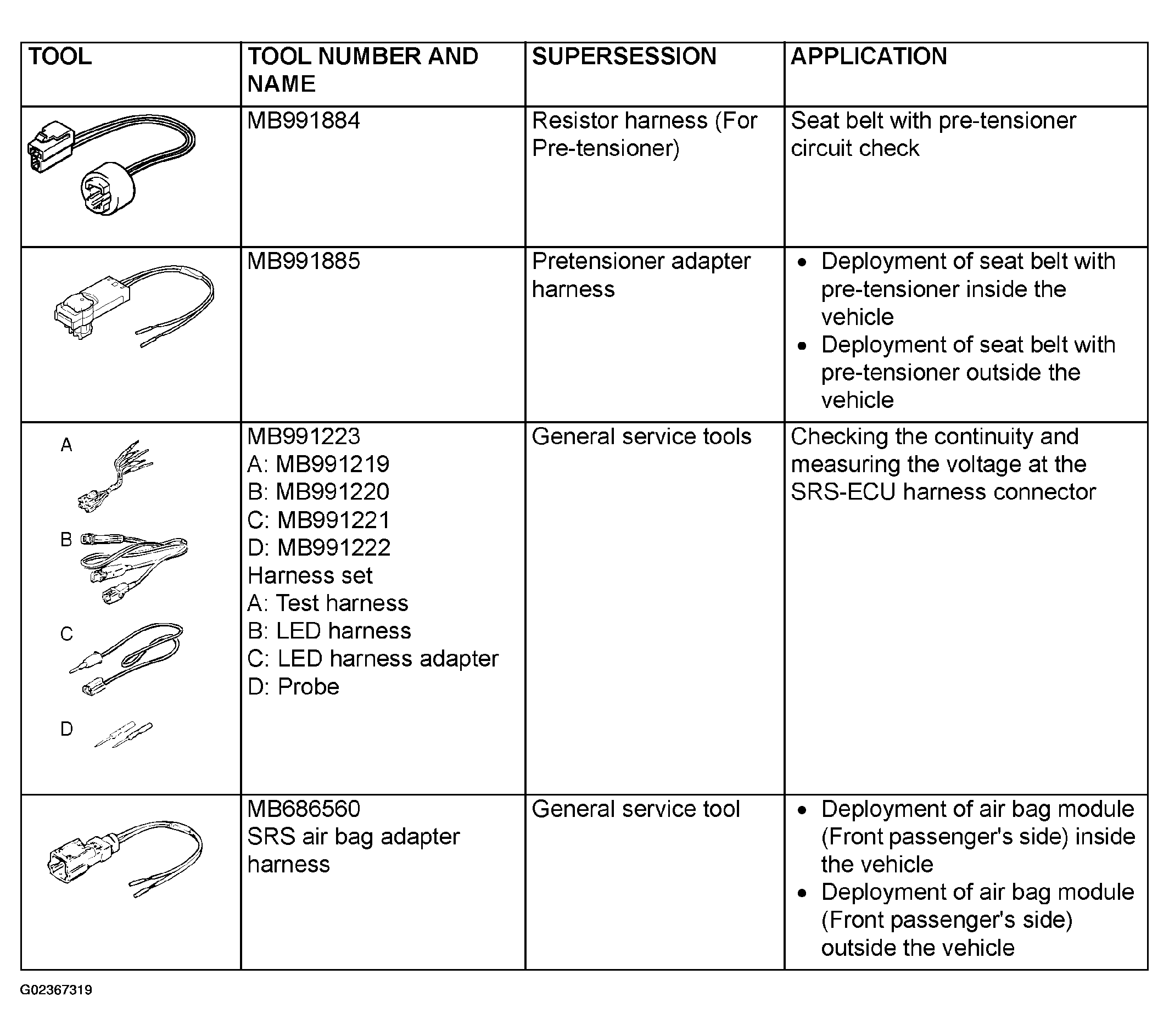

Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
