Emission Control: Diagnosis

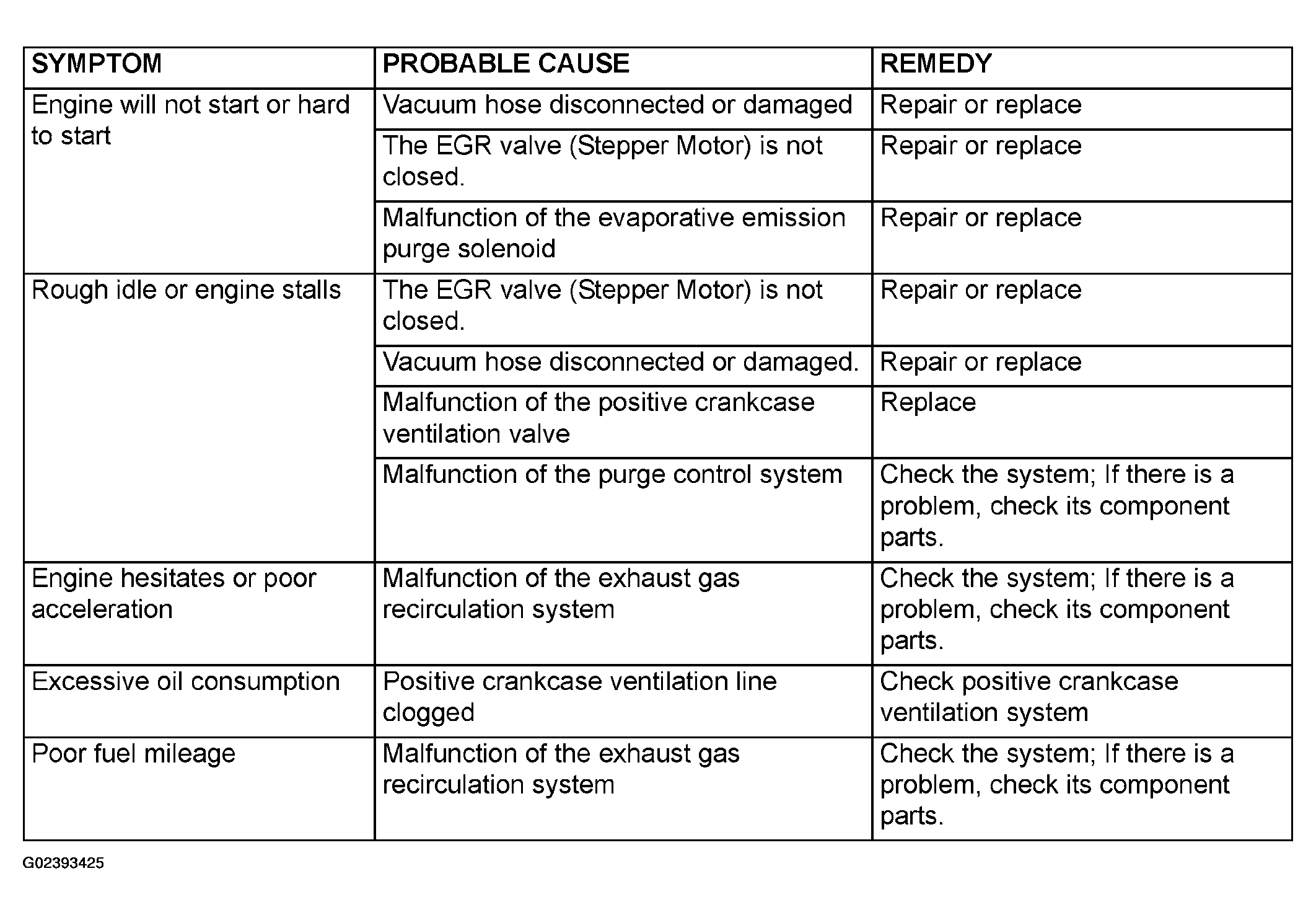

Fig 1: Symptom Chart - Emission Control

G02393425

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
