Removal And Installation: Notes

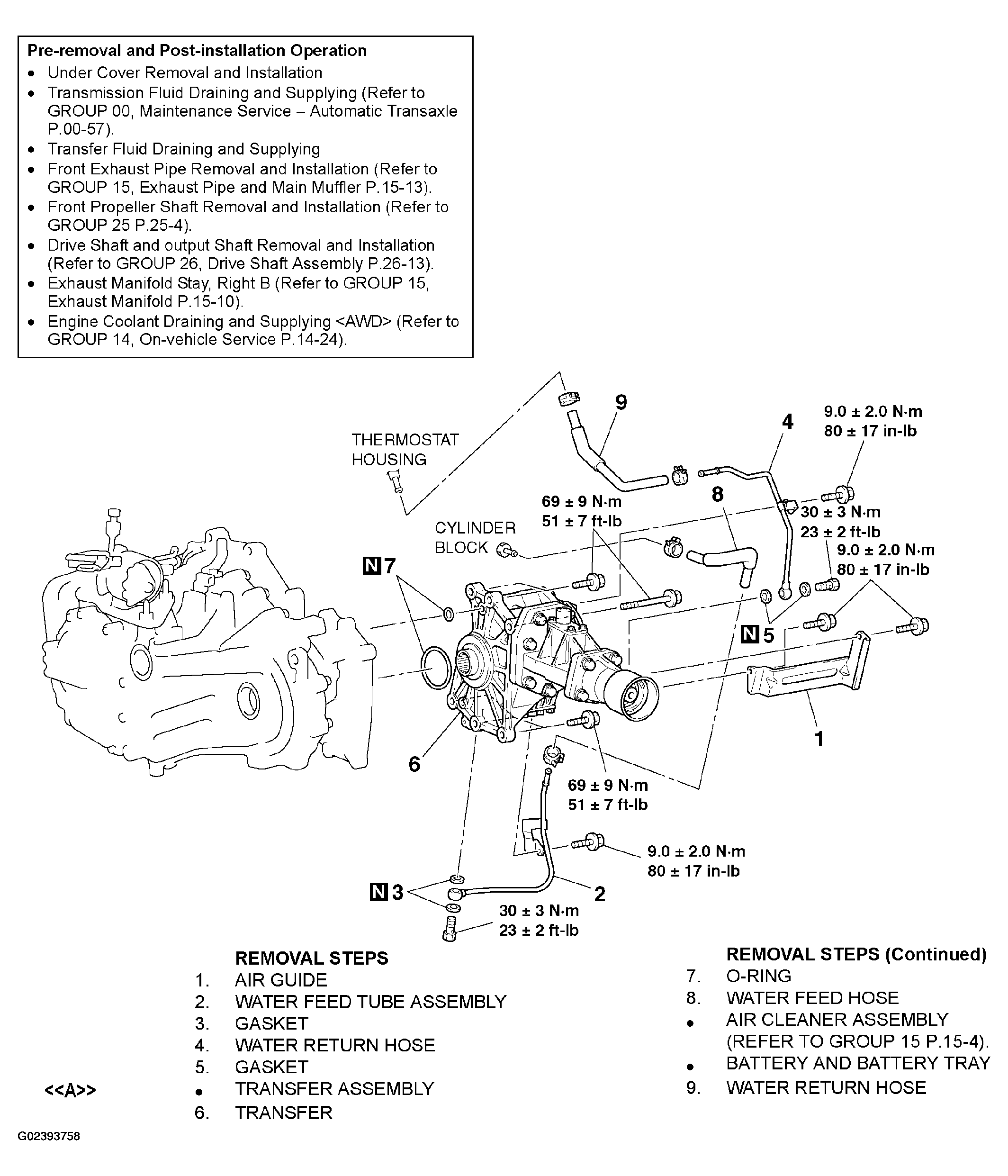

Fig 1: Removing/Installing Transfer Assembly

G02393758

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
