Home
>>
Mitsubishi
>>
2005
>>
Endeavor LS, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Diagnosis
>>
Transaxle Control
>>
Disassembly And Assembly
Disassembly And Assembly

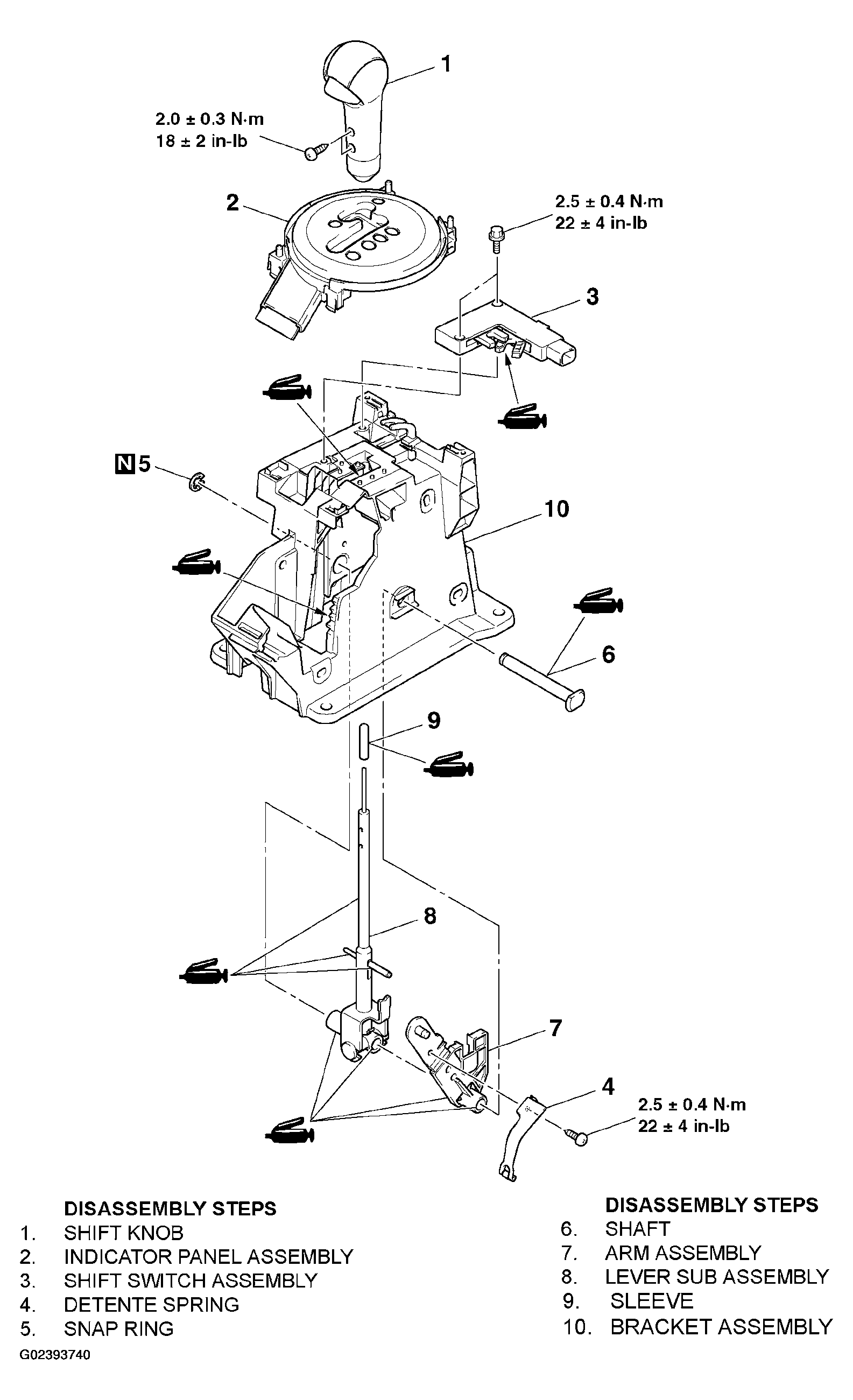

Fig 1: Disassembling/Assembling Selector Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
