Supplemental Restraint System: General Description: Schematic

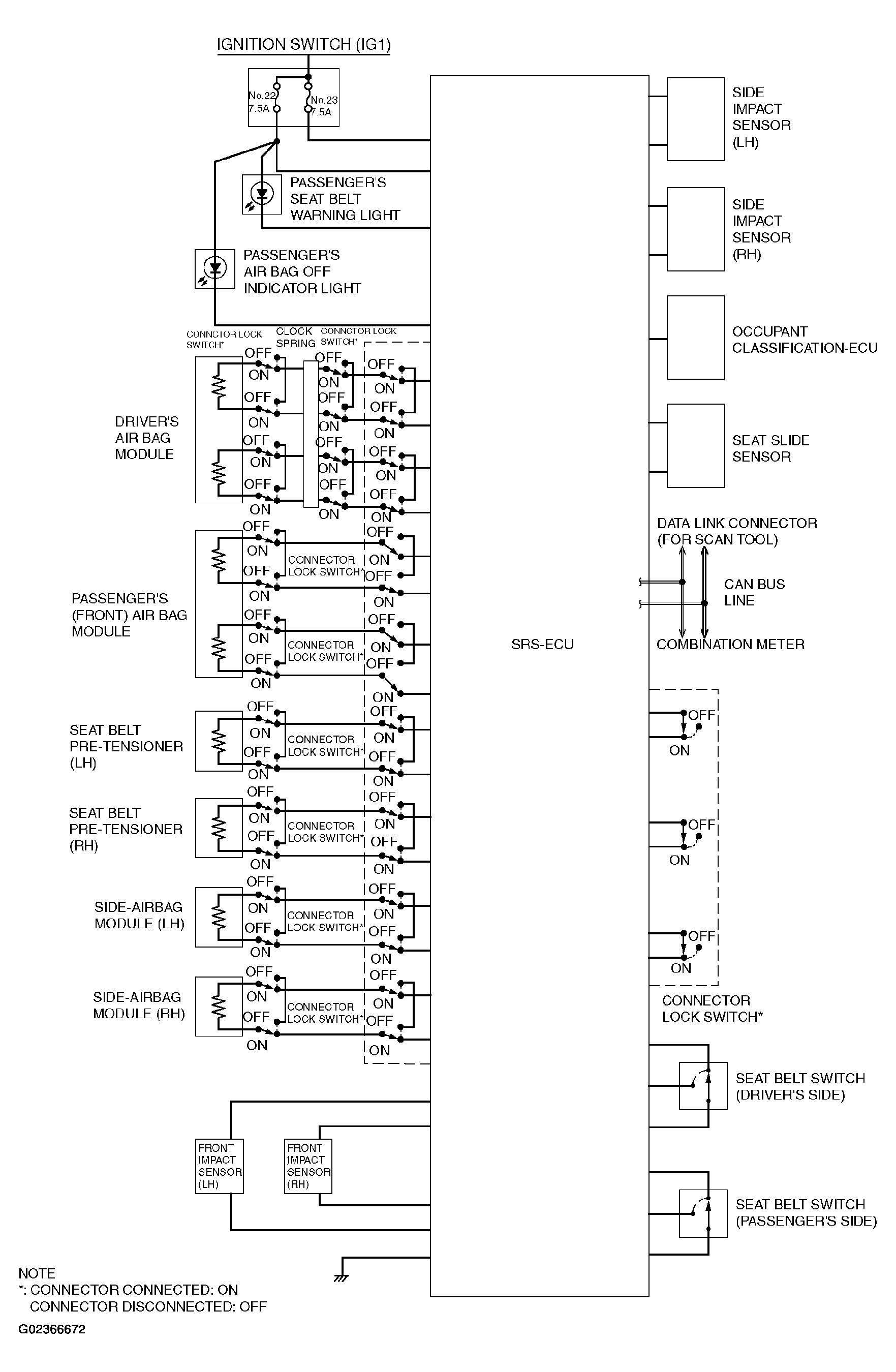

Fig 1: Supplemental Restraint System - Schematic Diagram

G02366672

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
