Removal And Installation

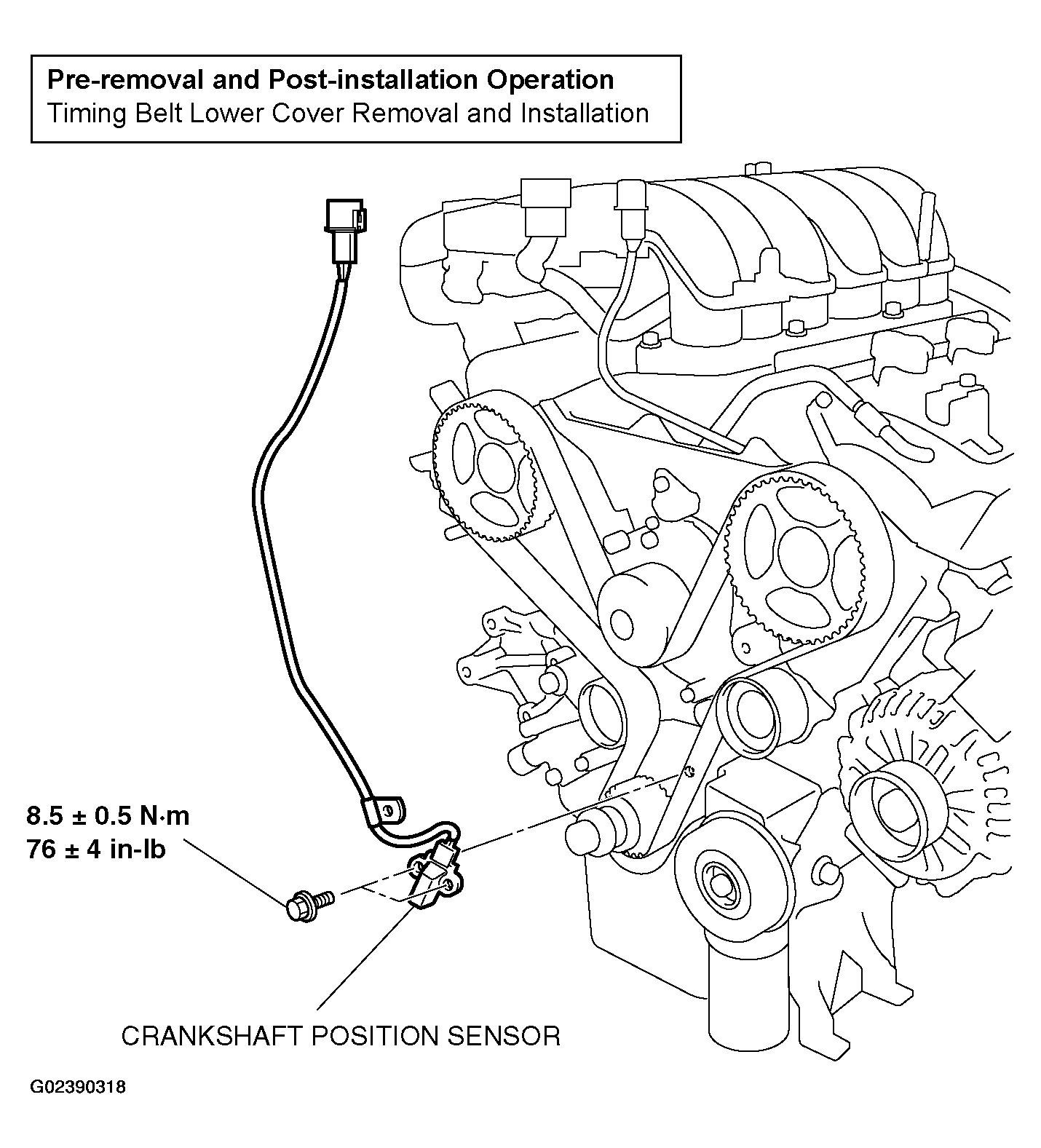

Fig 1: Removing/Installing Crankshaft Position Sensor
G02390318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
