Removal And Installation: Notes

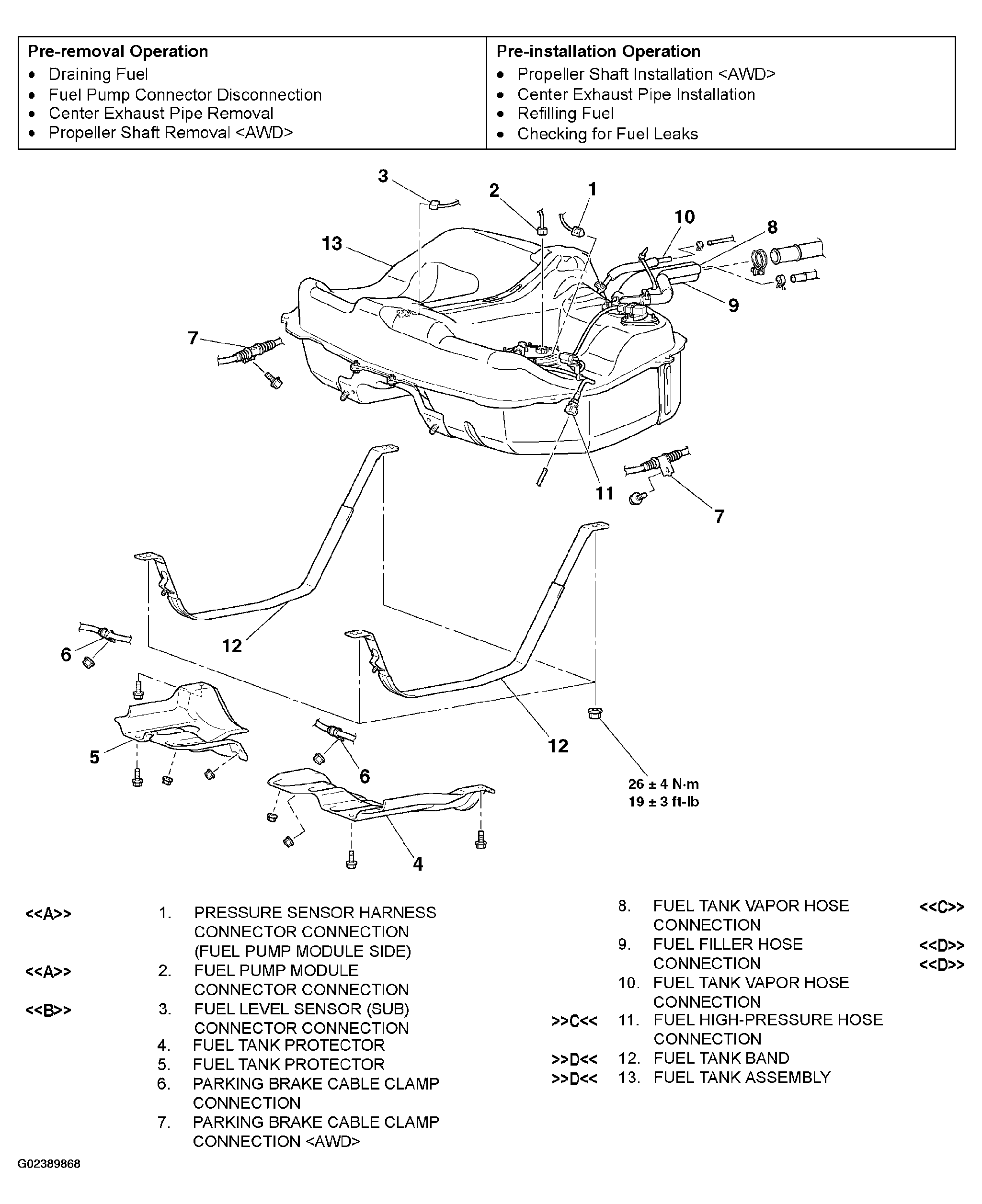

Fig 1: Removing/Installing Fuel Tank Components (1 Of 3)
G02389868Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

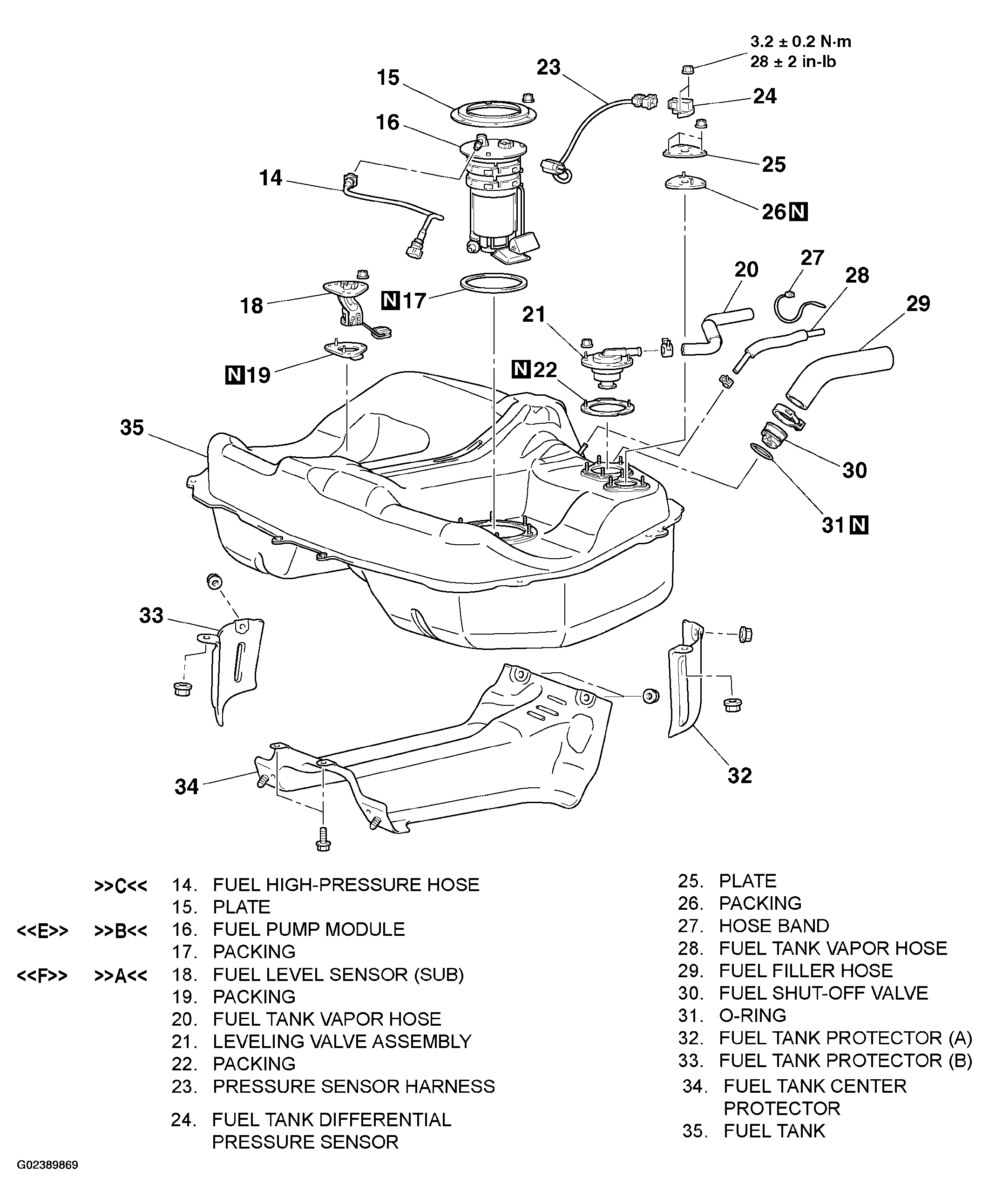

Fig 2: Removing/Installing Fuel Tank Components (2 Of 3)
G02389869Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

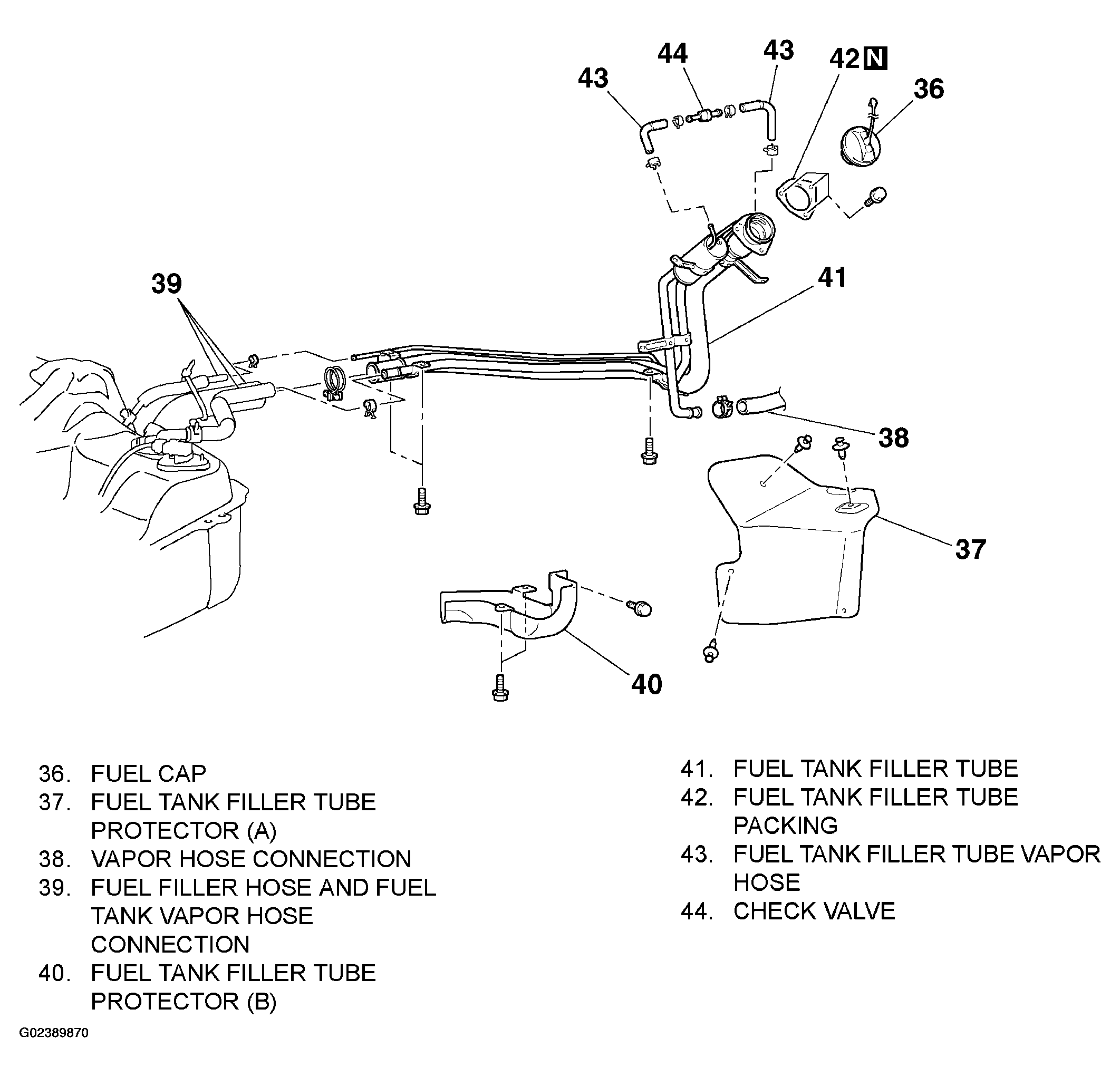

Fig 3: Removing/Installing Fuel Tank Components (3 Of 3)
G02389870Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
