DTC 22: Stoplight Switch System: Notes

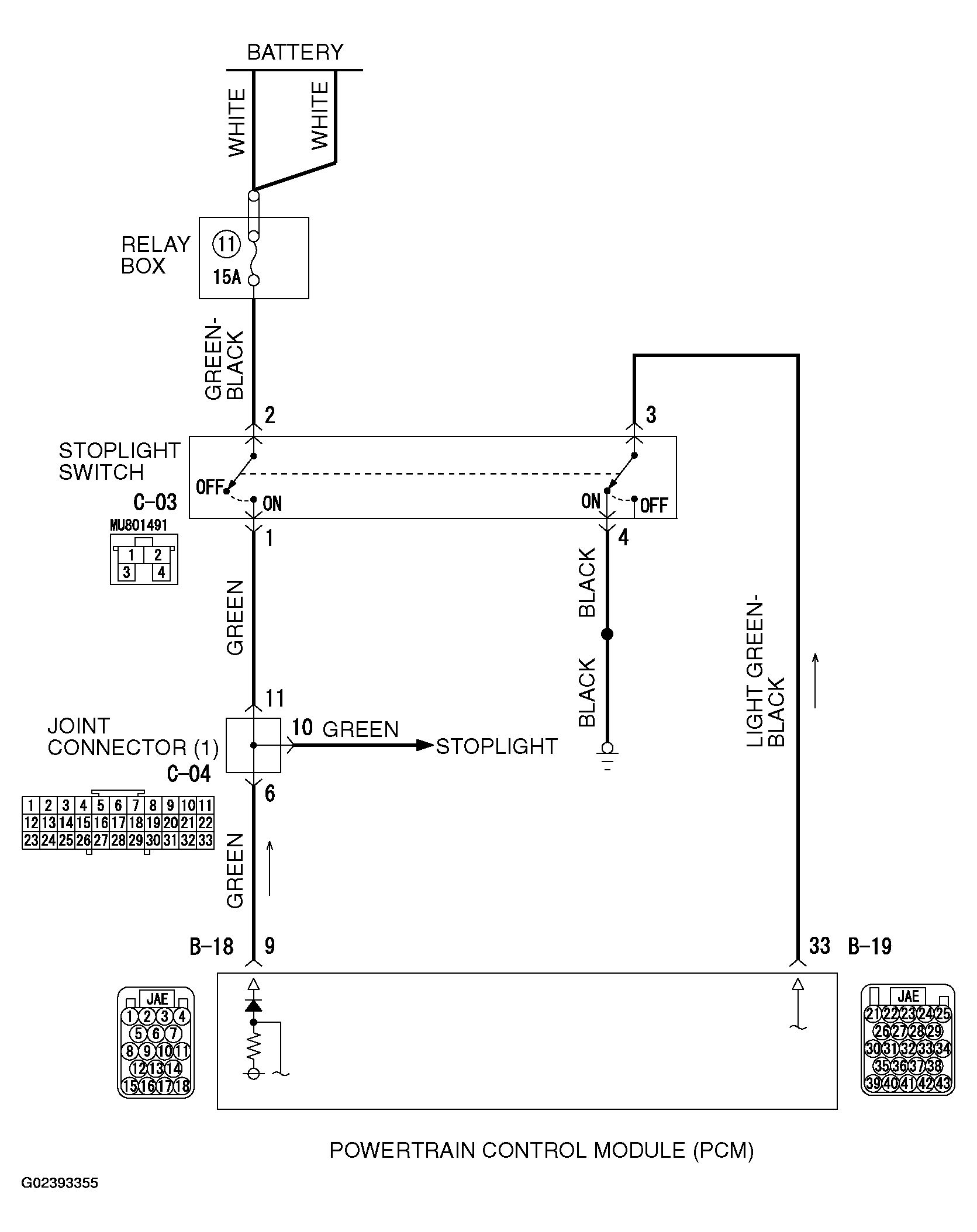

Fig 1: Stoplight Switch System Circuit
G02393355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

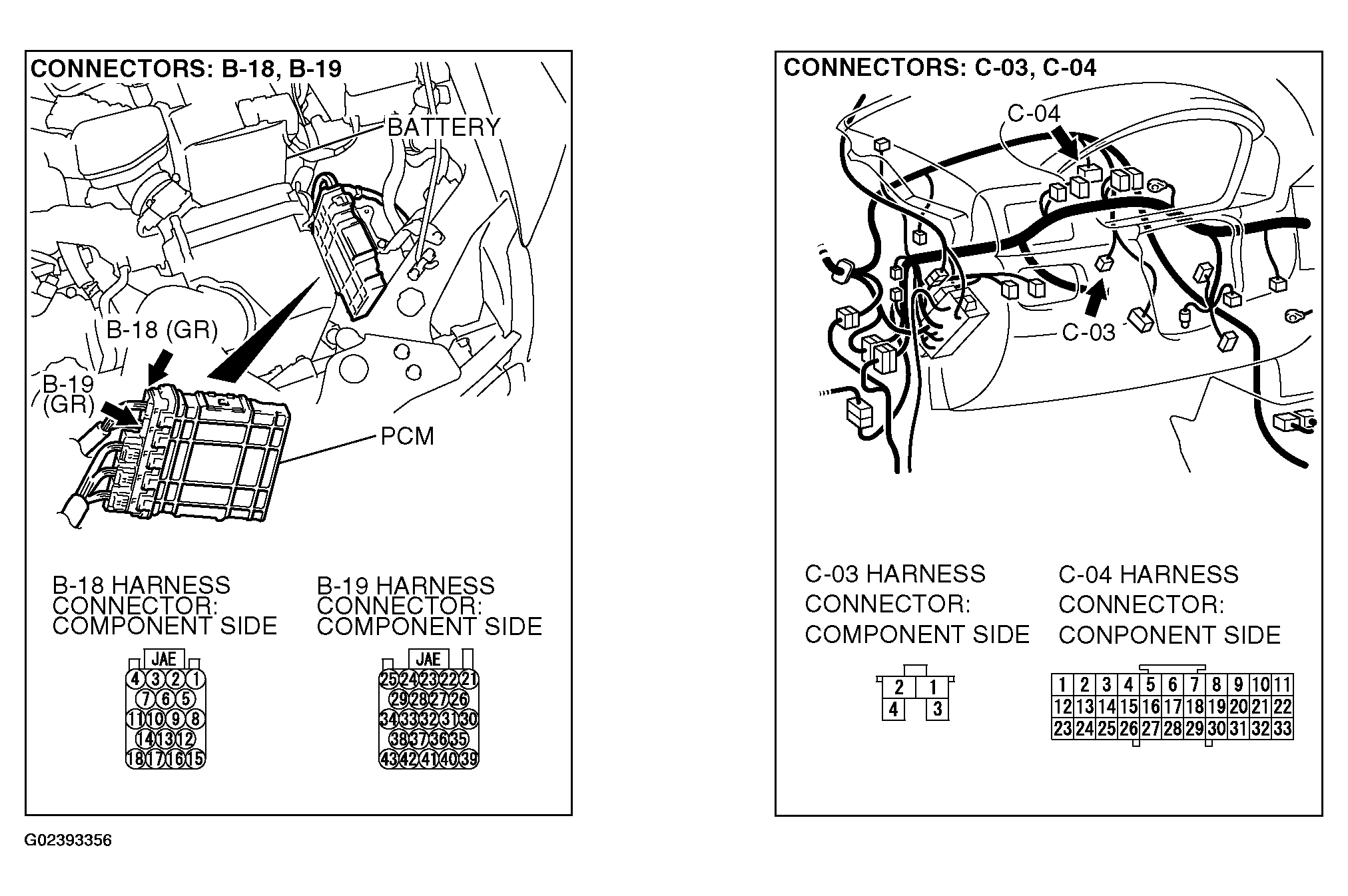

Fig 2: Identifying Harness Connectors
G02393356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
