DTC 010: BusOff: Notes

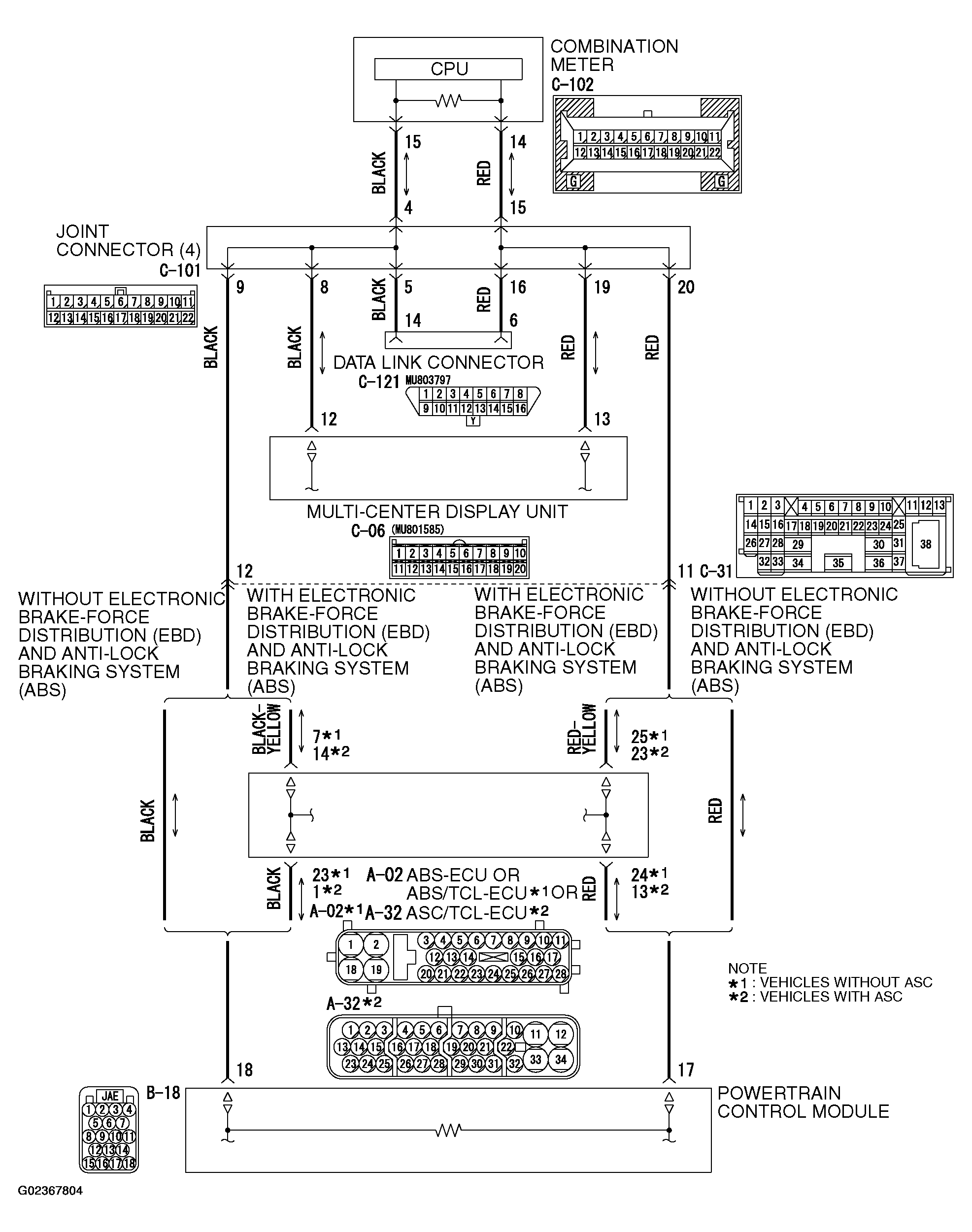

Fig 1: Multi-Center Display (Middle Grade Type) Can-Bus Line Circuit Diagram & Connector Identification (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

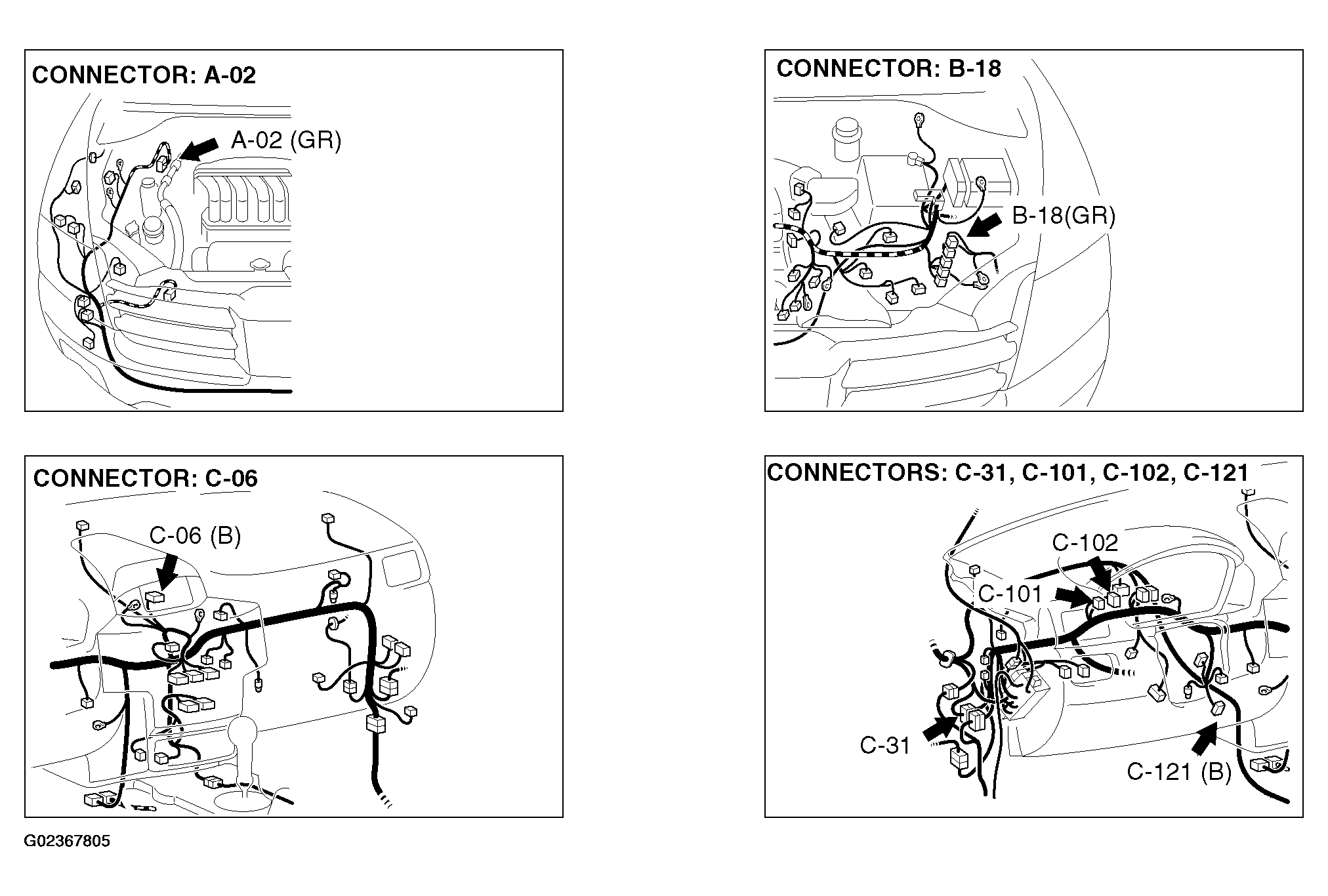

Fig 2: Multi-Center Display (Middle Grade Type) Can-Bus Line Circuit Diagram & Connector Identification (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC 010 is set in the multi-center display, always diagnose the CAN bus lines.

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
