Removal And Installation: Notes

WARNING:
  • Before removing the steering wheel, air bag module assembly and clock spring refer toSERVICE PRECAUTIONS ( ) and AIR BAG MODULE AND CLOCK SPRING ( < VEHICLES WITHOUT ADVANCED AIR BAG > or < VEHICLES WITH ADVANCED AIR BAG) >.
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

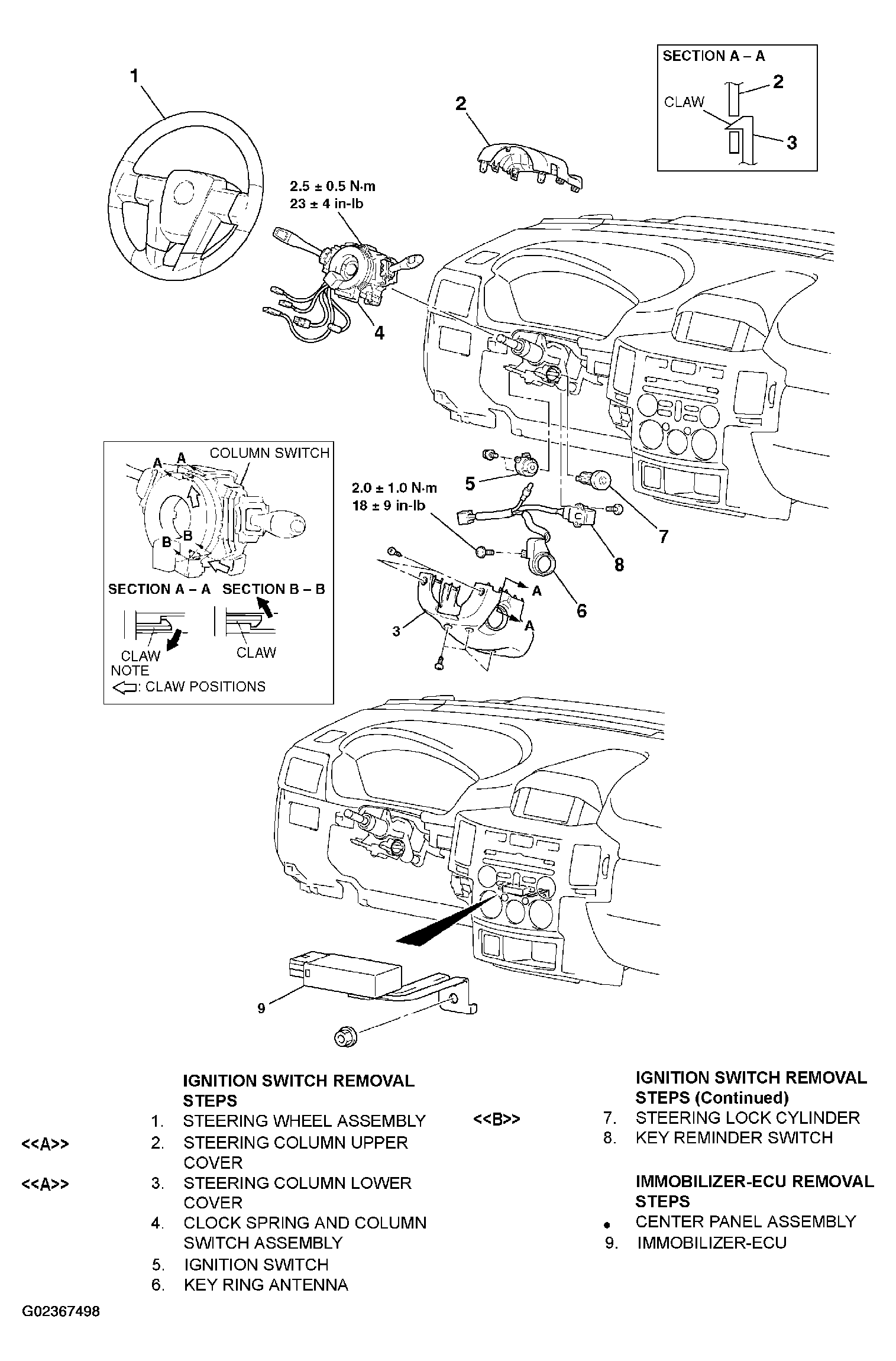

Fig 1: Removing/Installing Ignition Switch
G02367498Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
