Ignition Switch Continuity Check

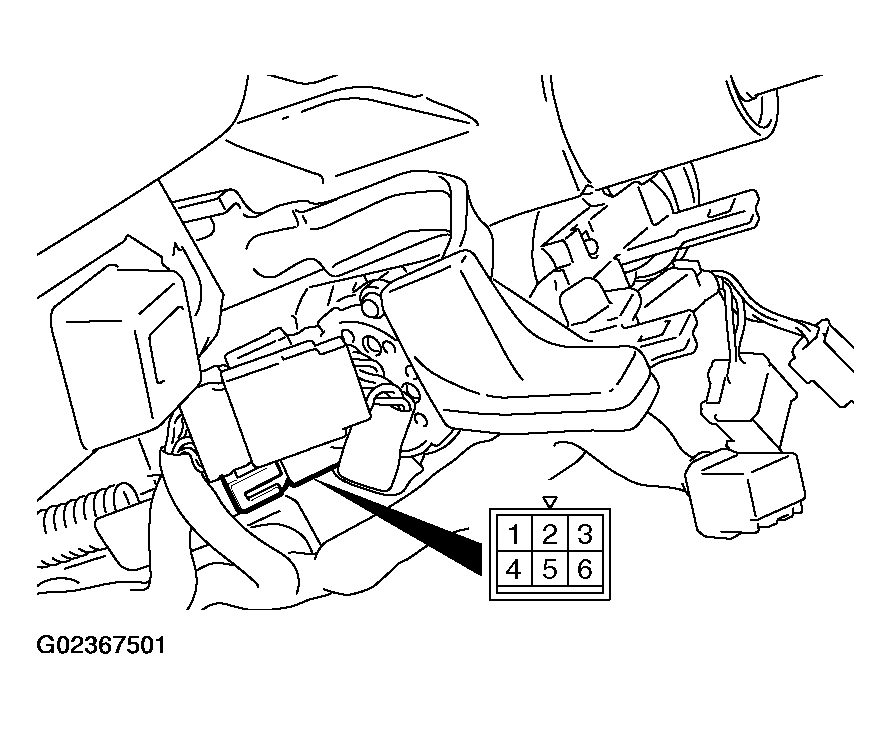

Disconnect ignition switch connector C-308 without removing the ignition switch and steering lock cylinder. Then check the continuity.
TESTER SPECIFIED CONDITION
| SWITCH POSITION | CONNECT TESTER BETWEEN: | SPECIFIED CONDITION |
|---|---|---|
| "LOCK" (OFF) | 1-2 | Open circuit |
| 1-4 | ||
| 1-5 | ||
| 1-6 | ||
| "ACC" | 1-6 | Less than 2 ohms |
| "ON" | 1-2 | Less than 2 ohms |
| 1-4 | ||
| 1-6 | ||
| "START" | 1-2 | Less than 2 ohms |
| 1-4 | ||
| 1-5 |
