Ignition Switch: General Description: Operation: Notes

  1. When the ignition switch is turned to "ON" position, the PCM sends a requirement for the encrypted code to the immobilizer-ECU (at this time, the engine is remobilized).
  2. When the immobilizer-ECU receives the requirement from the PCM, the immobilizer-ECU supplies power to the transponder inside the ignition key via the antenna. The energized transponder sends the encrypted code back to the immobilizer-ECU via the antenna.
  3. The immobilizer-ECU judges the encrypted code with its code logic in itself. If they are identical, the immobilizer-ECU sends the encrypted code to the PCM.
  4. If the PCM can not receive the encrypted code, the engine will be immobilized.

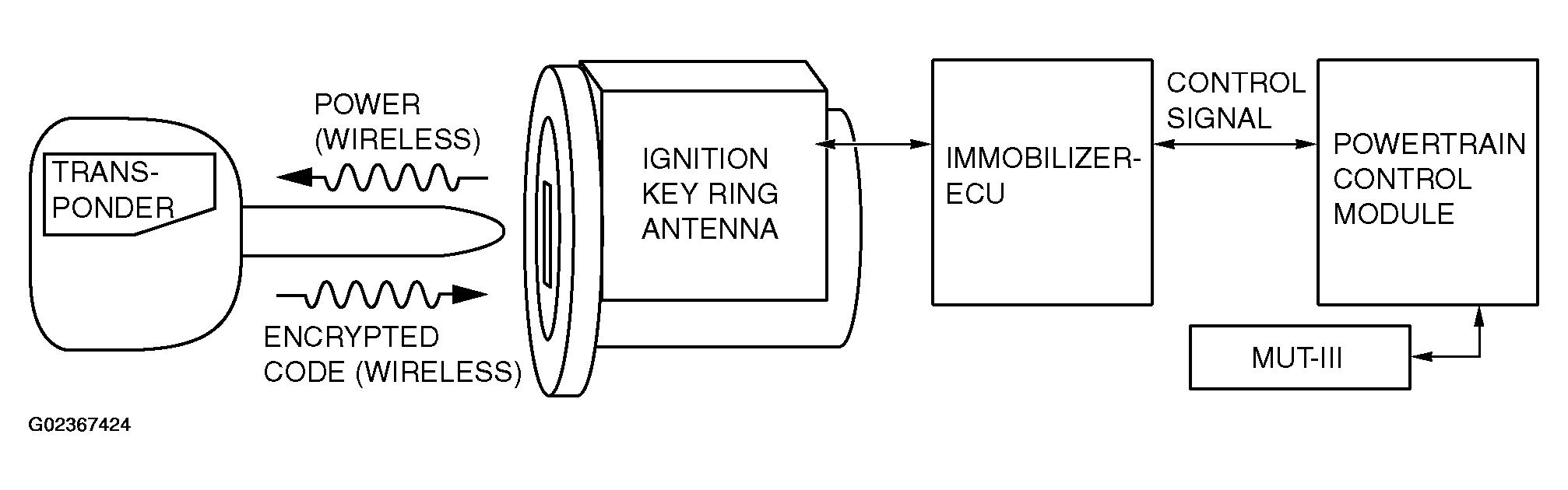

    Fig 1: Ignition Switch Operation Diagram
    G02367424Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
