How To Read Data List

Required Special Tools:

MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A (Vehicles with CAN communication system)

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.

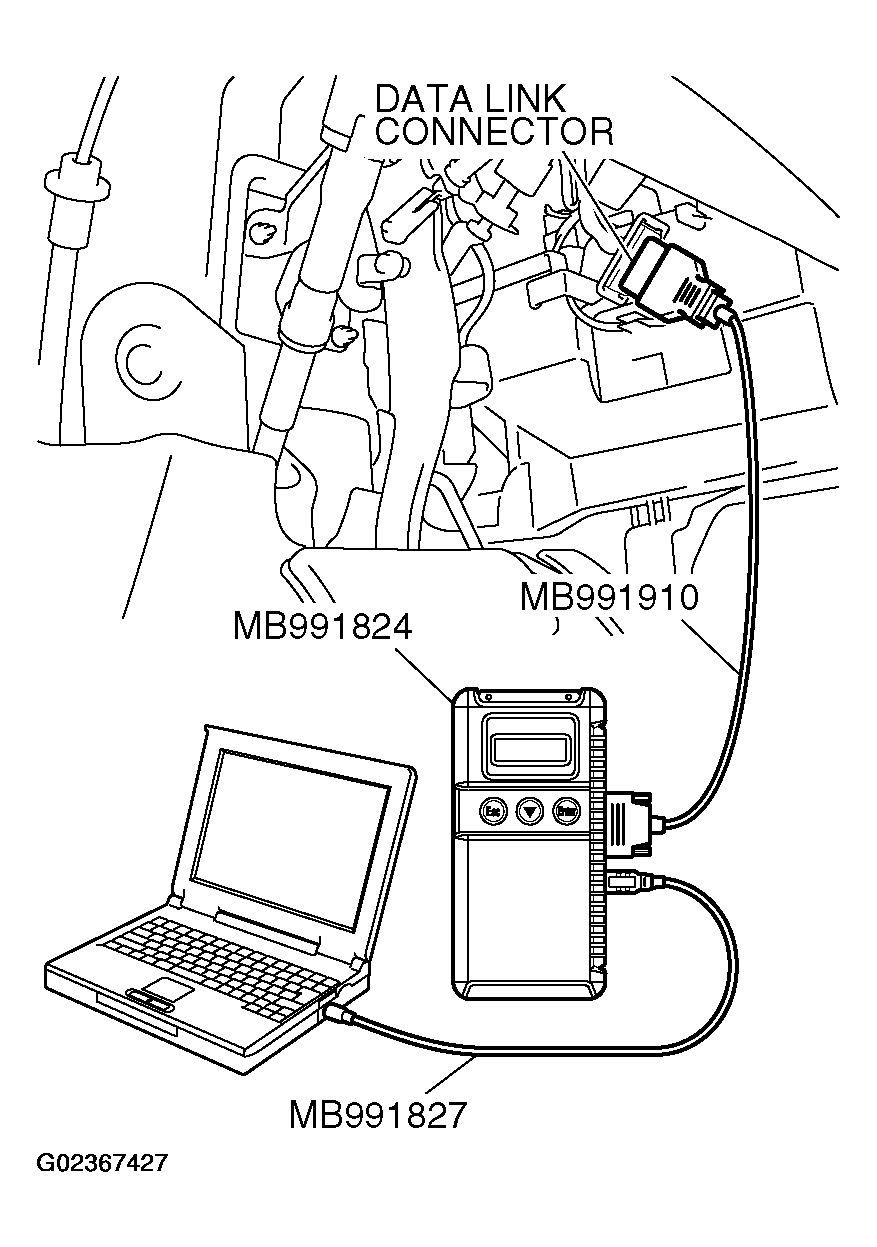

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the ignition switch to "ON" position.
Select "Interactive Diagnosis" from the start-up screen.
Select "System select."
Choose "IMMOBILIZER" from the "POWER TRAIN" tab.
Select "Data List."
Choose an appropriate item and select the "OK" button.
