Troubleshooting Steps

If an attempt is made to solve a problem without going through correct steps for troubleshooting, the symptoms could become more complicated, resulting in failure to determine the causes correctly and making incorrect repairs. The four steps shown in the following illustration should be followed in troubleshooting.

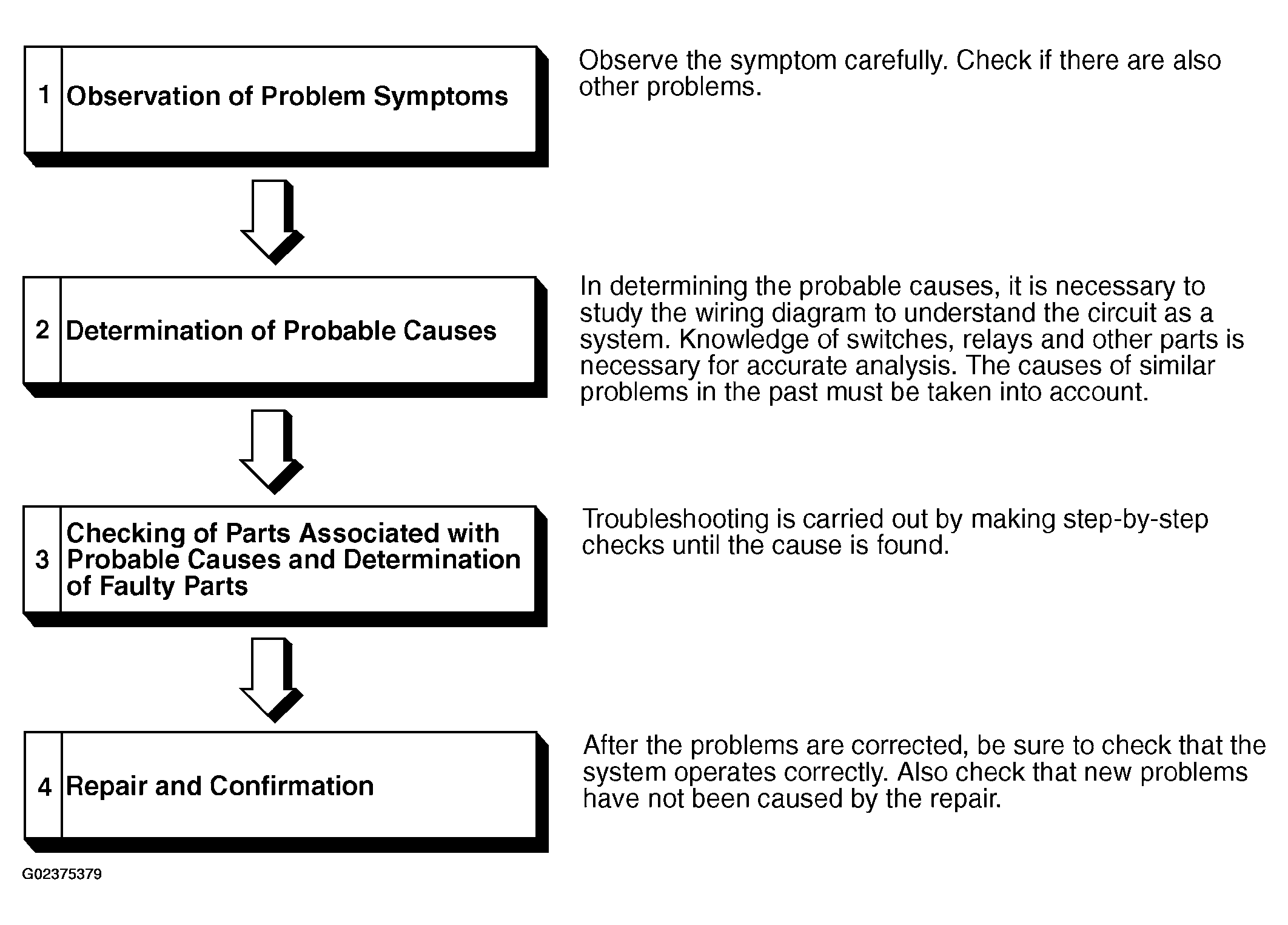

Fig 1: Troubleshooting Flow Step
G02375379Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
