INSPECTION PROCEDURE 3: TCL/ASC-ECU Power Supply System: Notes

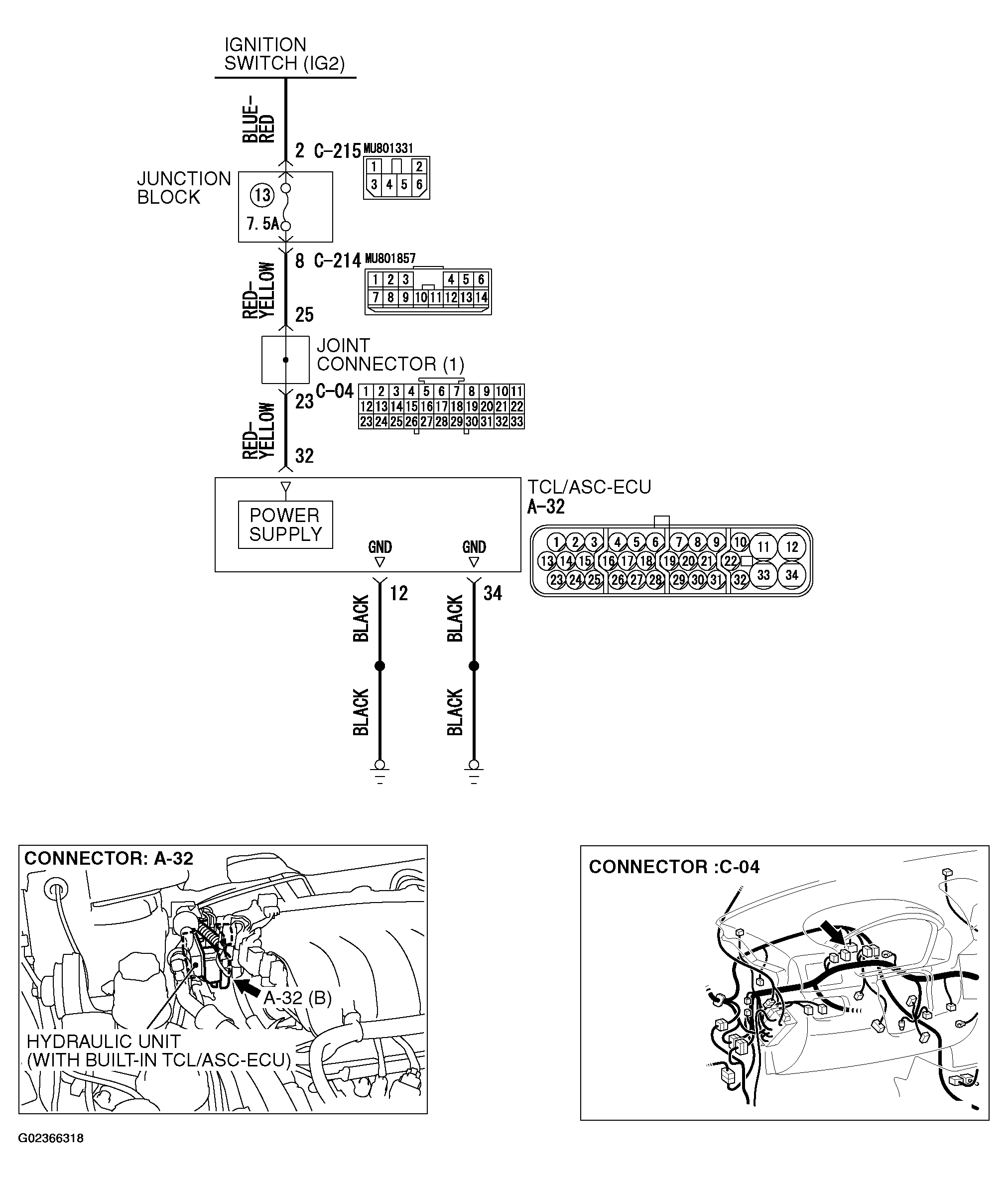

Fig 1: TCL/ASC-ECU Power Supply And Ground Circuit Diagram (1 Of 2)
G02366318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

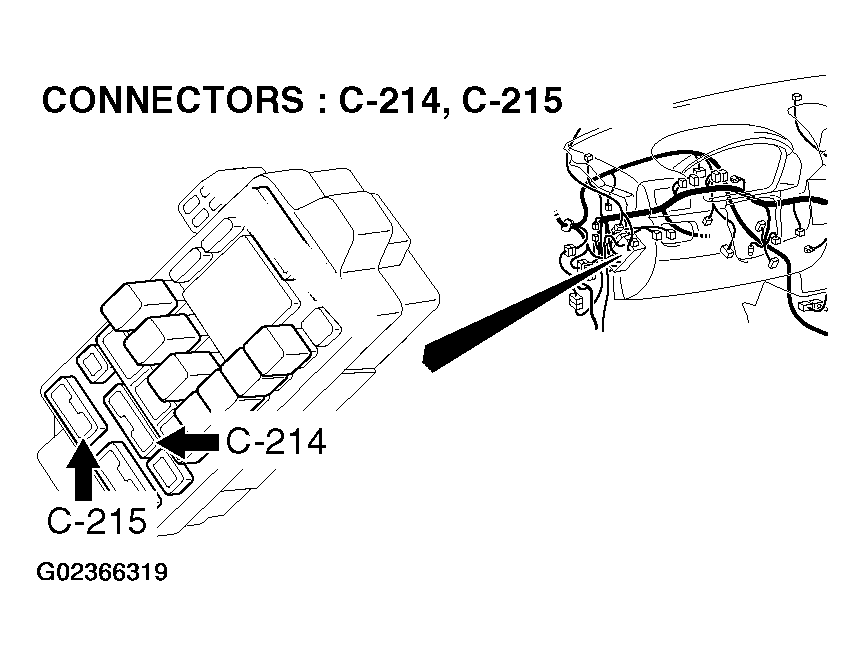

Fig 2: TCL/ASC-ECU Power Supply And Ground Circuit Diagram (2 Of 2)
G02366319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
