When The Abs Fluid Pressure Is Holding: Notes

The system closes the inlet solenoid valve and the outlet solenoid valve to hold the brake fluid pressure in the wheel cylinders.

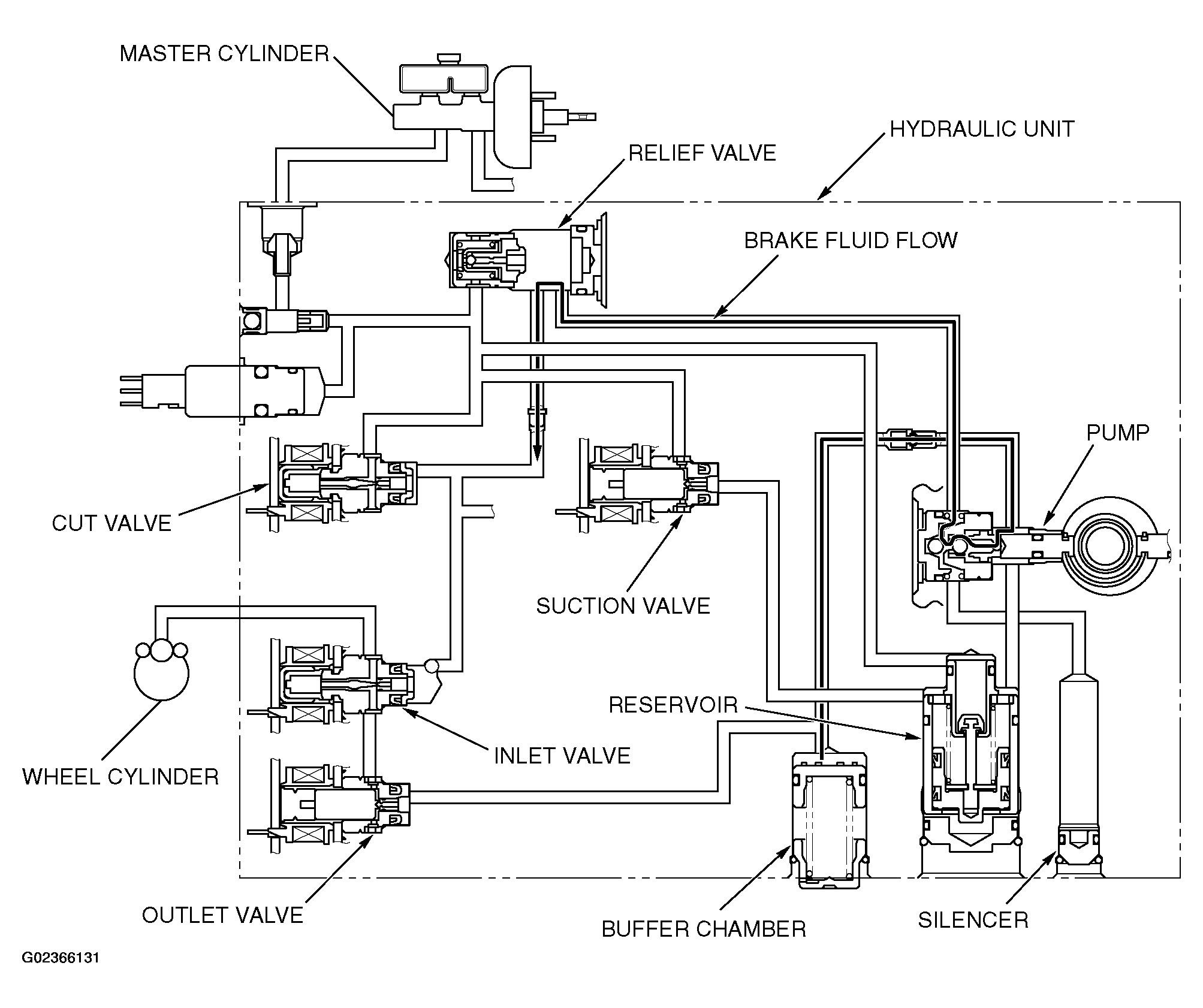

Fig 1: Operation Diagram - ABS Fluid Pressure Holding

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
