Home >> Mitsubishi >> 2005 >> Eclipse Spyder GTS, Standard >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Front Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: Before removing a seat equipped with a side air bag module, refer to SRS SERVICE PRECAUTIONS .

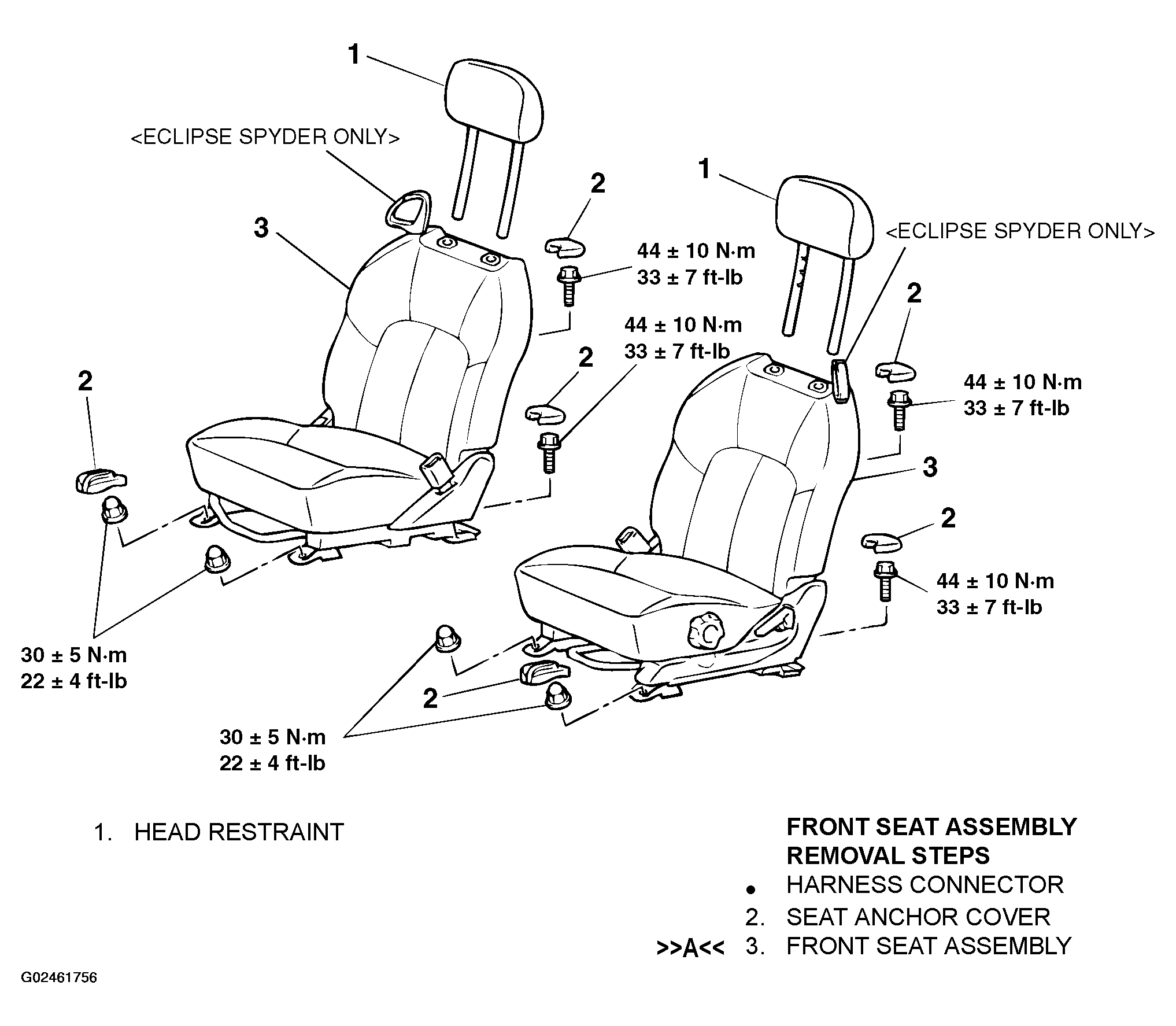

Fig 1: Removing/Installing Front Seat Assembly
G02461756Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
