Eclipse Spyder GTS, Standard
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
Overhaul - 3.0L
>>
Specifications
>>
Service Specifications
Service Specifications

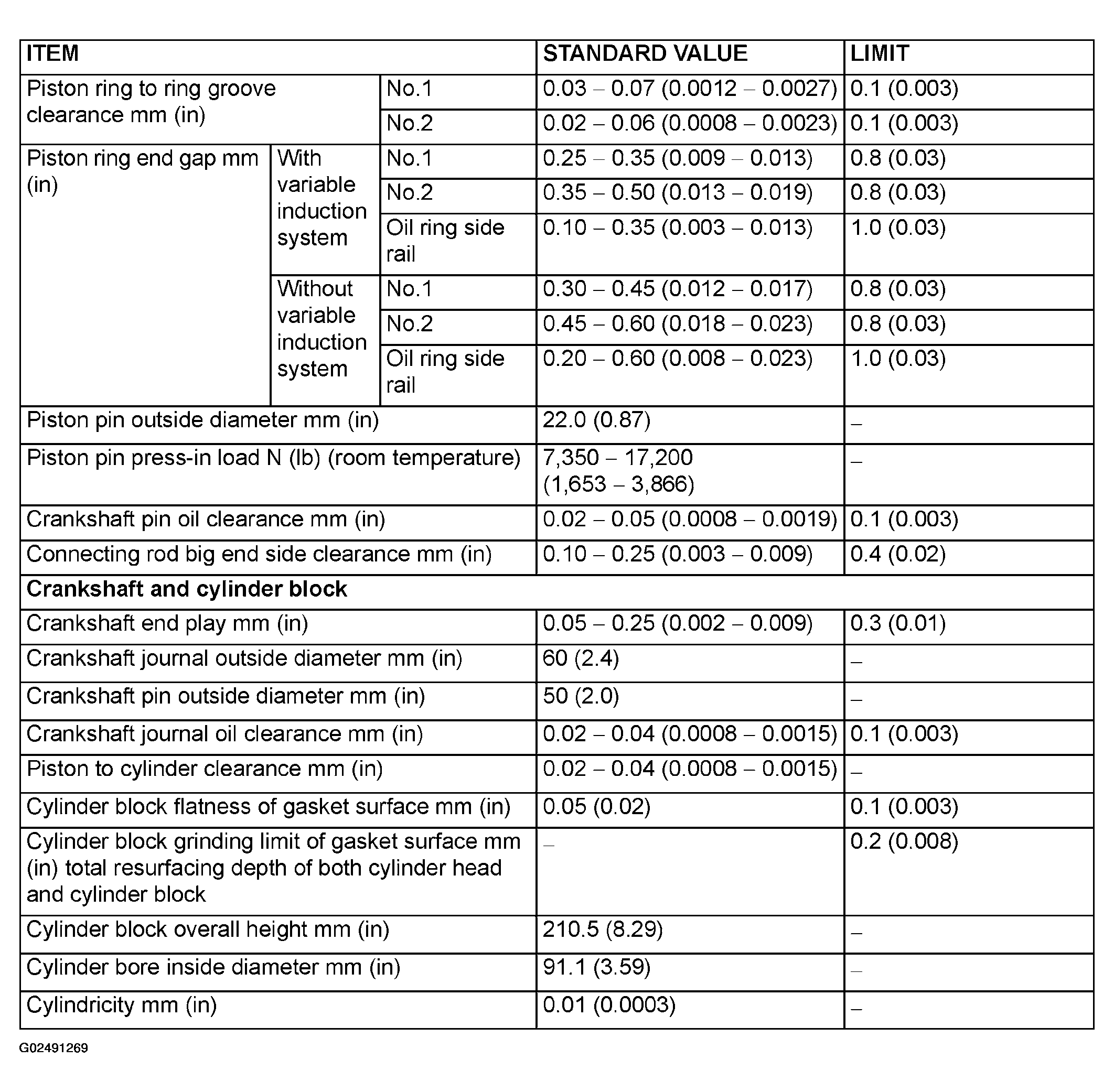

Fig 1: Service Specifications Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

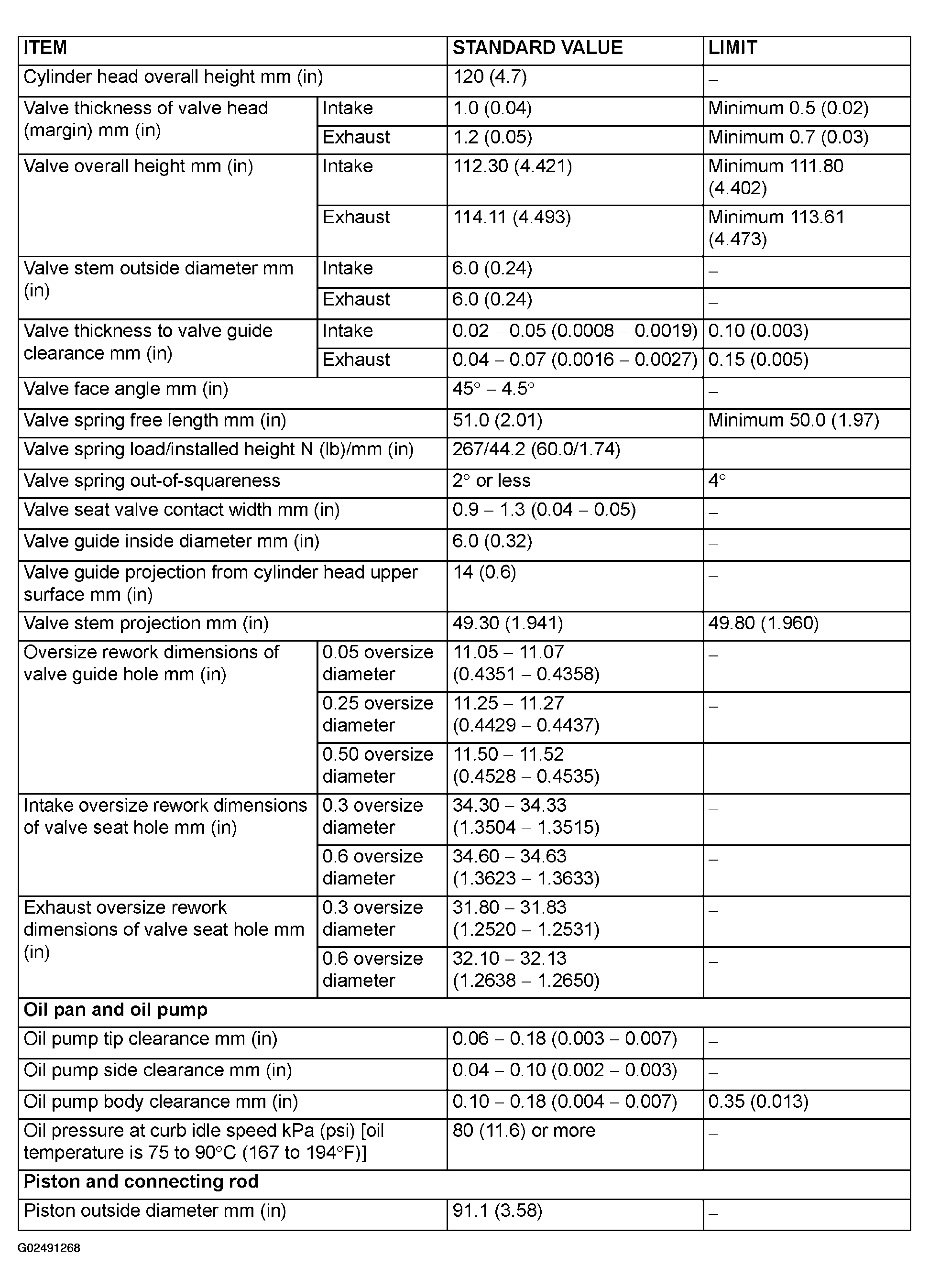

Fig 2: Service Specifications Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

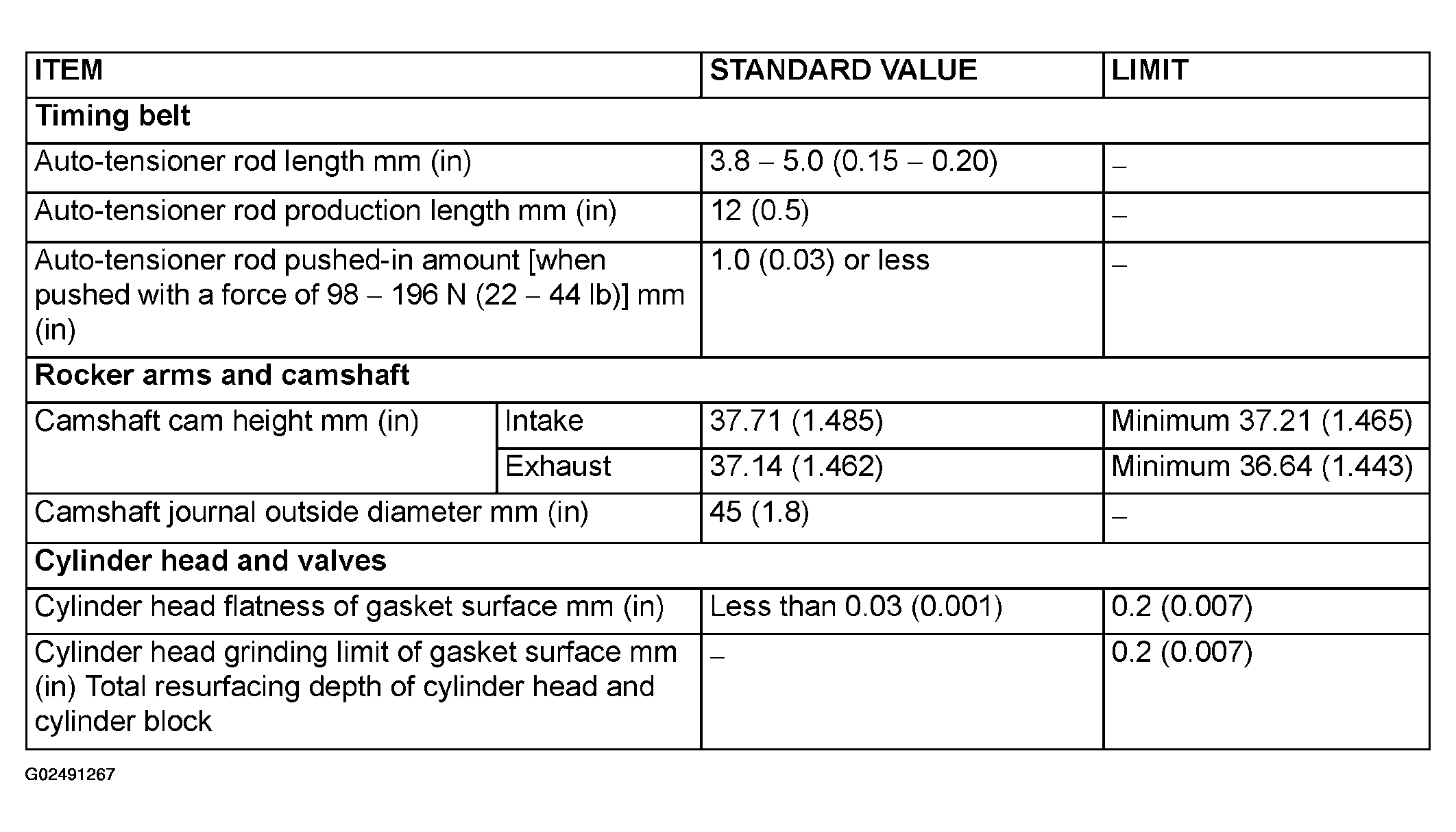

Fig 3: Service Specifications Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Service Specifications Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
