Disassembly And Assembly: Notes

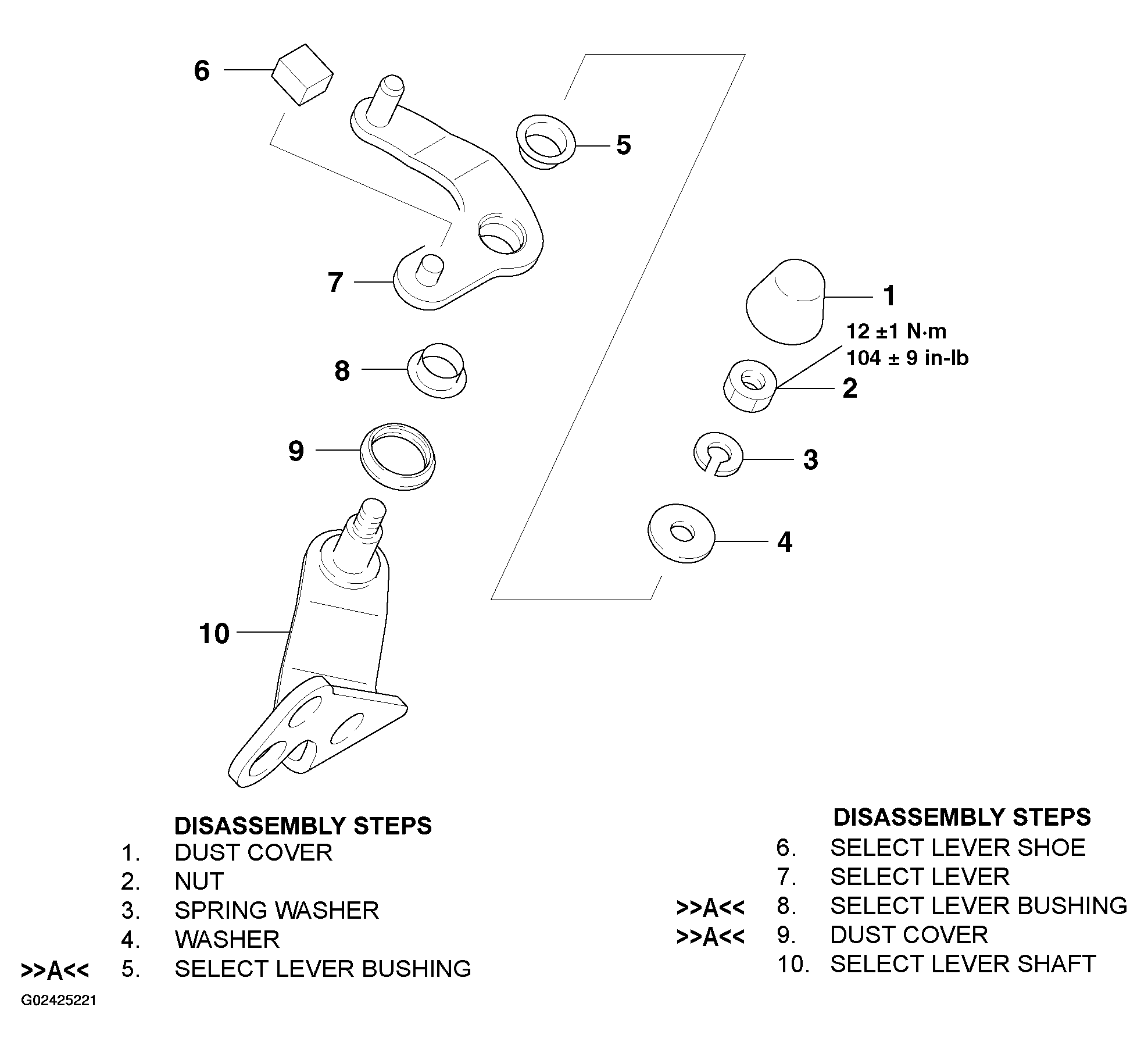

Fig 1: Disassembly Steps Of Select Lever

G02425221

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
