Automatic Transaxle Diagnosis
>>
Inspection Procedure Using An Oscilloscope
>>
Notes
Inspection Procedure Using An Oscilloscope: Notes

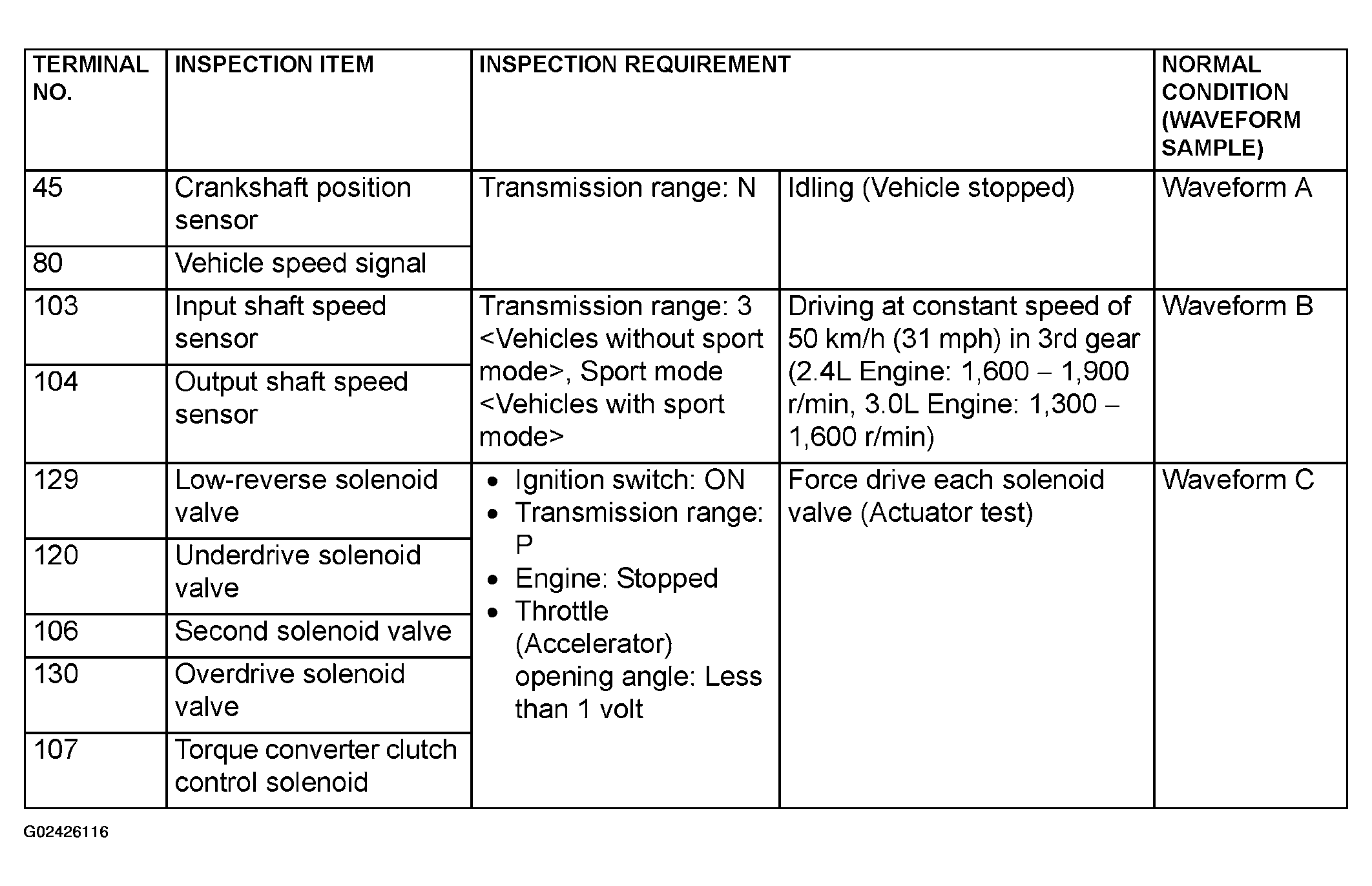

Fig 1: Inspection Procedure Chart (Using Oscilloscope)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
