Disassembly And Assembly: Notes

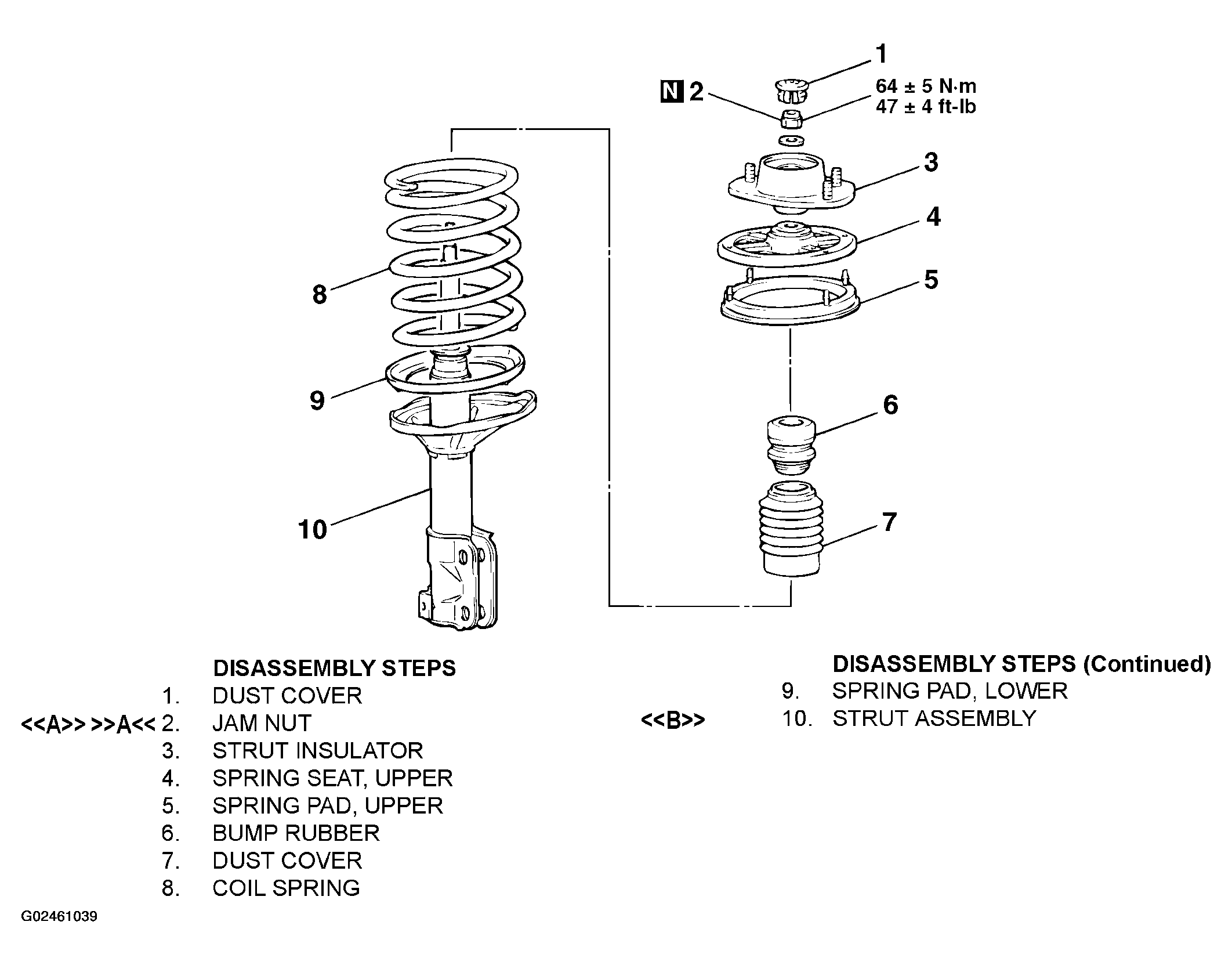

Fig 1: Disassembling/Assembling Front Suspension

G02461039

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
