Removal And Installation: Notes

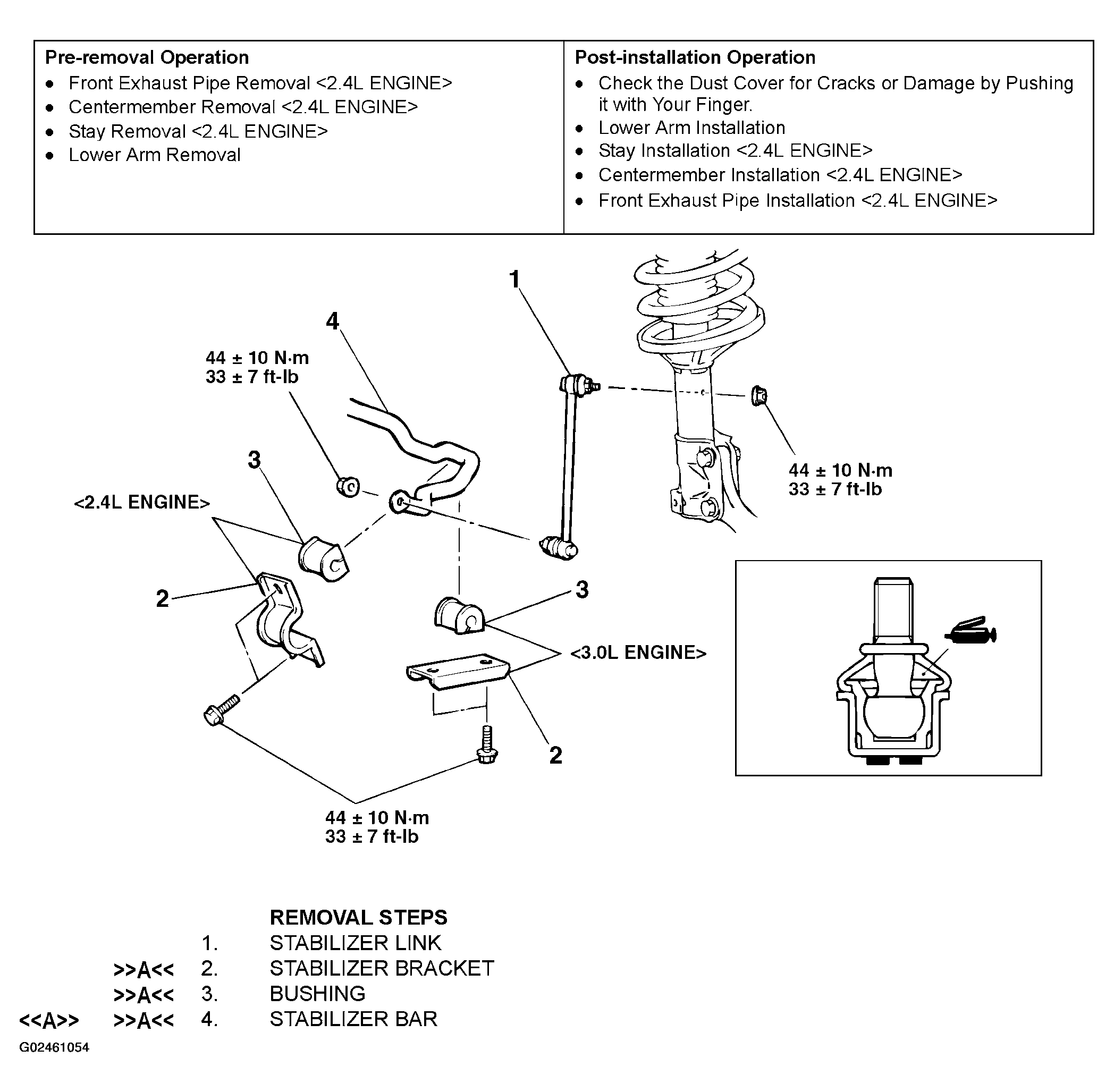

Fig 1: Removing/Installing Stabilizer Bar

G02461054

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
