Configuration Diagrams

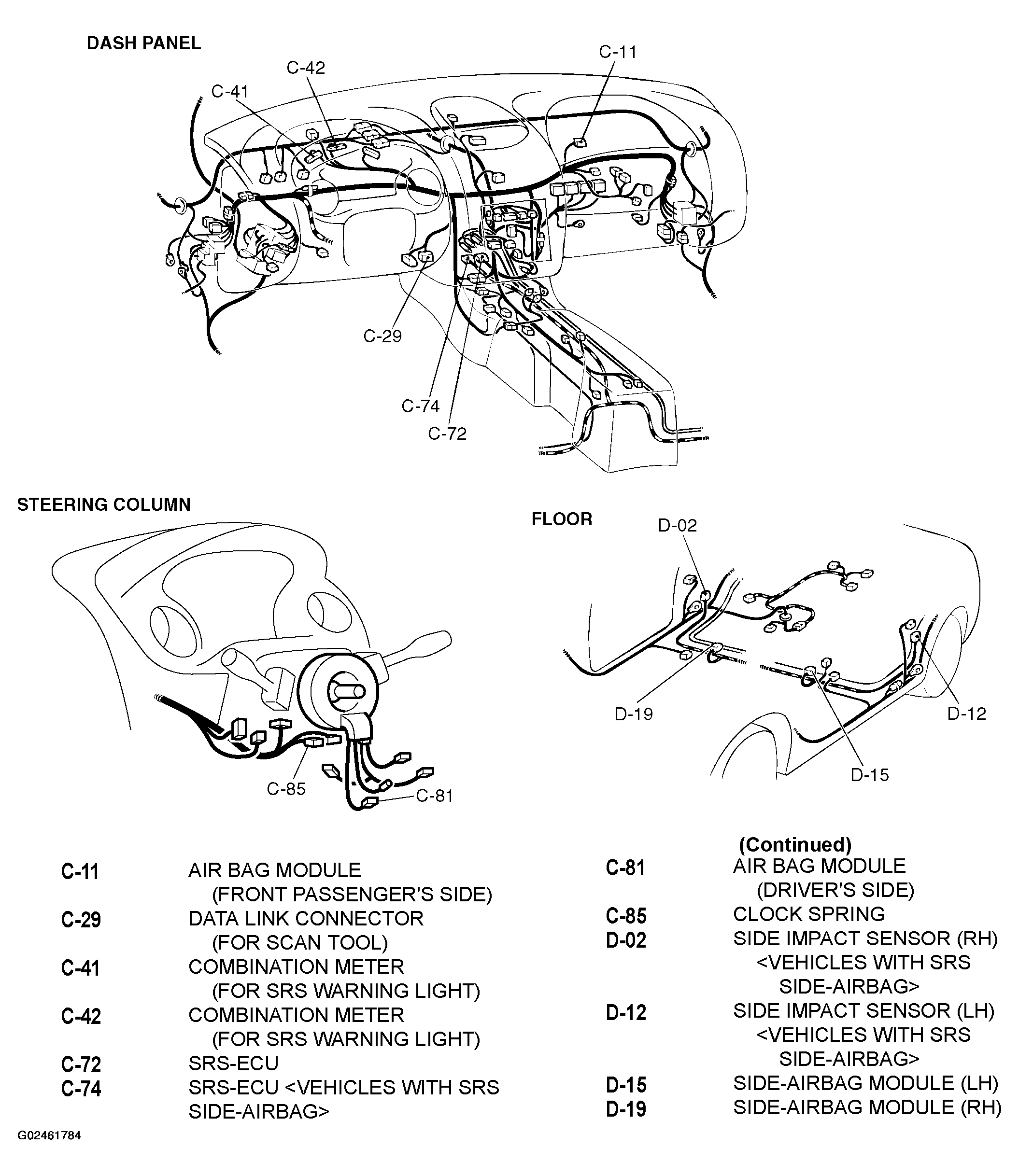

Fig 1: Dash Panel And Steering Column - Configuration Diagrams

G02461784

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
