Component Location

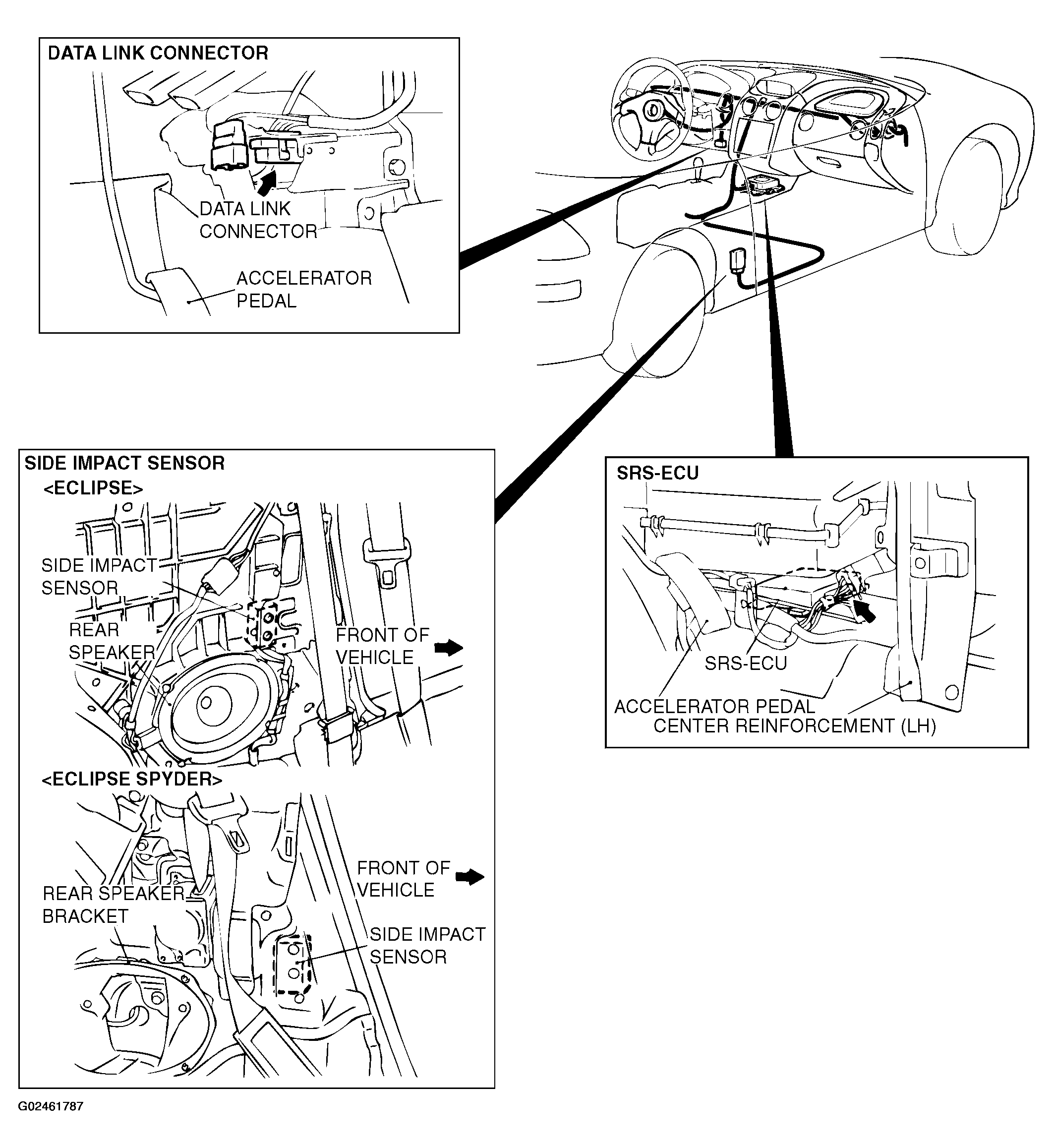

Fig 1: Identifying Component Location
G02461787Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the side impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
