Power Seat Switch Continuity Check

Fig 1: Identifying Power Seat Switch Connector Terminals
G02461760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

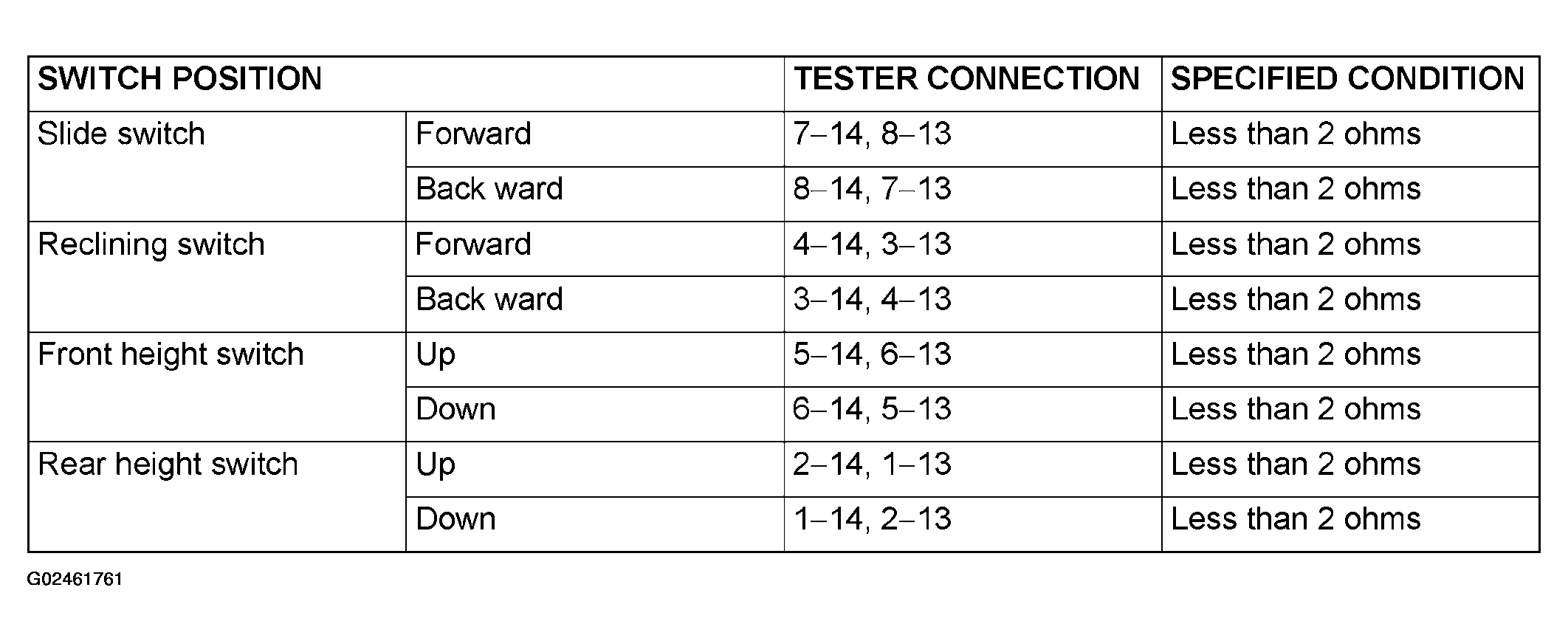

Fig 2: Switch Position And Specified Condition Chart
G02461761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
