Synchronizer Ring

WARNING: This page is about a different variant/trim than selected.

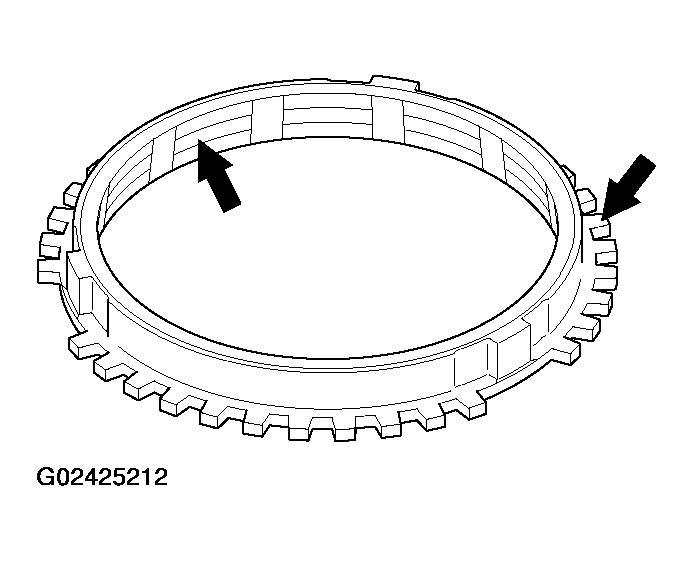

Check if the clutch gear teeth are damaged or broken.
Check internal surface for damage, wear and broken threads.

Fig 1: Inspecting Synchronizer Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

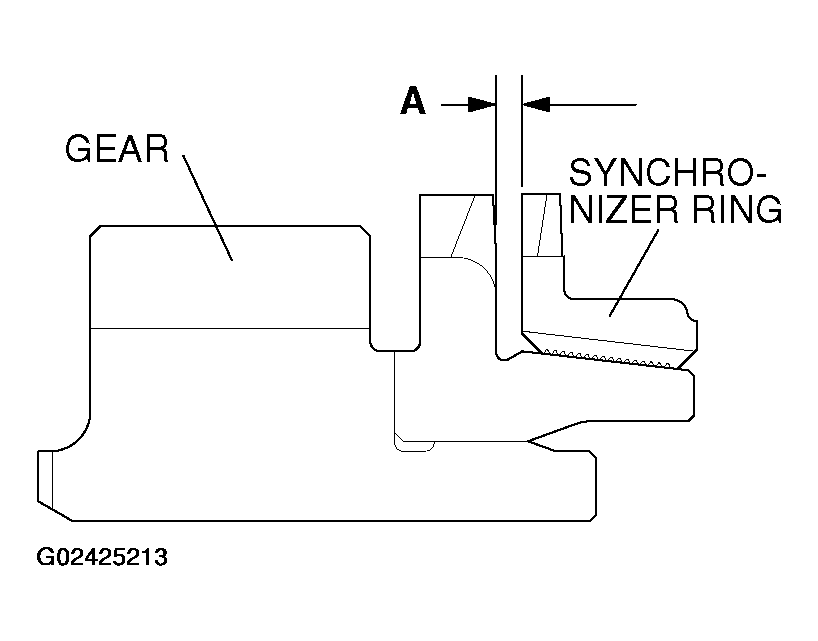

Force the synchronizer ring toward the clutch gear and check clearance "A". If "A" is less than the limit, replace the synchronizer ring.
- Minimum limit: 0.5 mm (0.020 inch)
Fig 2: Checking Clearance Between Synchronizer Ring And Clutch Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
