Home >> Mitsubishi >> 2005 >> Eclipse GTS, Automatic >> Repair and Diagnosis >> Engine Performance >> Remove, Overhaul & Install >> Ignition System >> Distributor Assembly >> Removal And Installation < 3.0L Engine > >> Notes

Removal And Installation < 3.0L Engine >: Notes

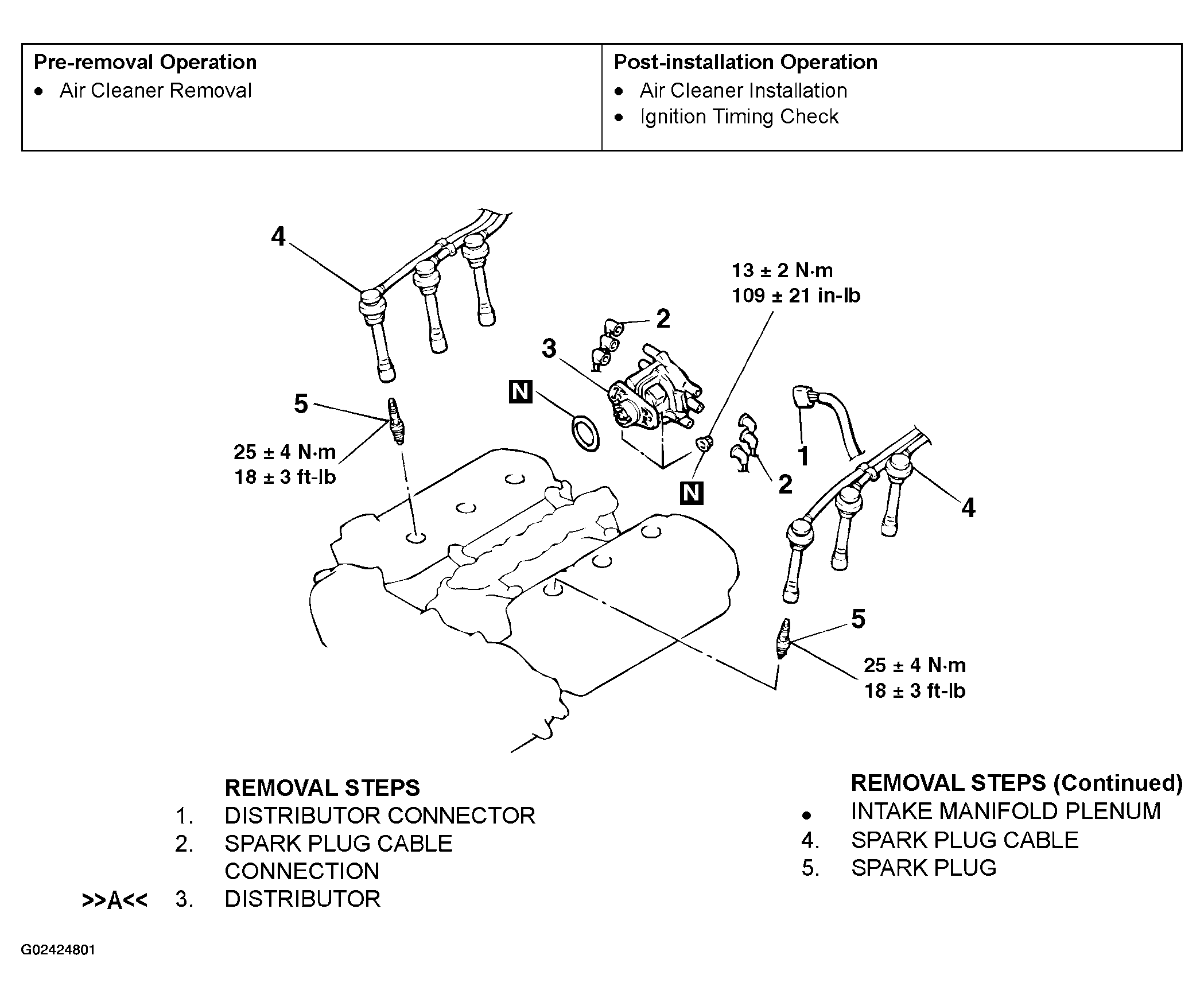

Fig 1: Removal Steps Of Distributor Assembly (3.0L Engine)

G02424801

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
