One Turn Magnetie Compensation

The compass is self-calibrating under normal driving conditions. It is not necessary to manually calibrate the compass. If manual calibration is desired, follow these instructions.

1. Engine started.
2. Display the compass on the multi-center display.

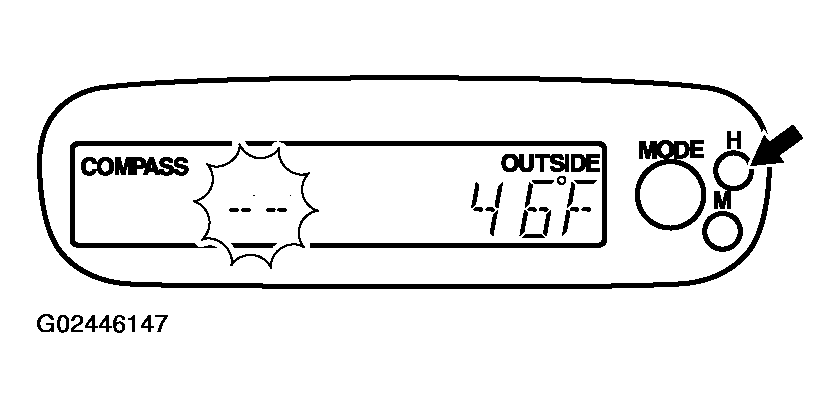

   Fig 1: Displaying Compass On Multi-Center Diasplay

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Press and hold the "H" switch until"- -" appears in the display.
4. Release the switch to enter the calibration mode.
5. Drive very slowly in a circle until "- -" disappears.

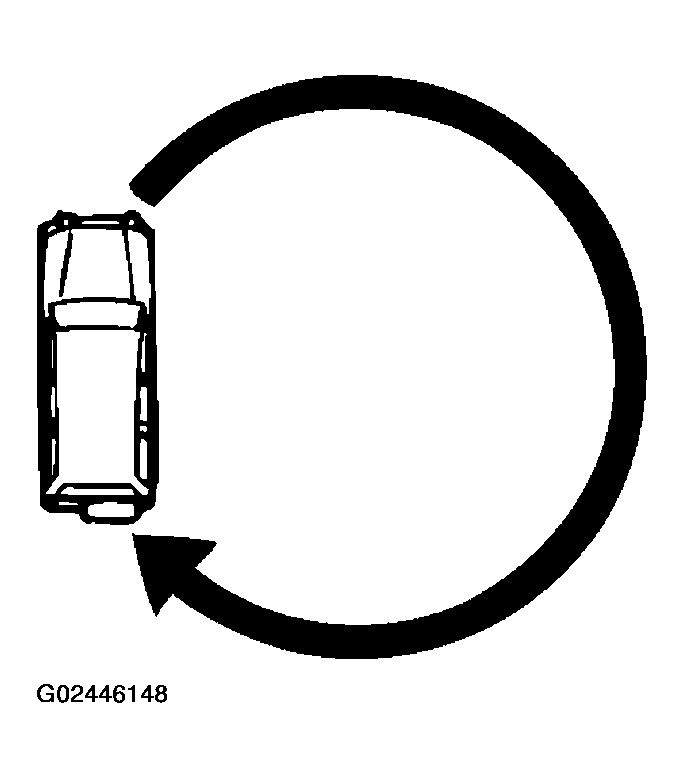

   Fig 2: Driving Very Slowly In A Circle

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
