Home
>>
Mitsubishi
>>
2005
>>
Eclipse GTS, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Chassis Electrical
>>
Multi-Center Display
>>
Removal And Installation
Removal And Installation

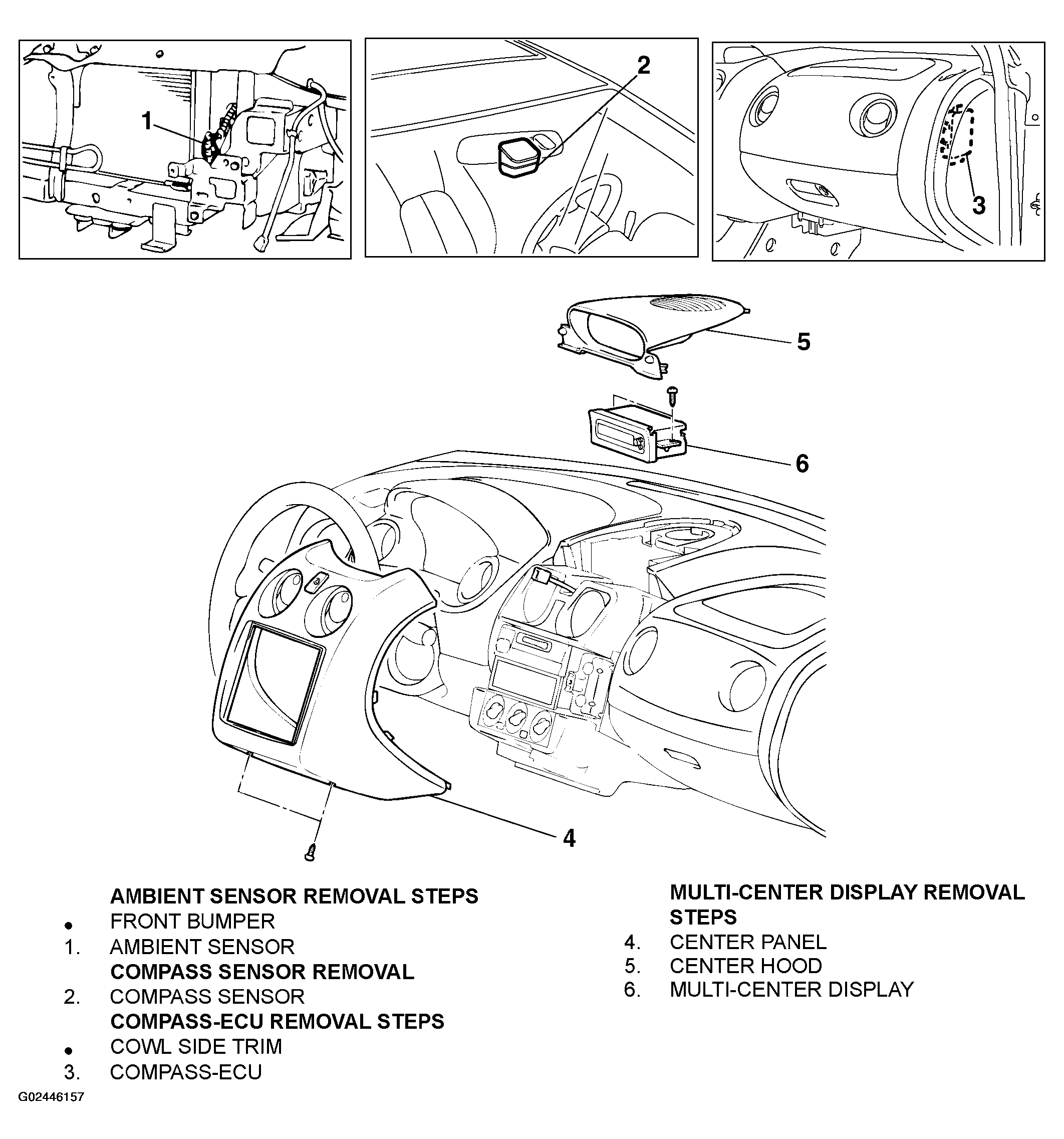

Fig 1: Removing/Installing Multi-Center Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
