INSPECTION PROCEDURE D-5: Power Window: Power Window (RH) does not Work by Operating Power Window Main Switch.: Notes

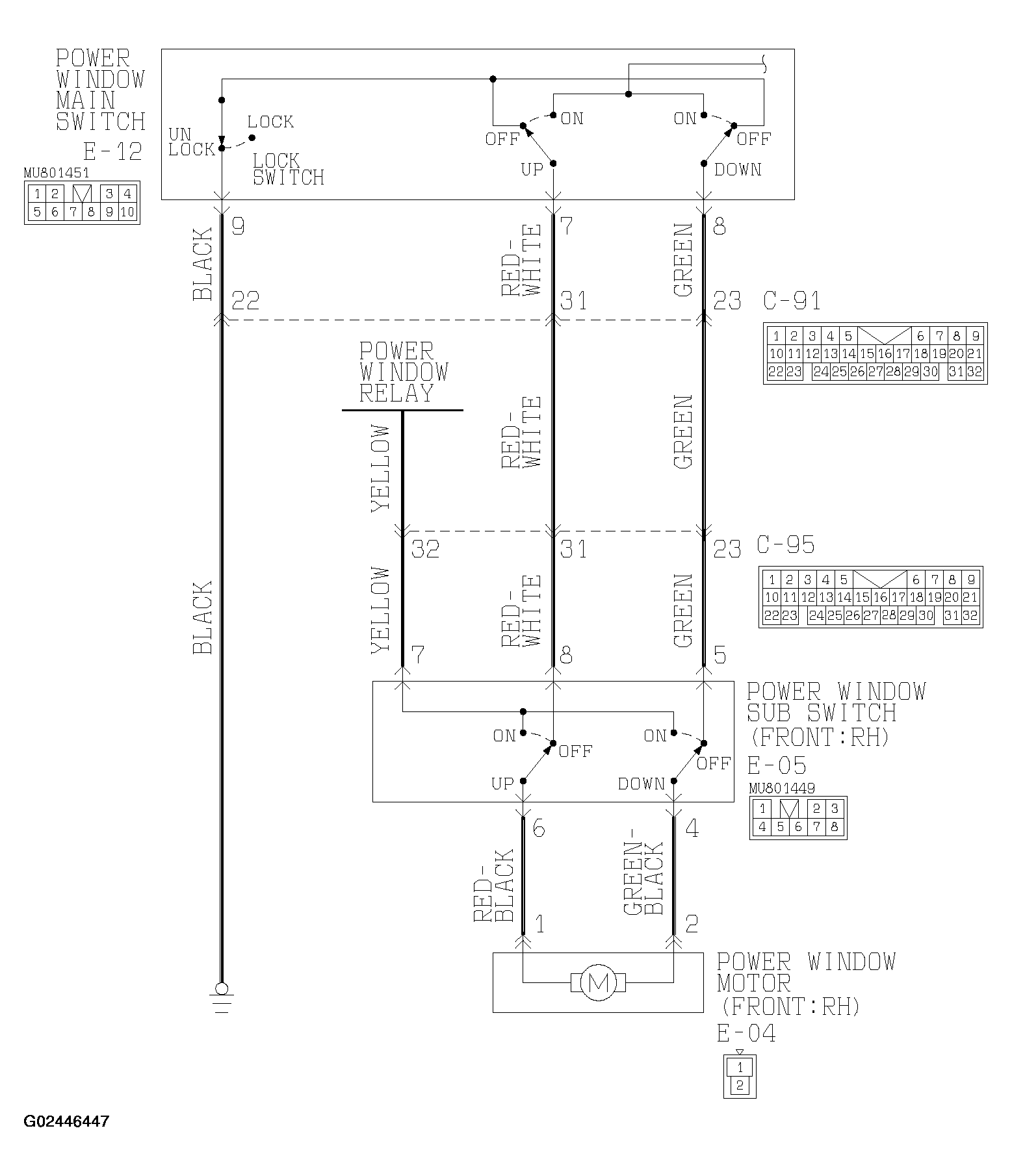

Fig 1: Power Window (RH) Circuit Diagram
G02446447Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
