General Circuit Diagram For The Power Windows

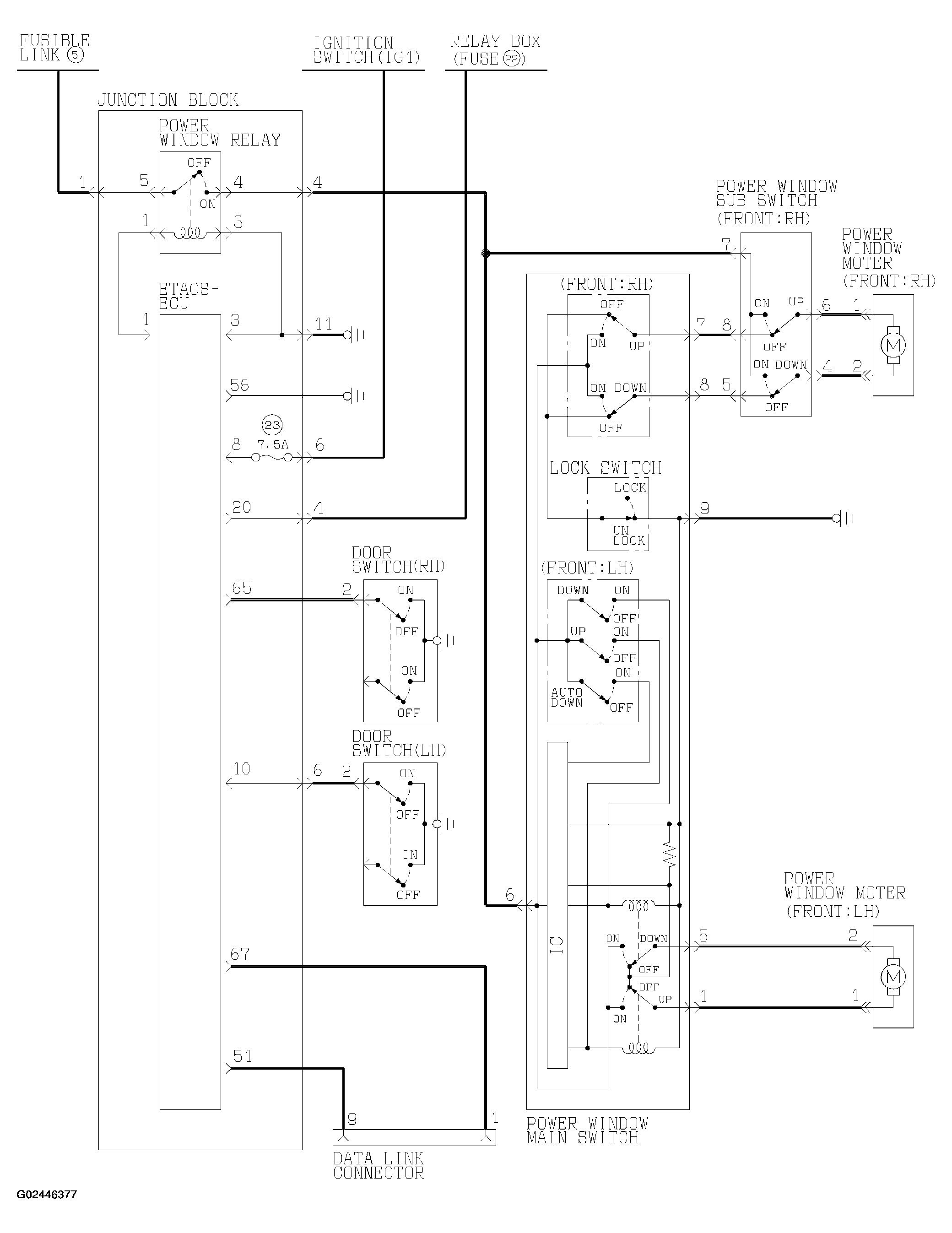

Fig 1: General Circuit Diagram For Power Windows

G02446377

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
