Operating The Transmitter Unlock Switch Press Twice

When the transmitter unlock switch is pressed twice, the ETACS-ECU activates the unlock relay output for 0.25 seconds and unlocks all doors.

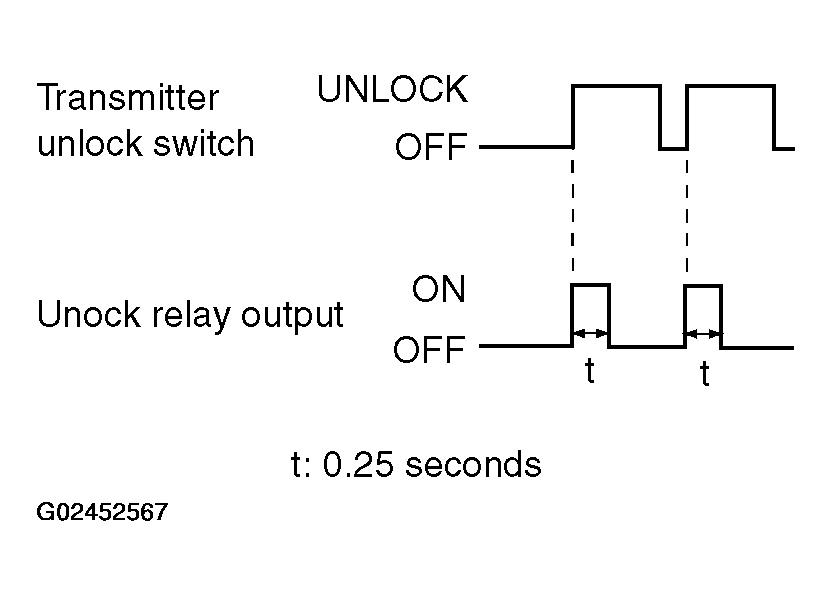

Fig 1: All Door Unlock Function - Operating Transmitter Unlock Switch Press Twice

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
