< Function System >

NOTE: For inspection procedures shown in the following illustrations, refer to appropriate testing in SYMPTOM PROCEDURES .

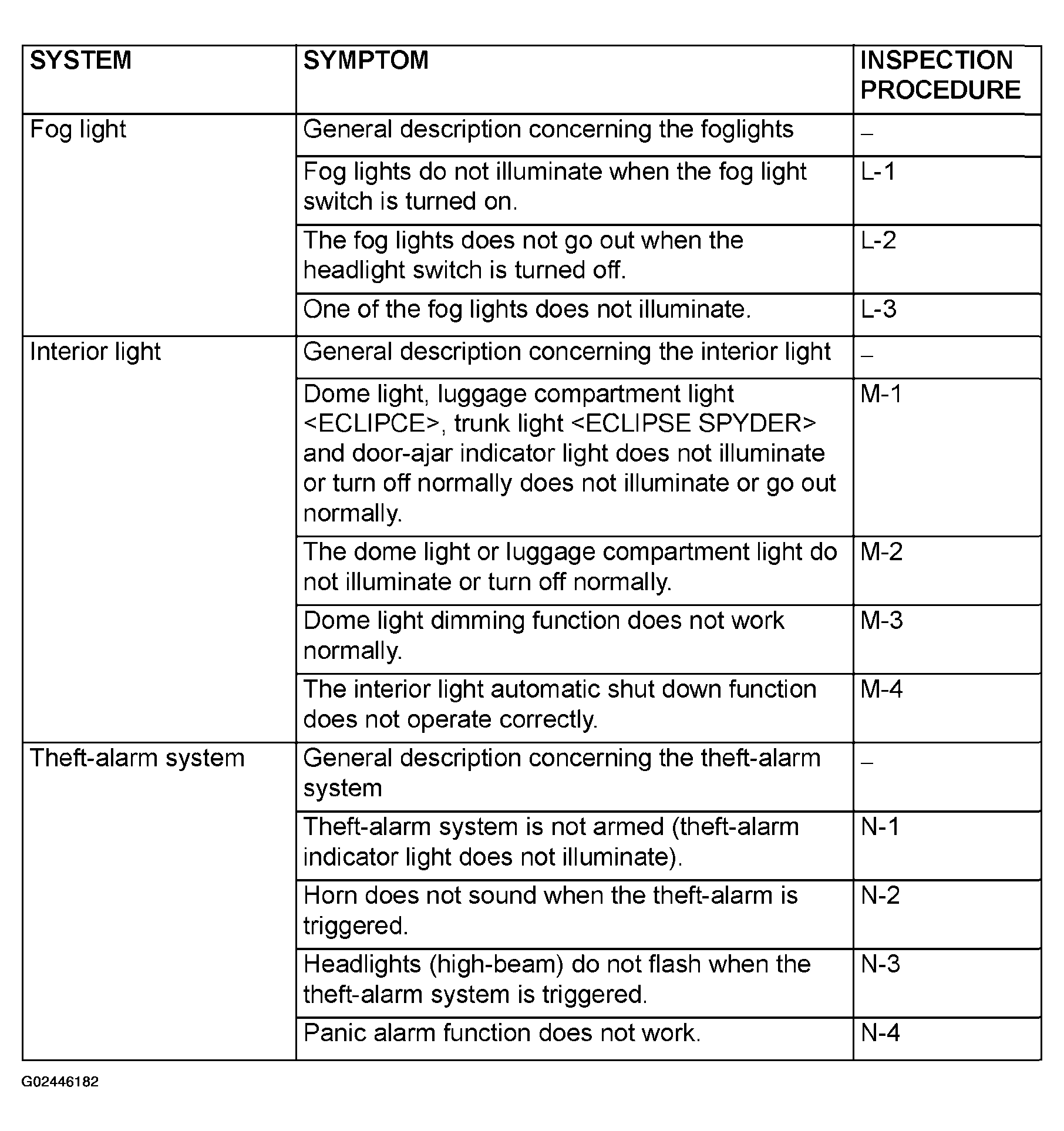

Fig 1: Symptom Chart (1 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

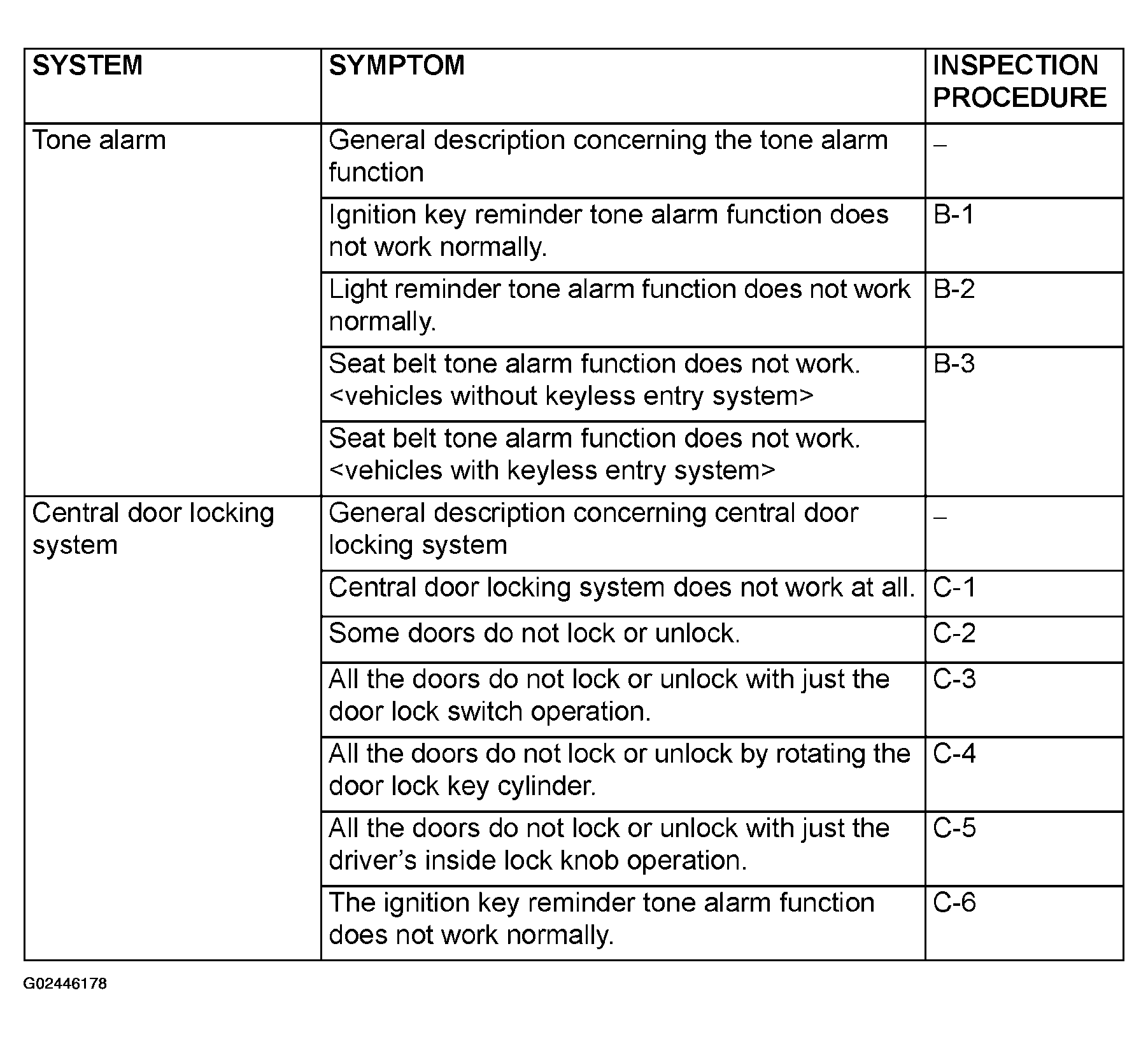

Fig 2: Symptom Chart (2 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

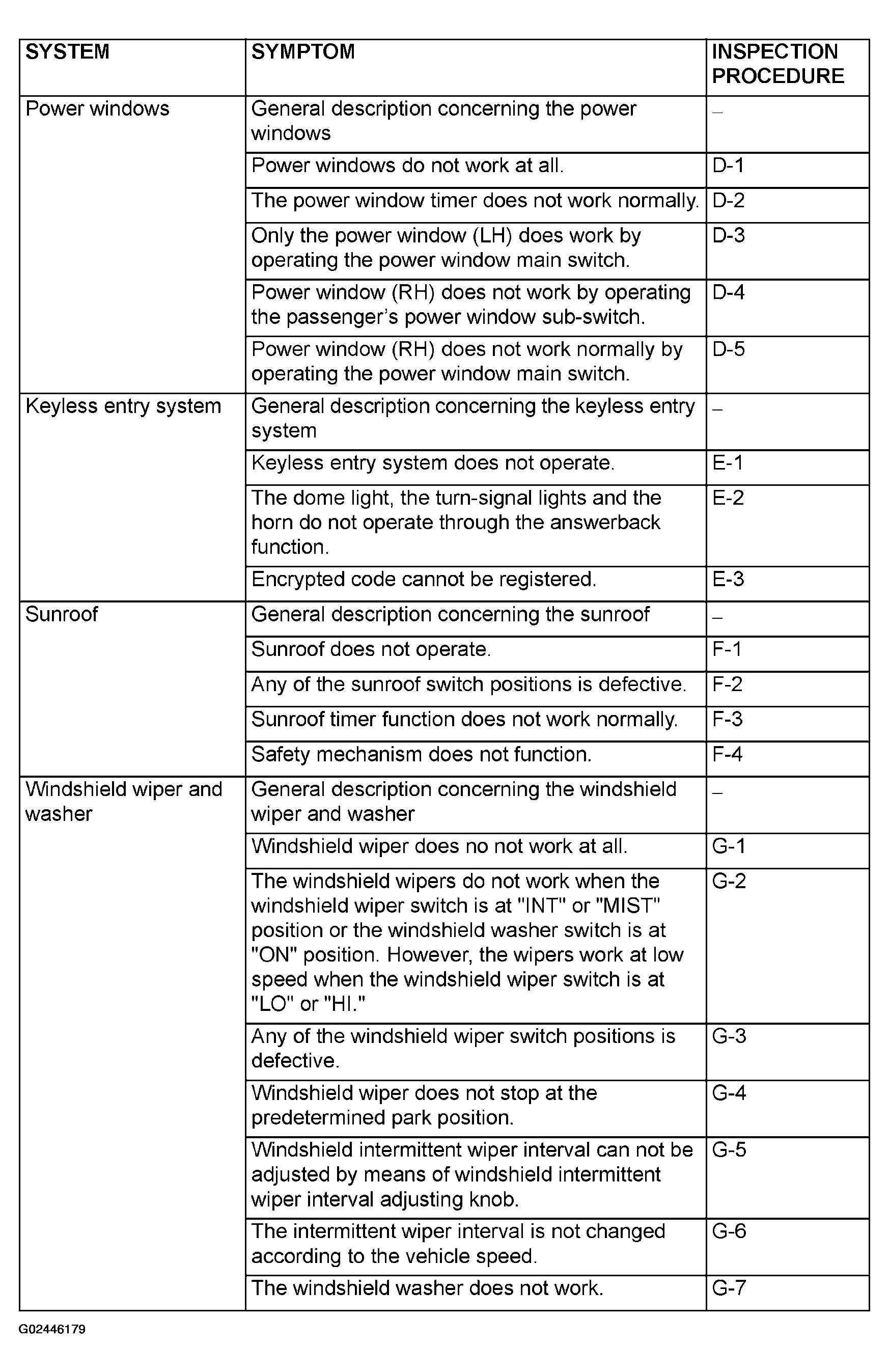

Fig 3: Symptom Chart (3 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

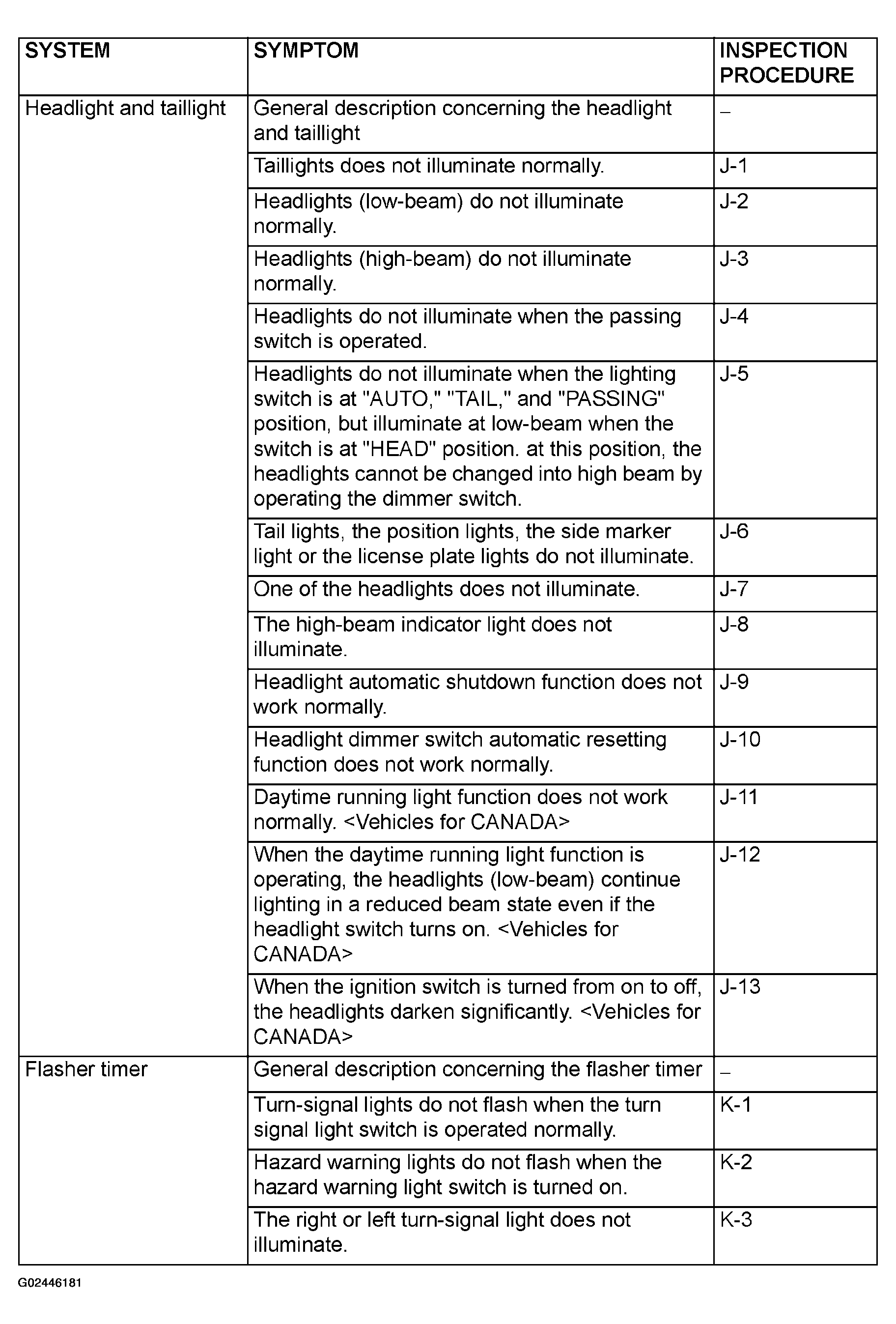

Fig 4: Symptom Chart (4 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

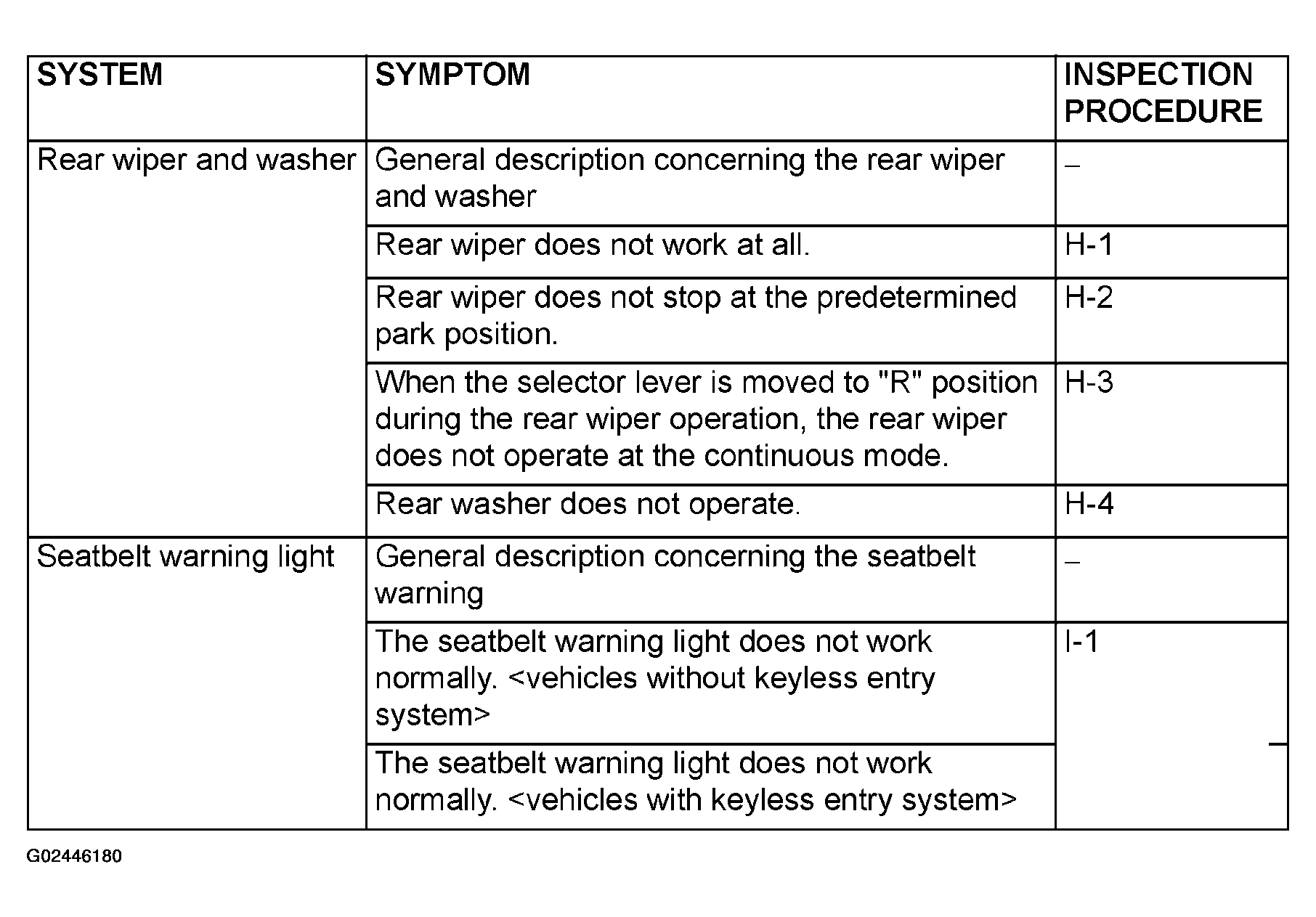

Fig 5: Symptom Chart (5 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
