Ignition Switch Continuity Check

Disconnect ignition switch connector C-87 without removing the ignition switch and steering lock cylinder. Then check the continuity.

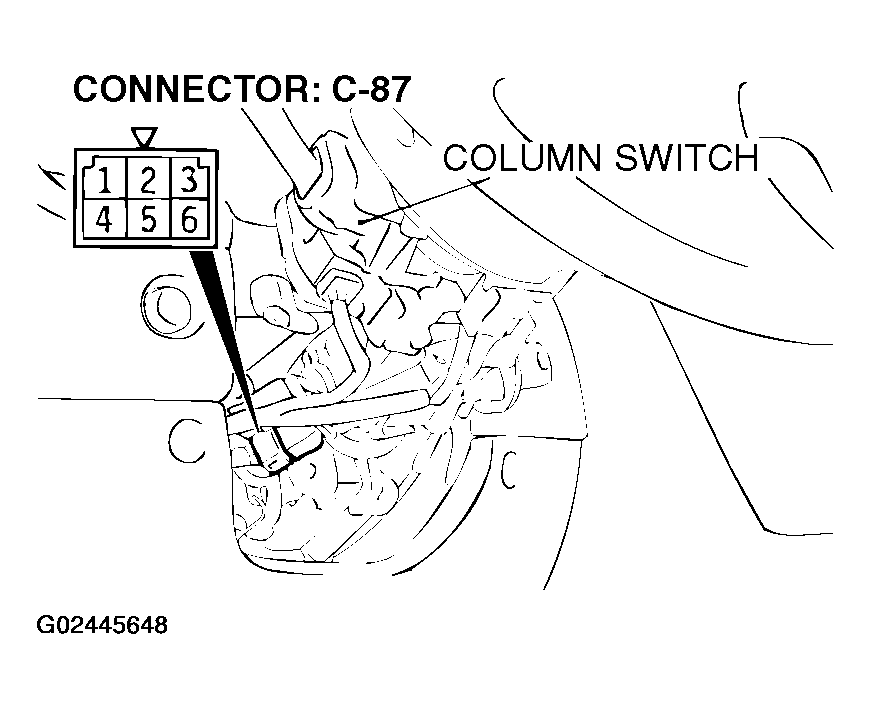

Fig 1: Checking Ignition Switch Connector C-87 Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

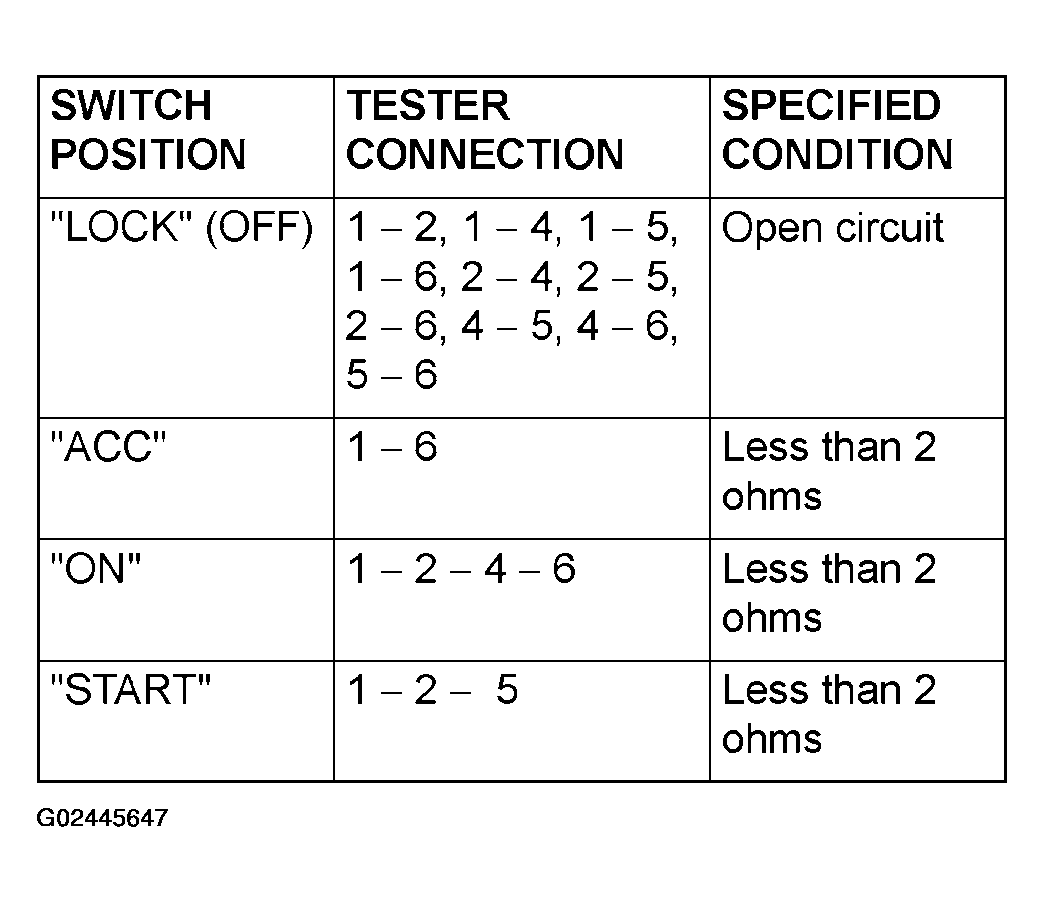

Fig 2: Identifying Switch Position Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
