DTC 15: Auto-cruise Control Switch System: Notes

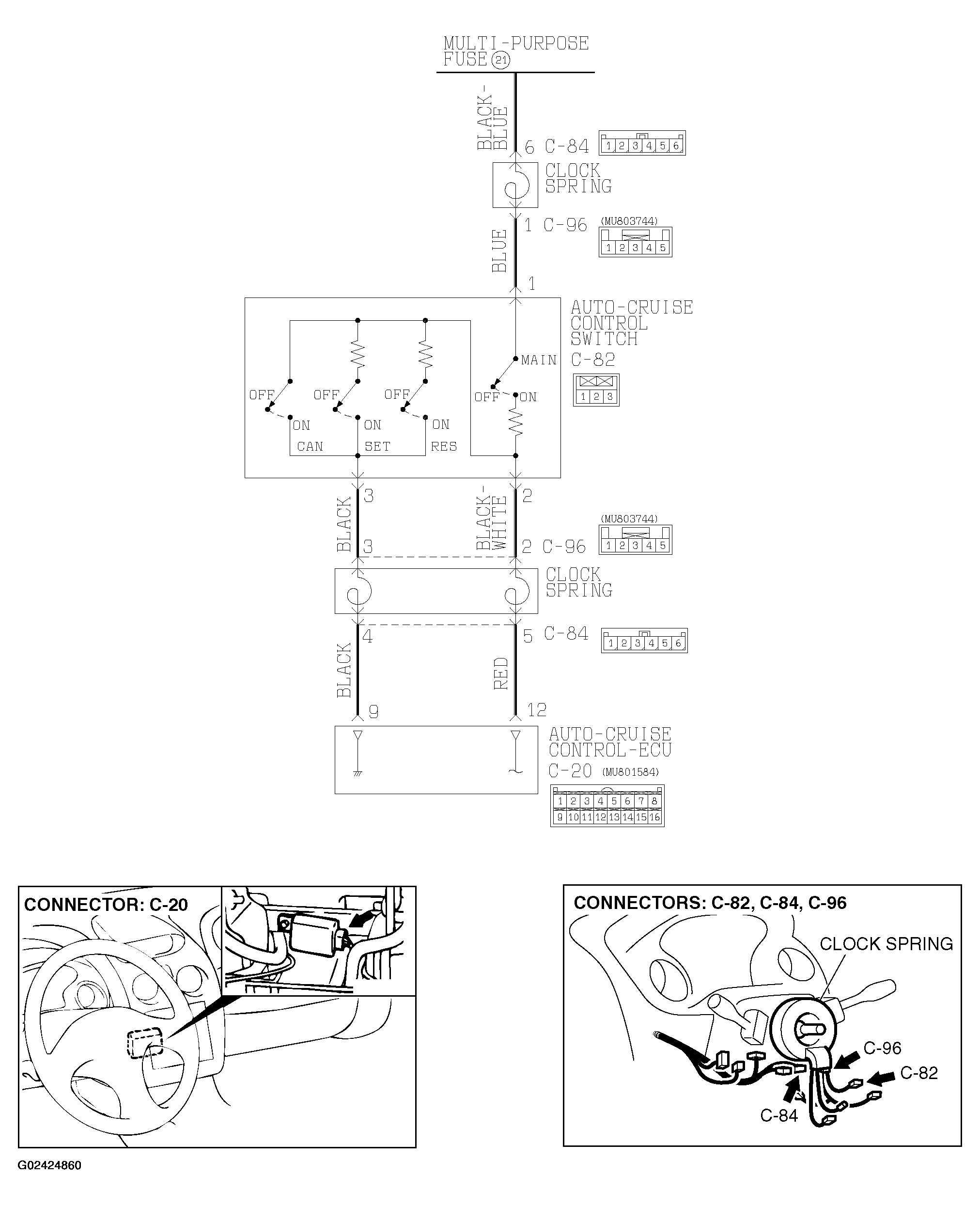

Fig 1: Auto-Cruise Control Switch System - Circuit Diagram & Connector Identification

G02424860

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
