Side Impact Sensor

NOTE: The illustration at left shows the side impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.

Check that there is no bending or corrosion in the center pillar.
Check that there is no denting, breakage or bending of the side impact sensor.
Check that there is no clamping of the harness, connector damage or bent terminals.

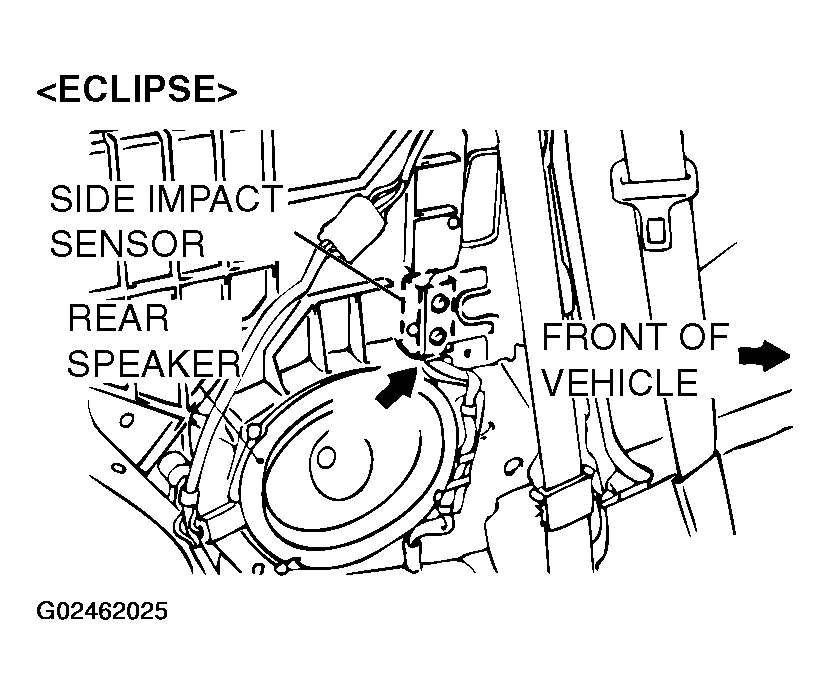

Fig 1: Identifying Side Impact Sensor (ECLIPSE)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

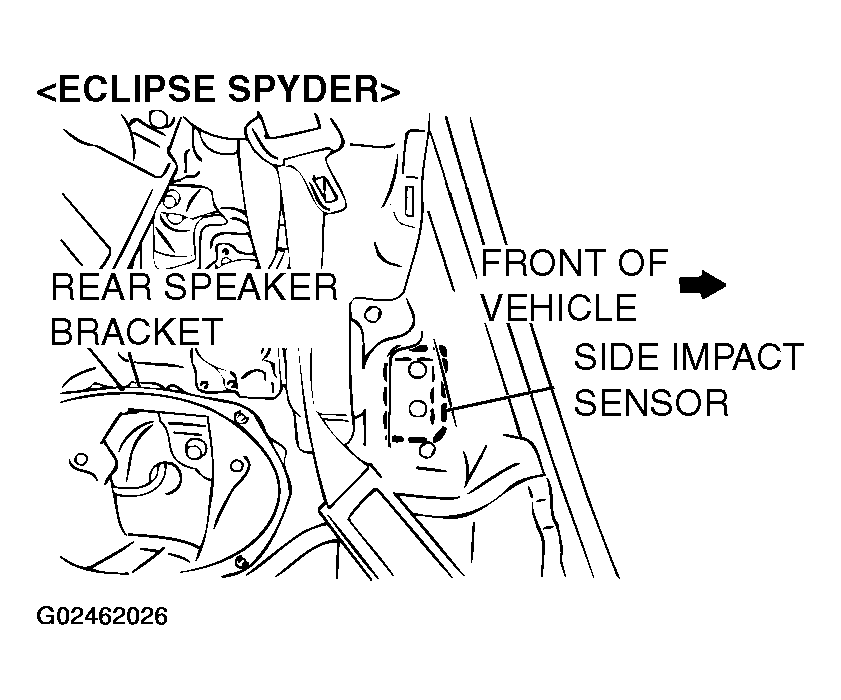

Fig 2: Identifying Side Impact Sensor (ECLIPSE SPYDER)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
