DTC 26: Stoplight Switch System: Notes

WARNING: This page is about a different variant/trim than selected.

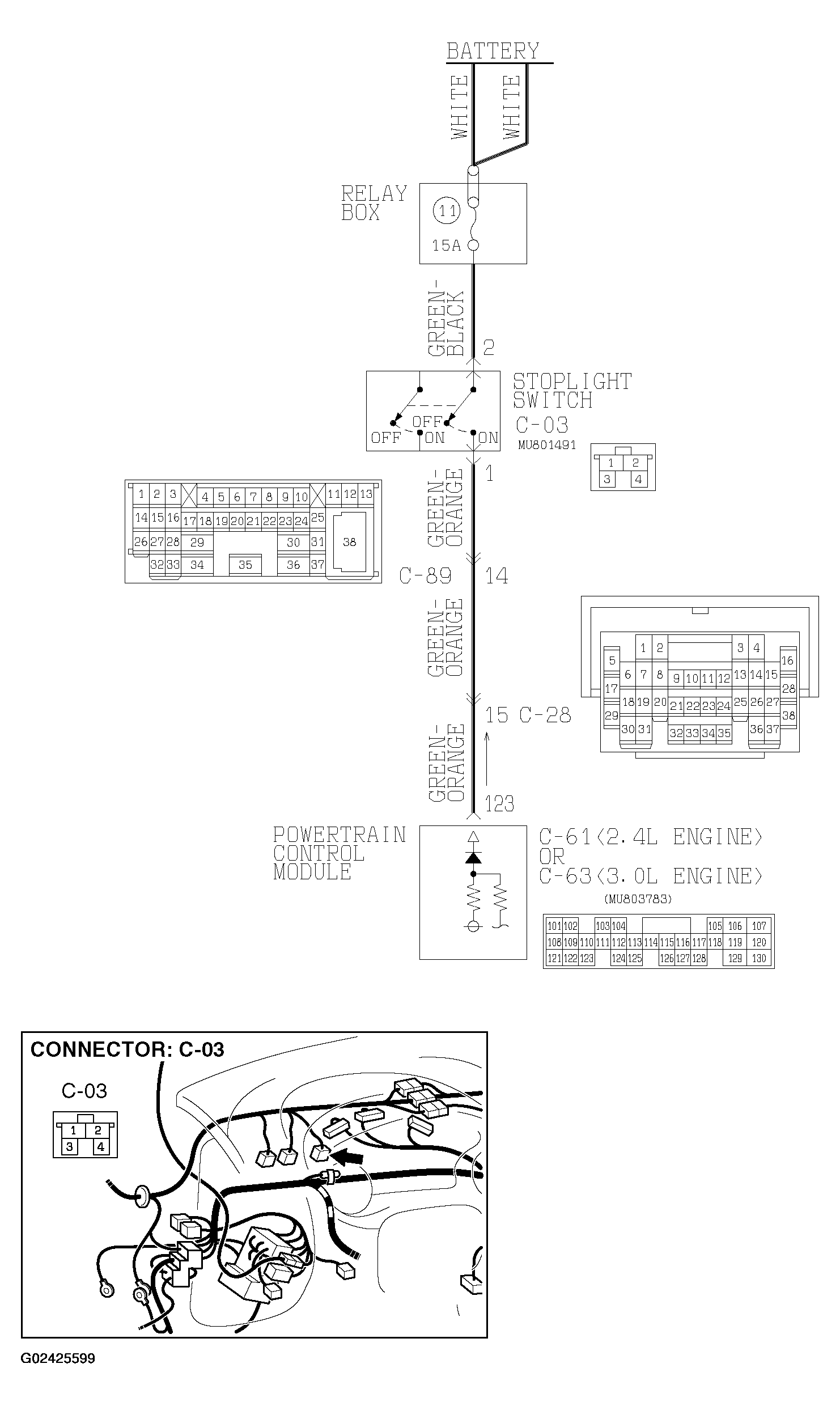

Fig 1: Stoplight Switch System Circuit Diagram & Connector Identification (1 Of 2)
G02425599Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

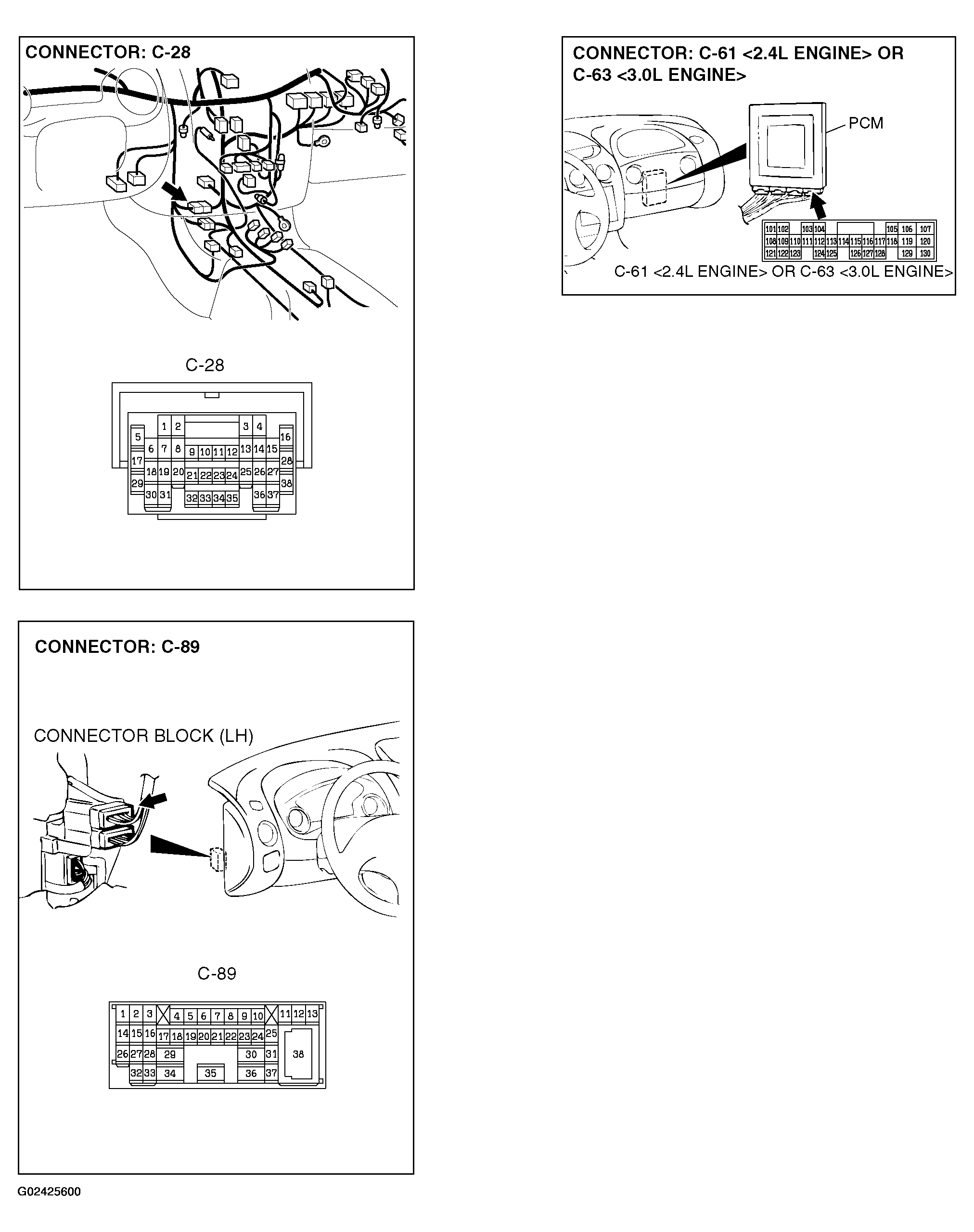

Fig 2: Stoplight Switch System Circuit Diagram & Connector Identification (2 Of 2)
G02425600Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
