Toothed Abs Rotor Check

Check whether the ABS rotor teeth are broken or deformed. Replace the driveshaft assembly for the front side, or the ABS rotor for the rear side, respectively, if the teeth are damaged or deformed.

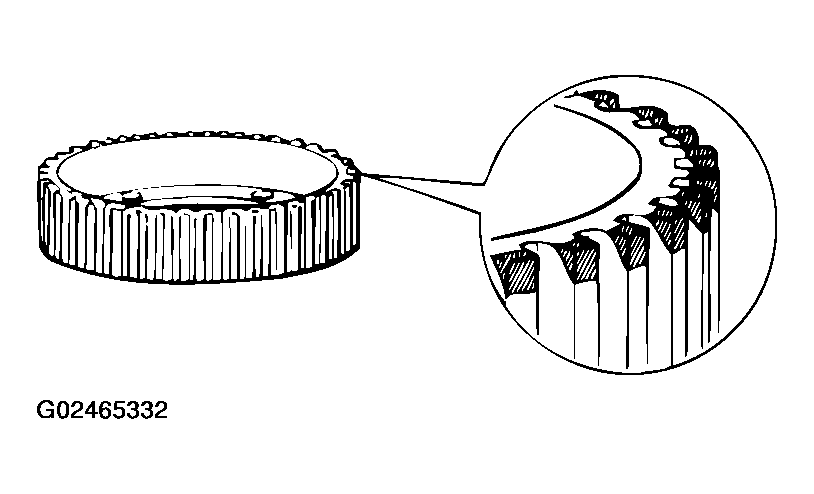

Fig 1: Checking ABS Rotor Teeth

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
