Notes
Disassembly And Assembly: Notes
CAUTION:
Do not disassemble the primary and secondary piston assemblies.

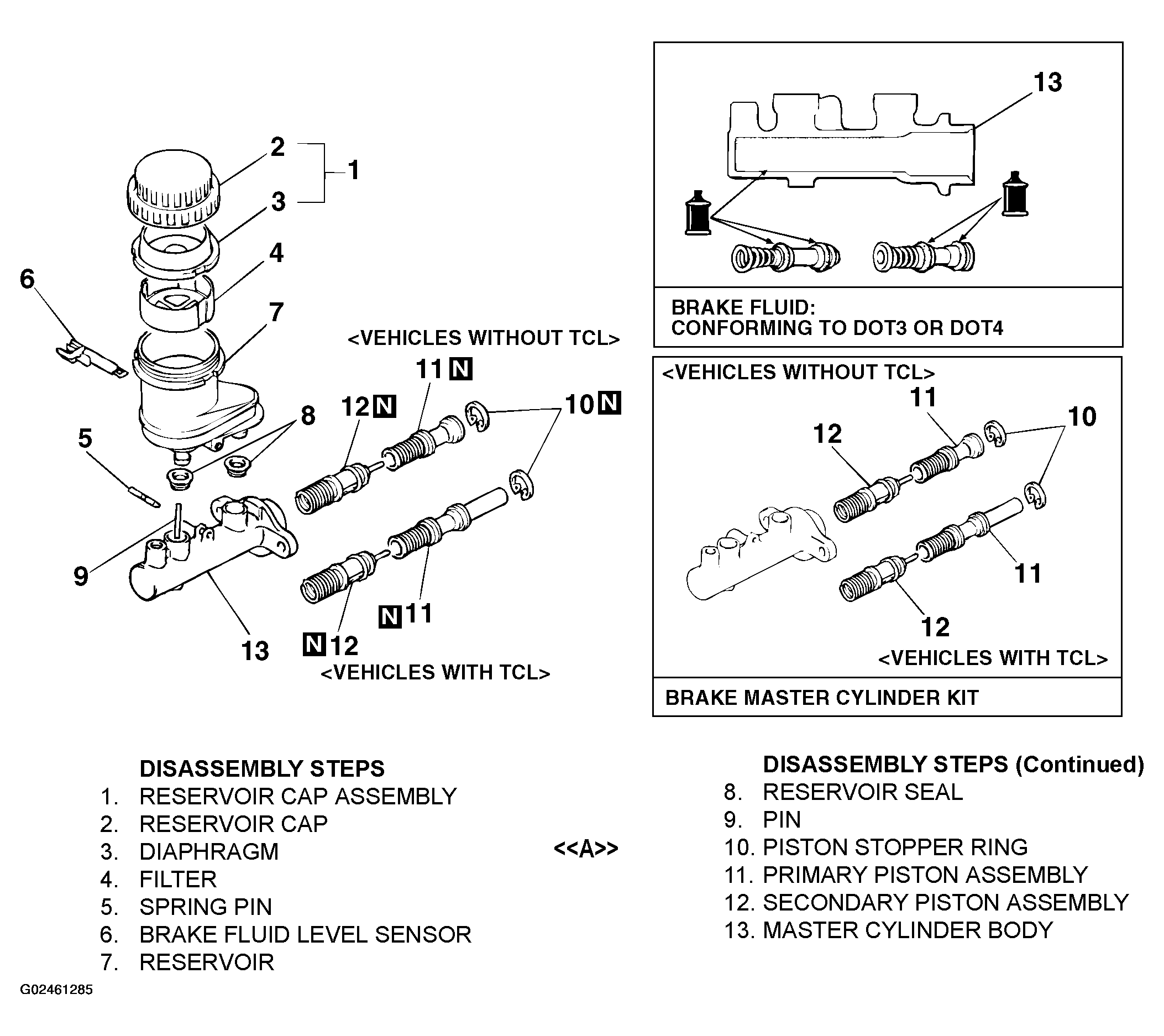

Fig 1: Removing Master Cylinder Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
