Rear Window Defogger Switch

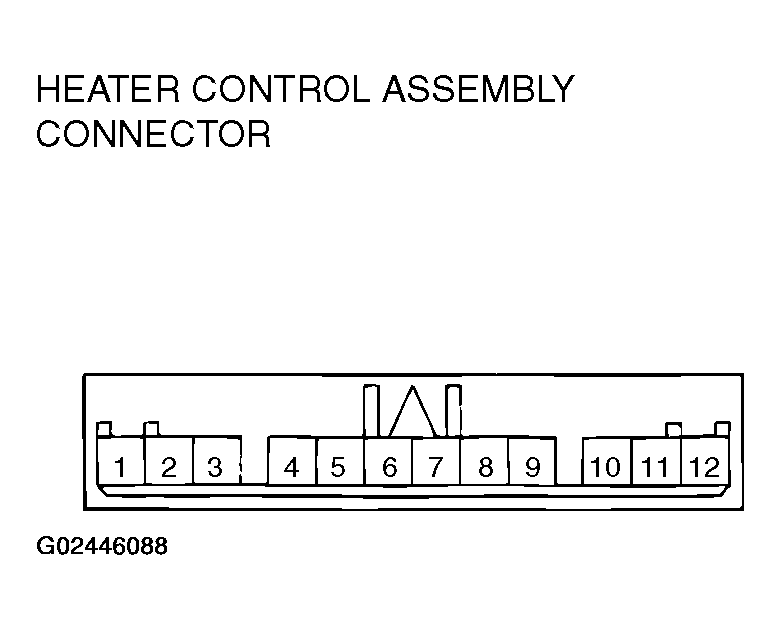

Fig 1: Identifying Heater Assembly Connector
G02446088Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SWITCH POSITION VALUE CHART

SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
OFF 11 - 12 Open circuit
ON 11 - 12 Less than 2 ohms
