Disassembly And Assembly: Notes

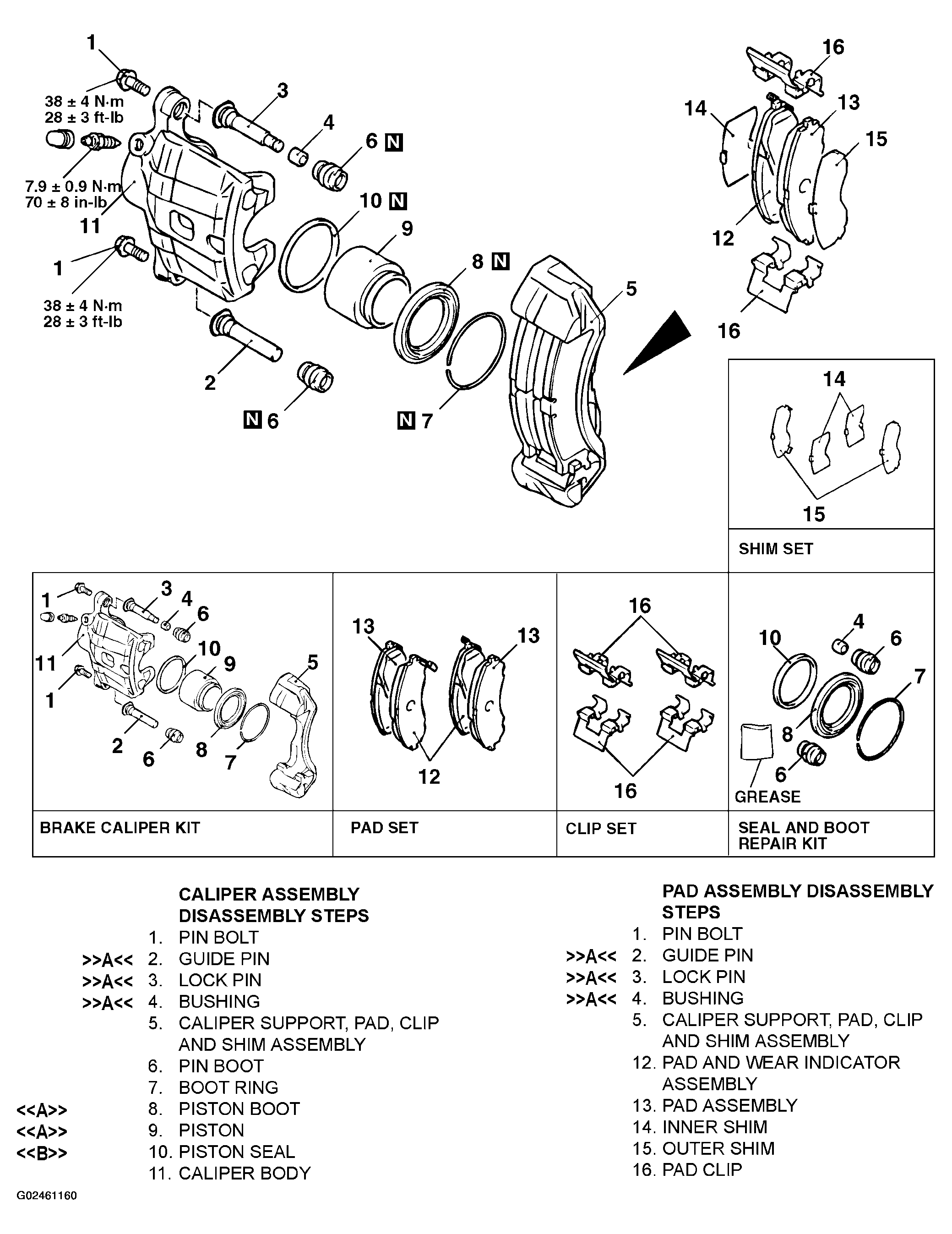

Fig 1: Disassembling/Assembling Front Disc Brake Assembly

G02461160

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
