Front Seat Back Assembly (Side-Airbag Module)

  1. Check air bag module deployment section for dents or deformation.
  2. Check that there is no connector damage, bent terminals or clamping of the harness.

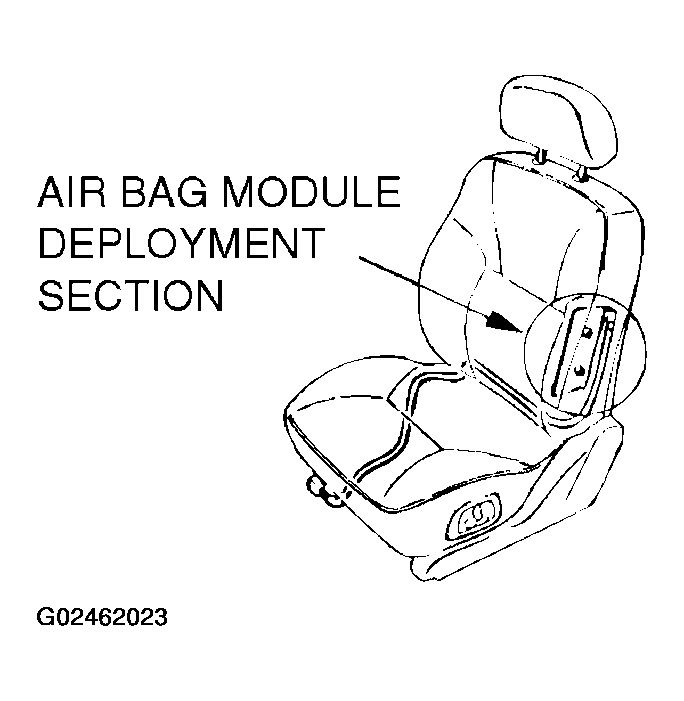

    Fig 1: Identifying Air Bag Module Deployment Section
    G02462023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
