DTC 42: IG1 Power Circuit System (Fuse No.22 Circuit): Notes

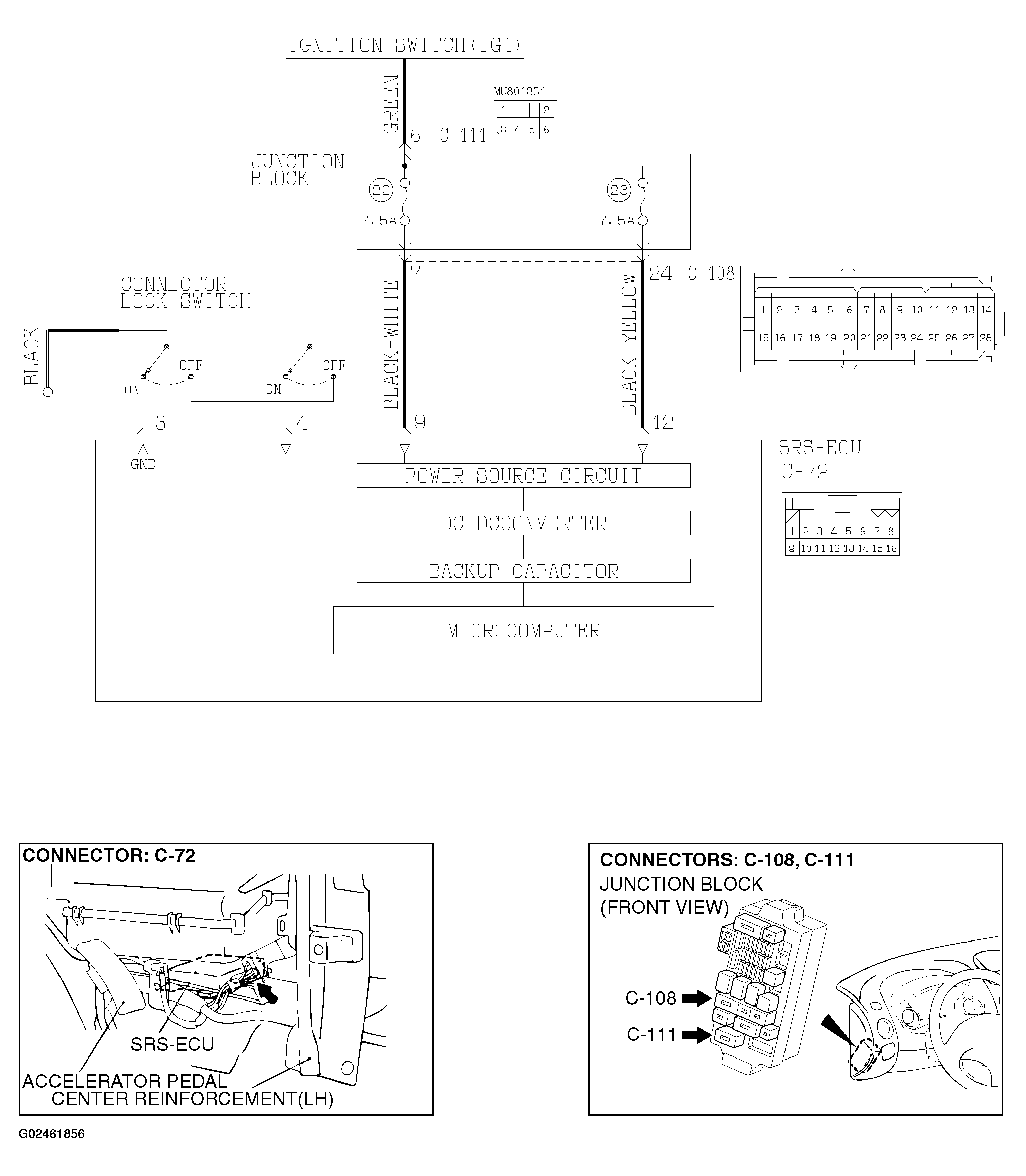

Fig 1: IG1 Power Circuit System (Fuse No.22) Circuit Diagram & Connector Identification

G02461856

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
